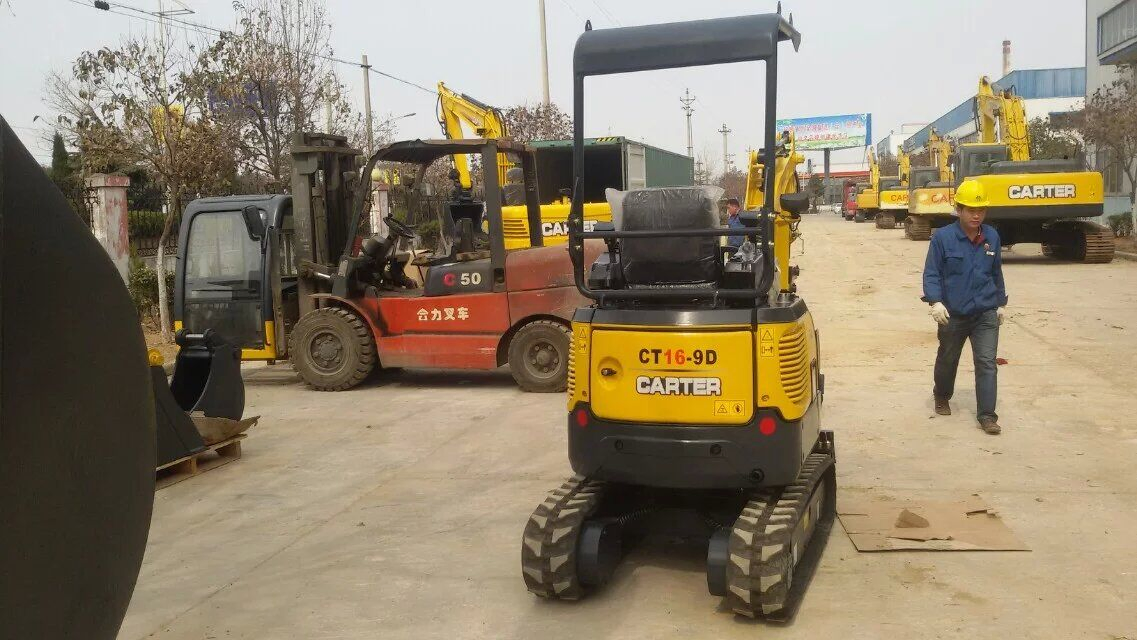

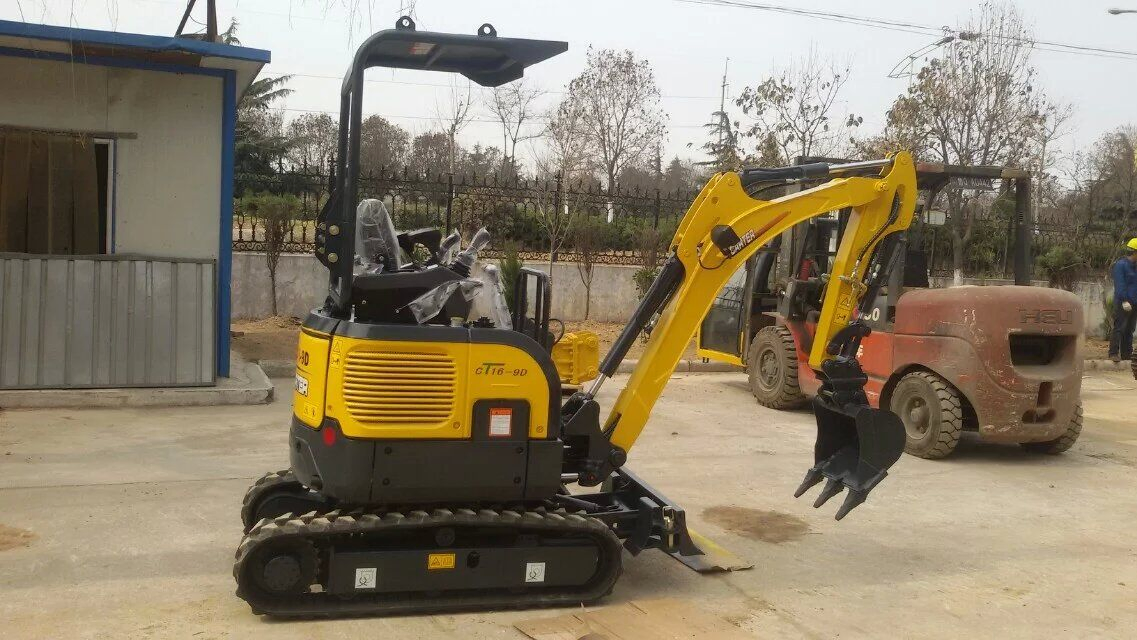

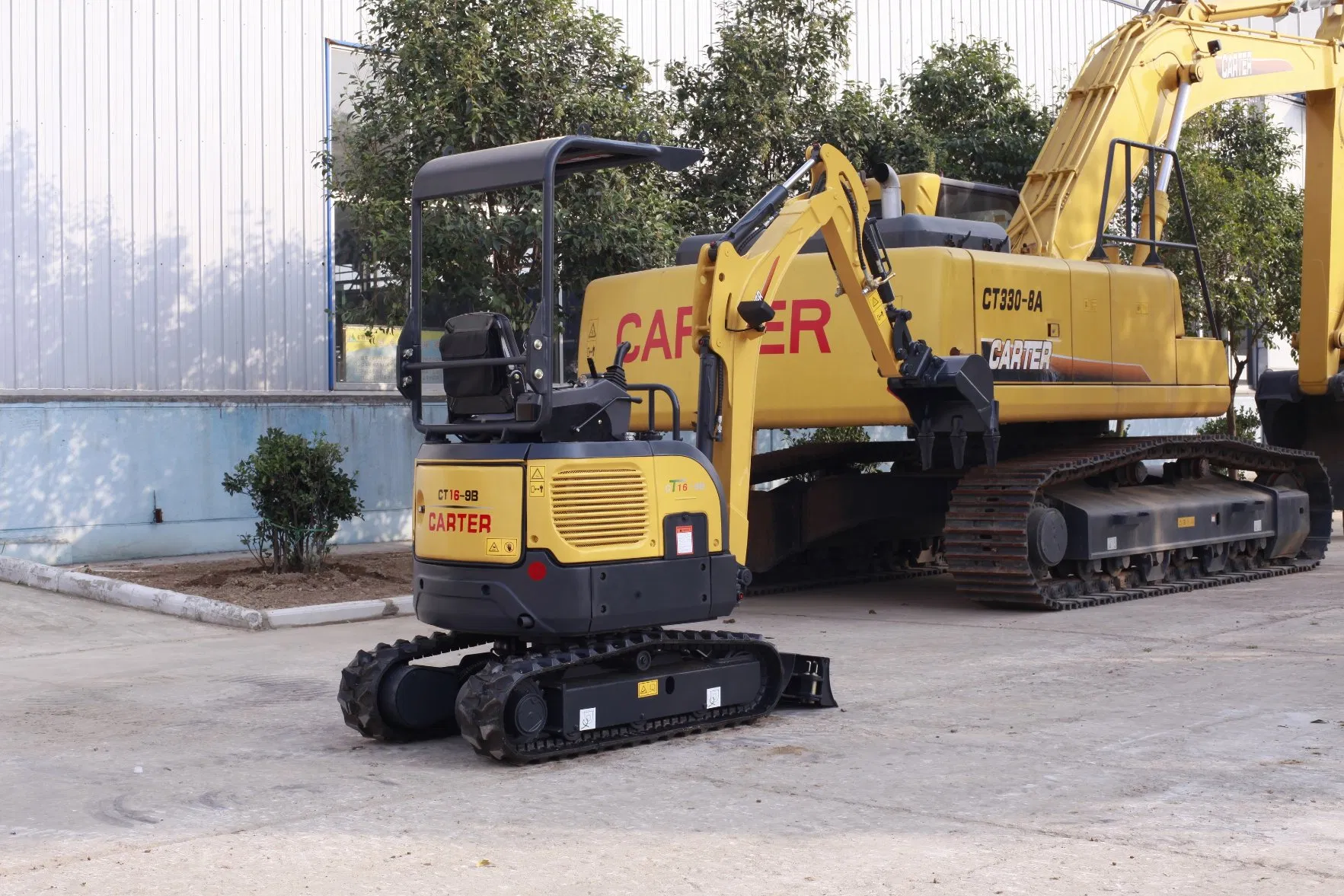

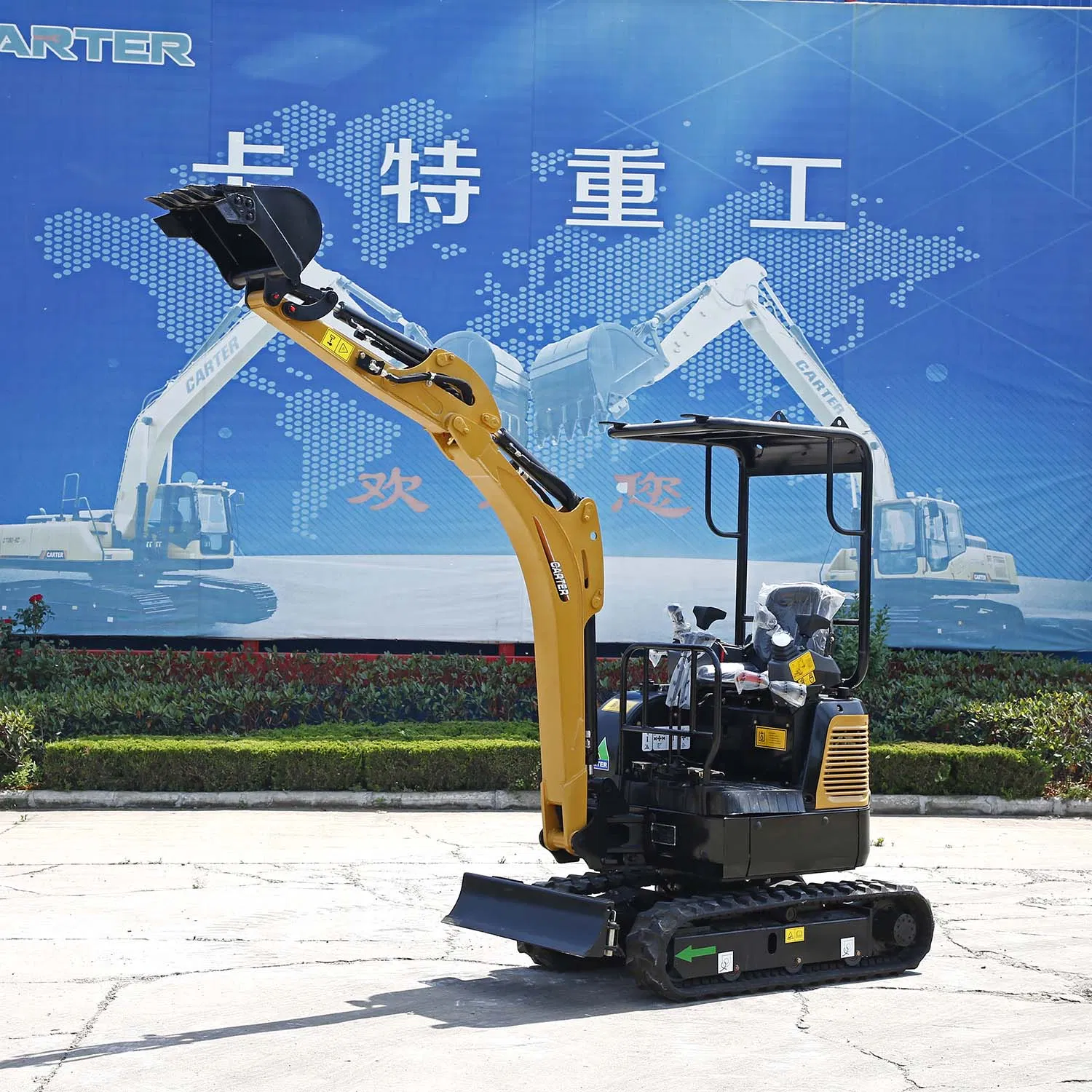

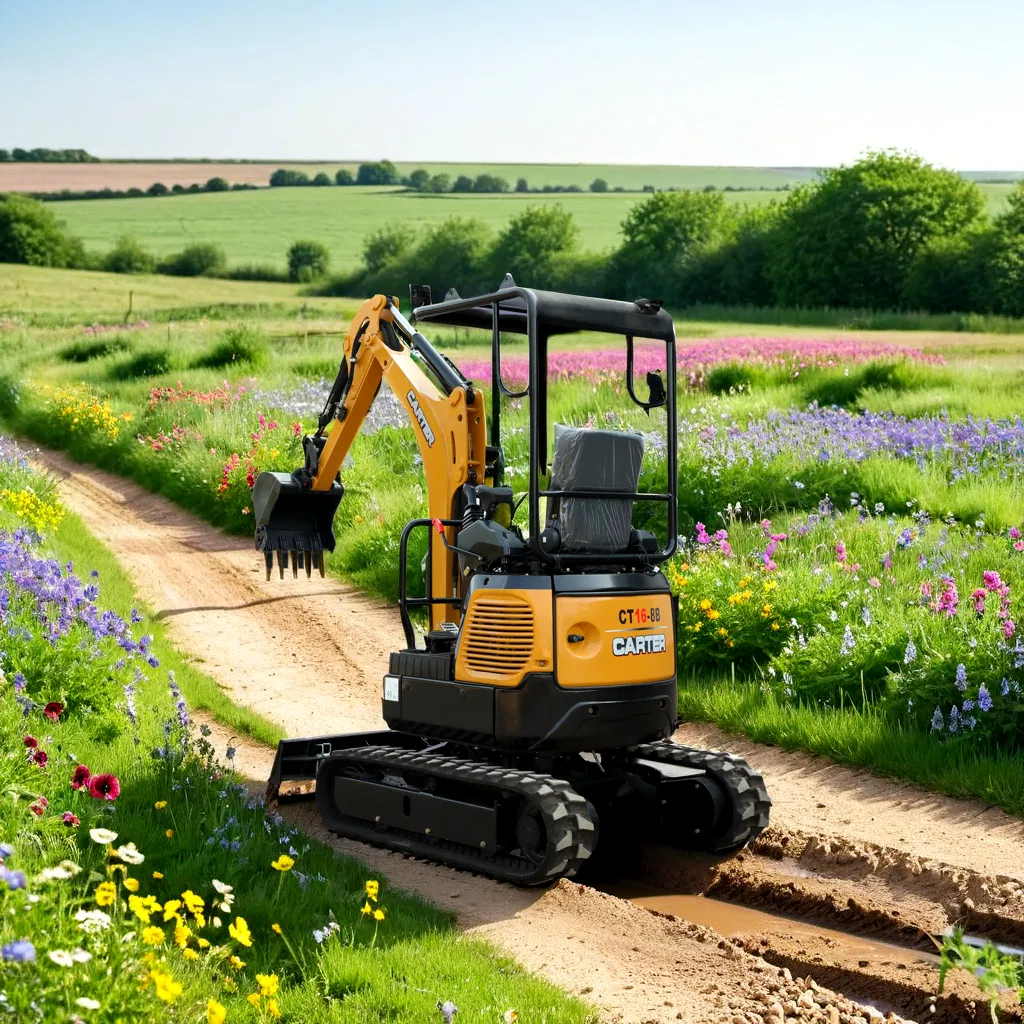

CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
1 / 5
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator
CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator

CT16-9b with Retractable Chassis&Rubber Tracks&Swing Boom Mini Excavator

Customization: Available
Type: Crawler Excavator
Usage: GM Excavator
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
CT16-9BP
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.028-0.095m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Counter Weight Clearance
507mm
Grade Ability
58%
Swing Speed
8.8 Rpm
Tail Swing Radius
660mm
Track Gauge (Ext.)
740mm - 1090mm
Track Shoe Width
230mm
Frame Width
1000mm
Operating Weight
1700kg
Ground Clearance
192mm
Track Width (Ext.)
970mm - 1320mm
HS Code
8429521200
Production Capacity
600 PCS/Year
📄 Product Specifications
Boom length: 1829mm
Arm length: 950mm
Max. digging depth: 2033mm
Max. digging height: 3281mm
Max. digging distance: 3941mm
Max. dumping height: 2393mm
Max. vertical digging depth: 1605mm
Max. swing radius: 1625mm
Engine System Travel System
Model Yanmar 3TNV70 Travel motors Eaton, USA
Type Direct injection, water cooled Travel speed 2.7/5.0 (km/h)
Cylinders 3 Pulling force 11.7kN
Power Output 10kw / 2200rpm Gradeability 58% (30°)
Hydraulic System Refilling Capacity
Pump CASAPPA, Italy Fuel tank 28L
Main Valves Hydro Control, Italy Hydraulic tank 17.5L / 24L System
Swing Motor Eaton, USA Engine oil 4.4L
📸 Product Display

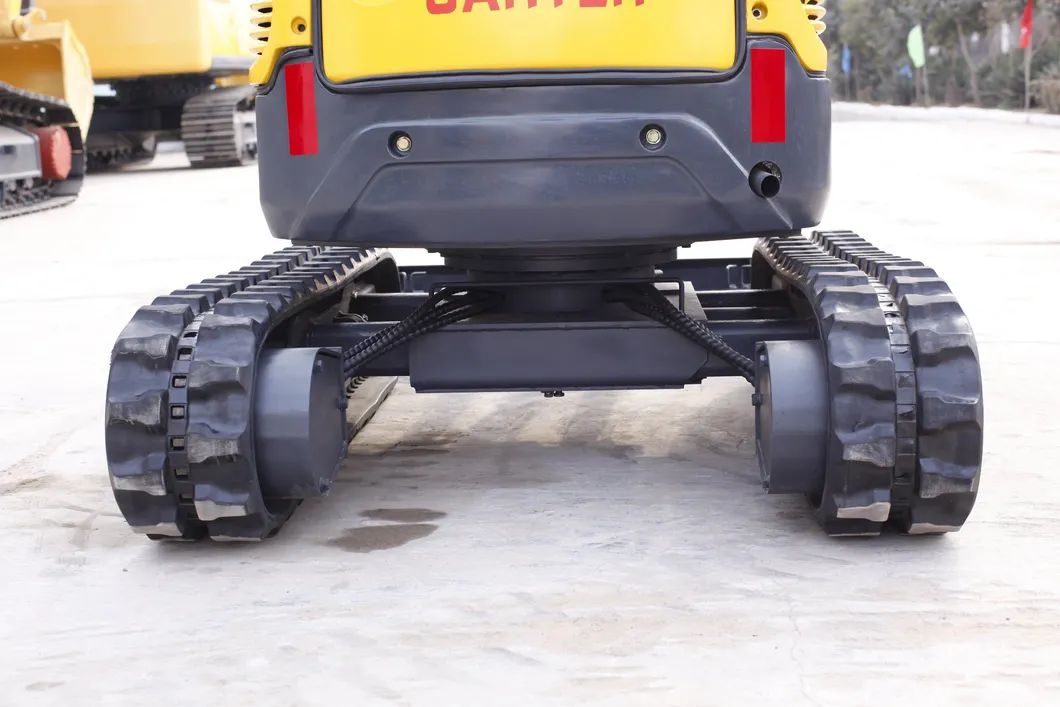

Mini Excavator View 1

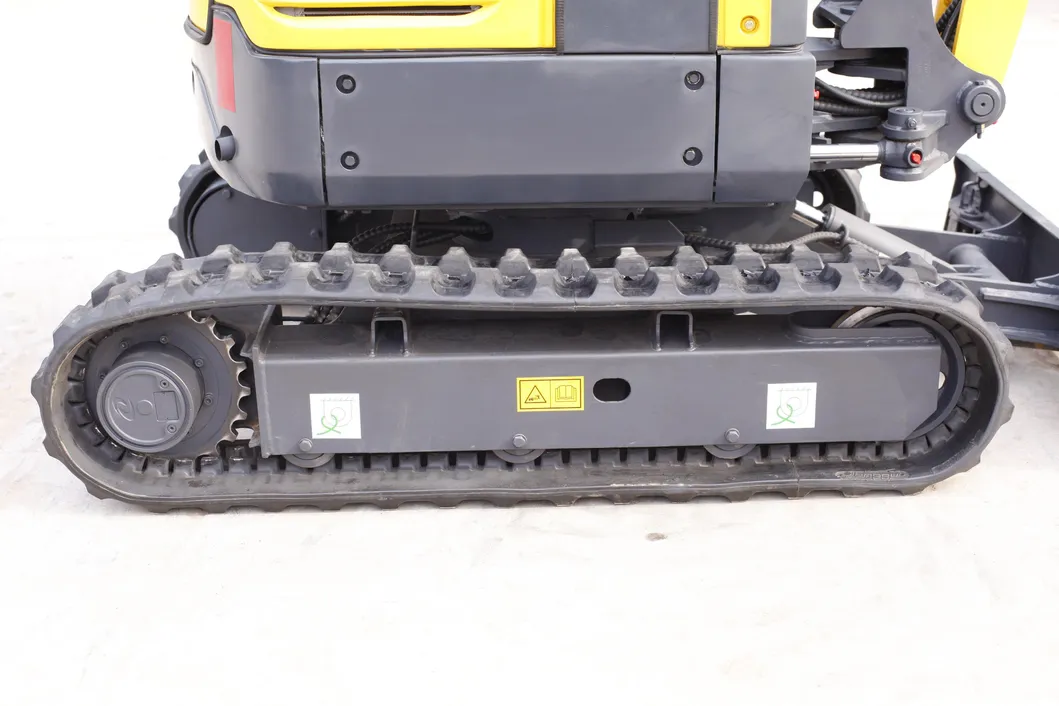

Mini Excavator View 2

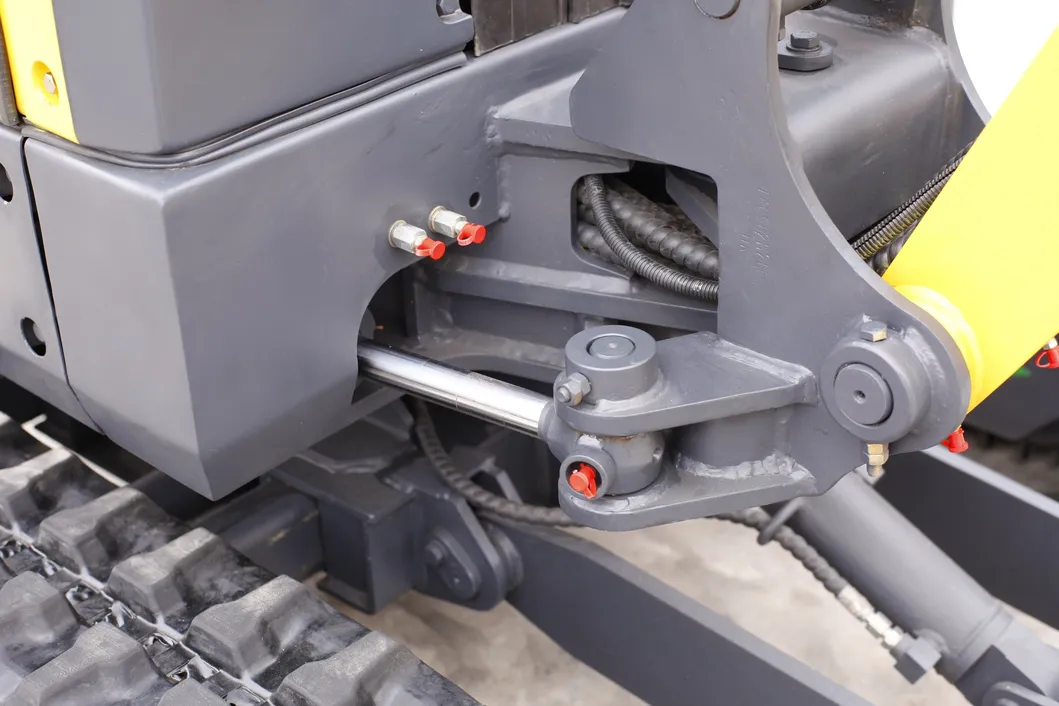

Mini Excavator View 3

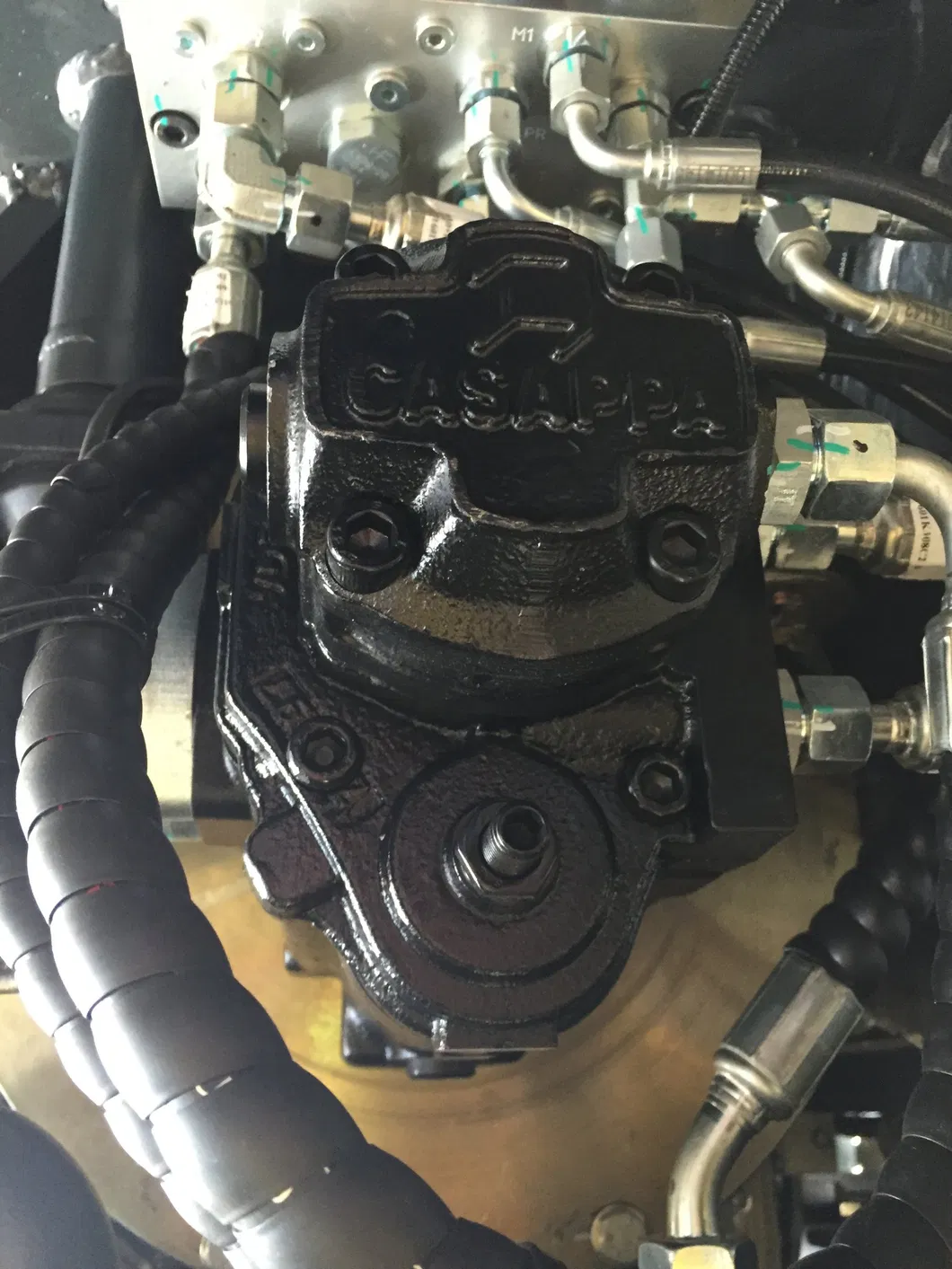

Mini Excavator Vertical View

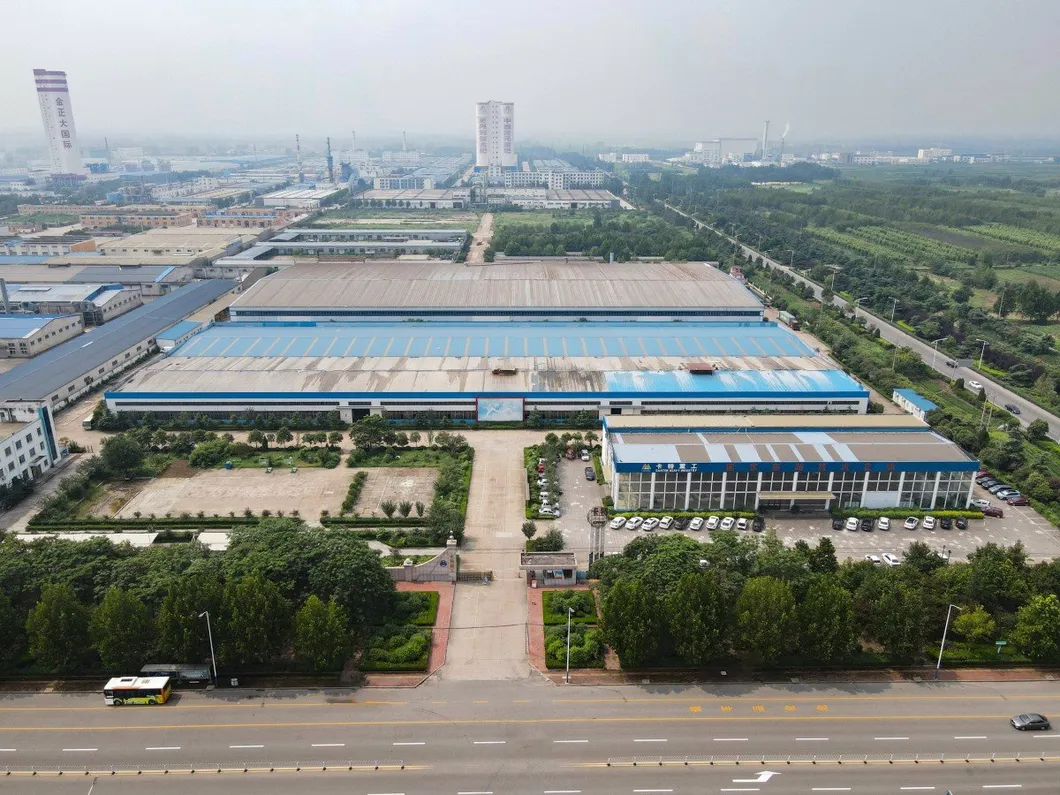

Mini Excavator Details 1

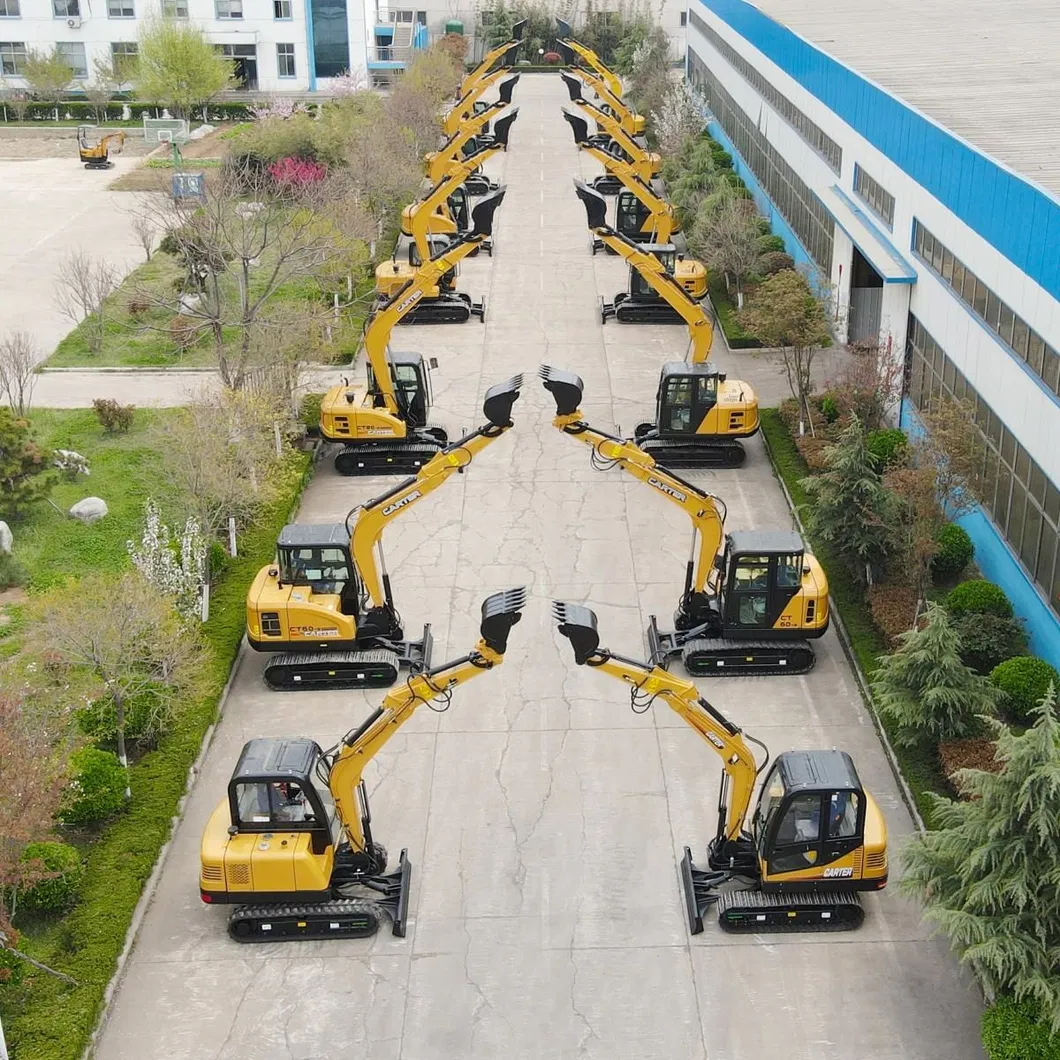

Mini Excavator Details 2
❓ Frequently Asked Questions
What is the operating weight of the CT16-9B?
The operating weight is 1700kg, making it ideal for small-scale projects and easy transportation.
Which engine is used in this mini excavator?
It is powered by a high-performance Yanmar 3TNV70 direct injection, water-cooled engine.
What is the maximum digging depth?
The machine can reach a maximum digging depth of 2033mm.
Does this model have a retractable chassis?
Yes, the track gauge can extend from 740mm to 1090mm for enhanced stability during operation.
What hydraulic components are installed?
The unit features premium components including a CASAPPA pump from Italy and Eaton travel motors from the USA.
What certifications does the product hold?
This excavator is fully certified with CE and ISO9001:2000 standards.
