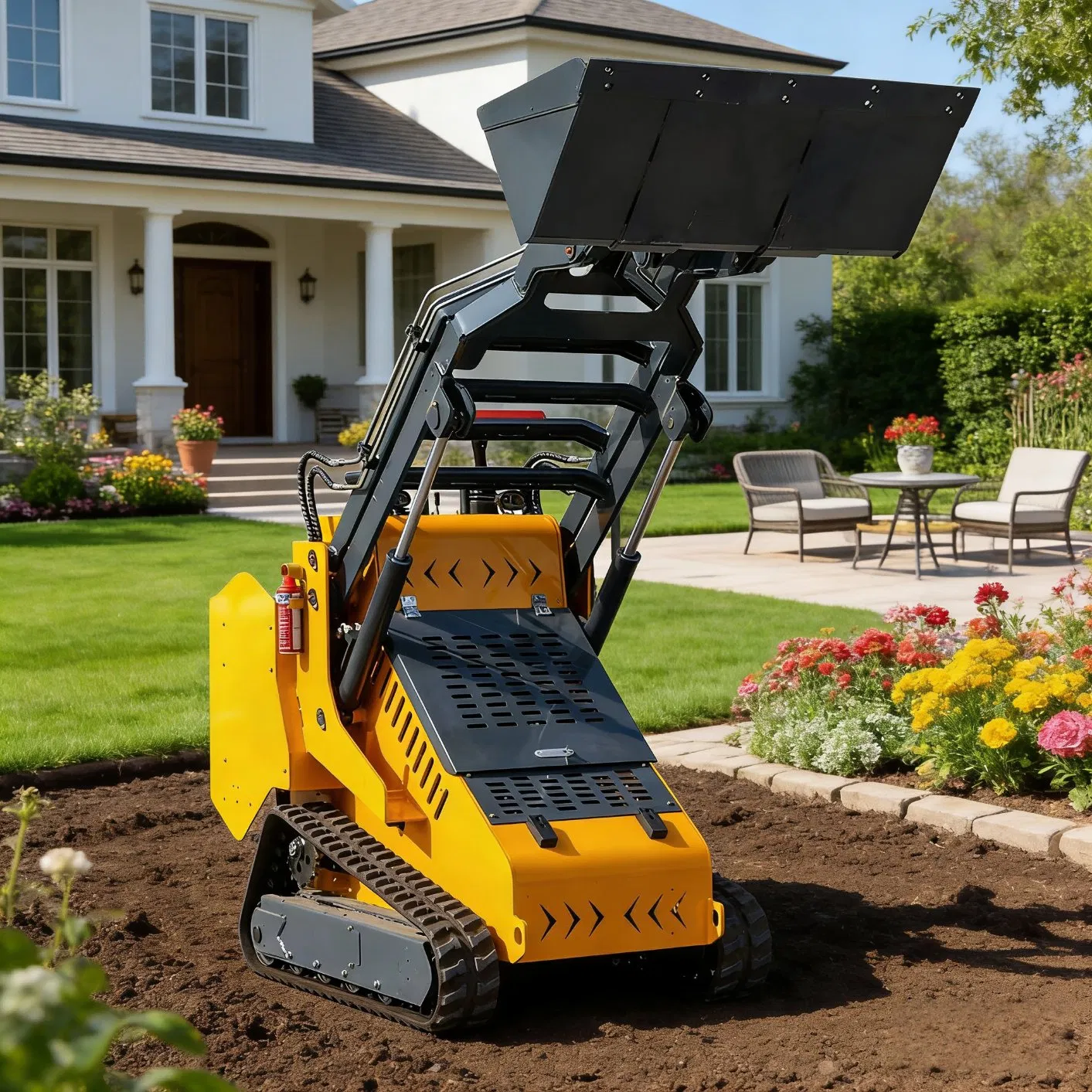

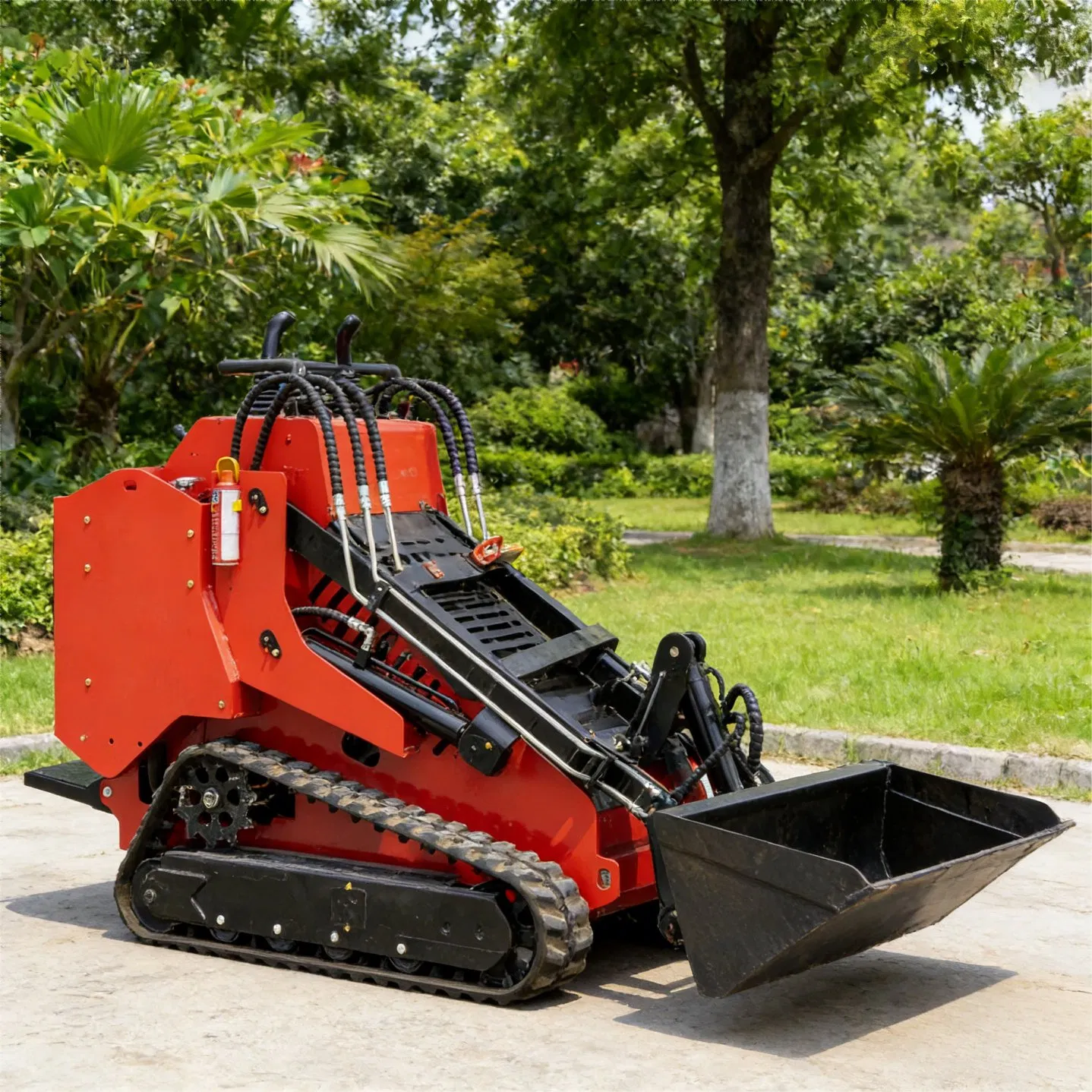

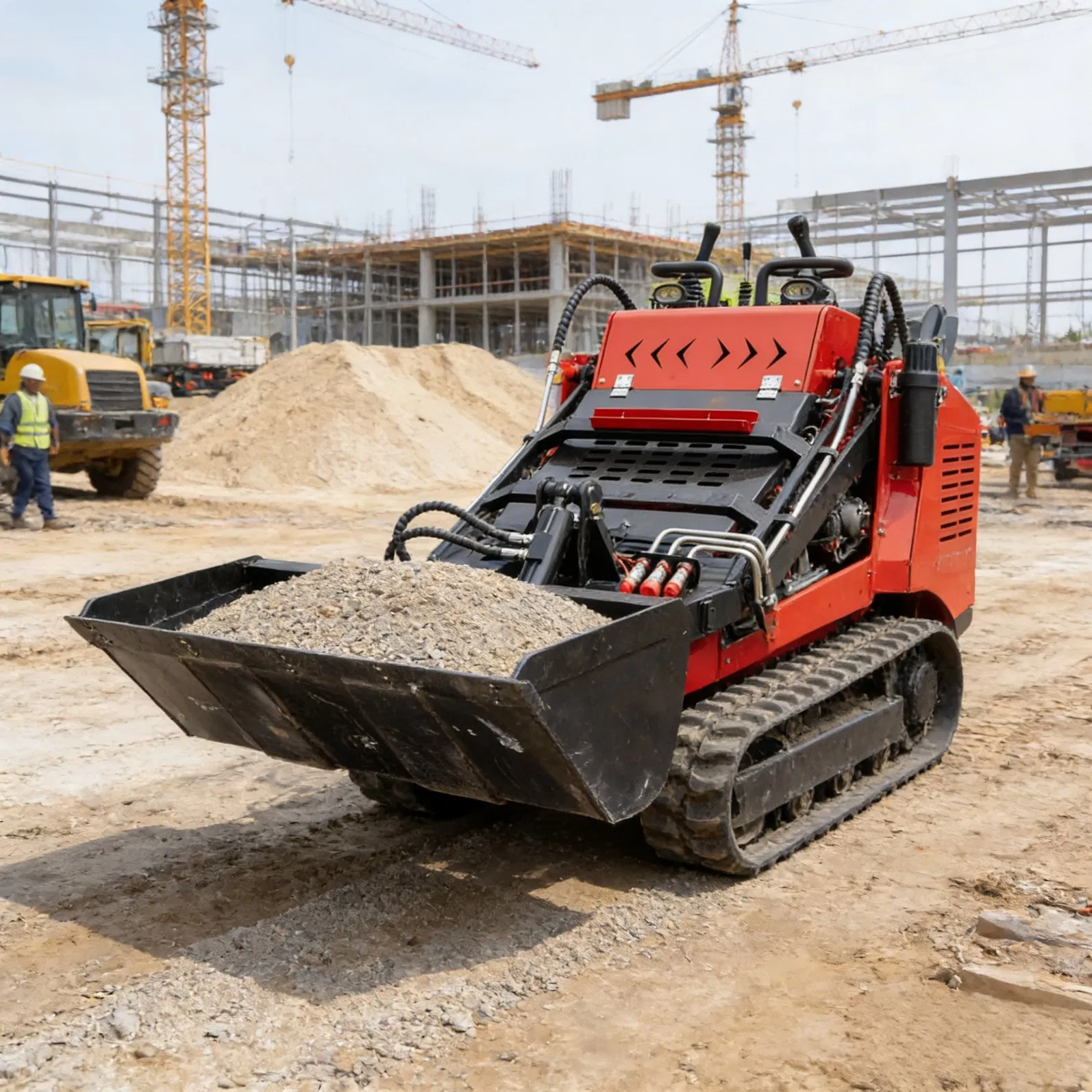

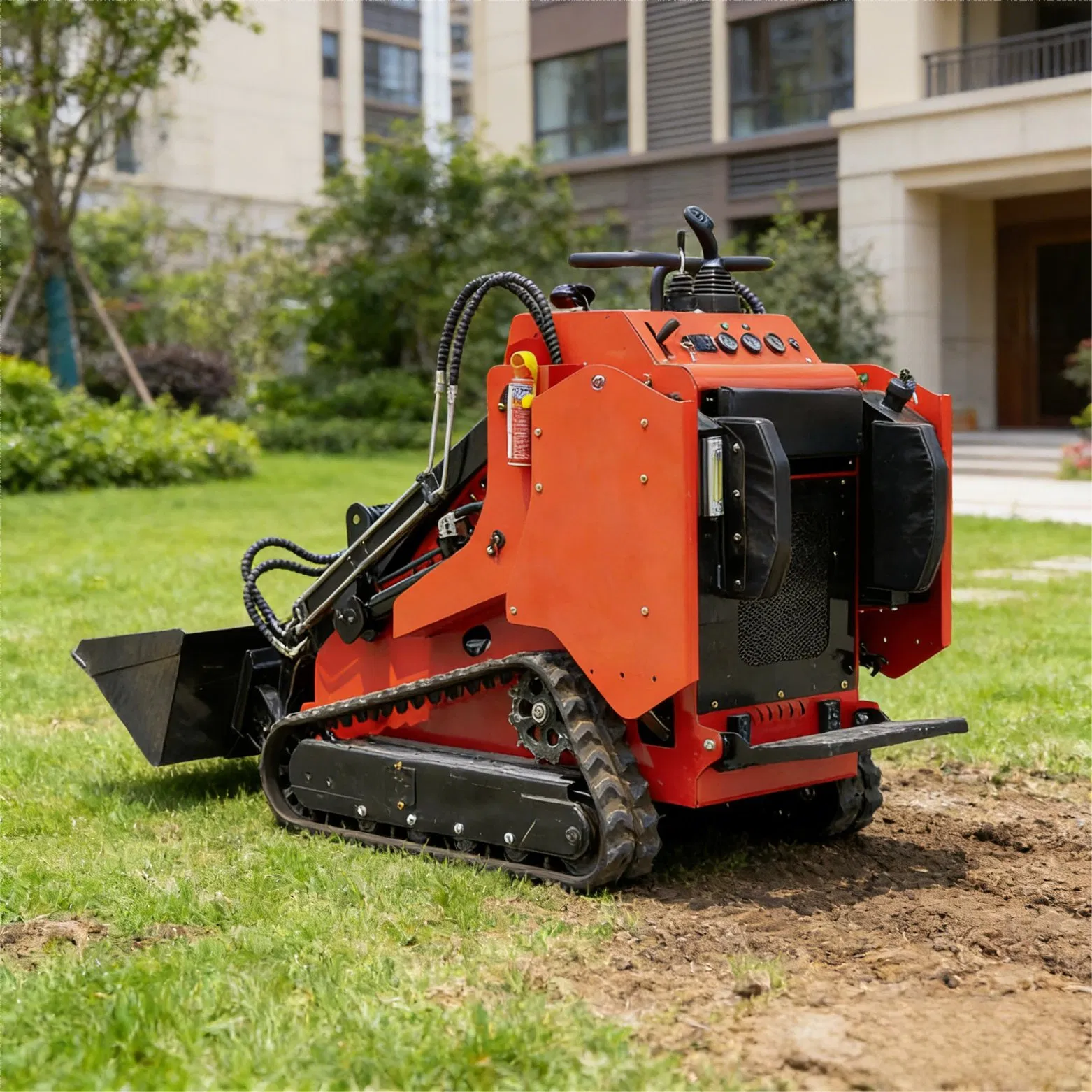

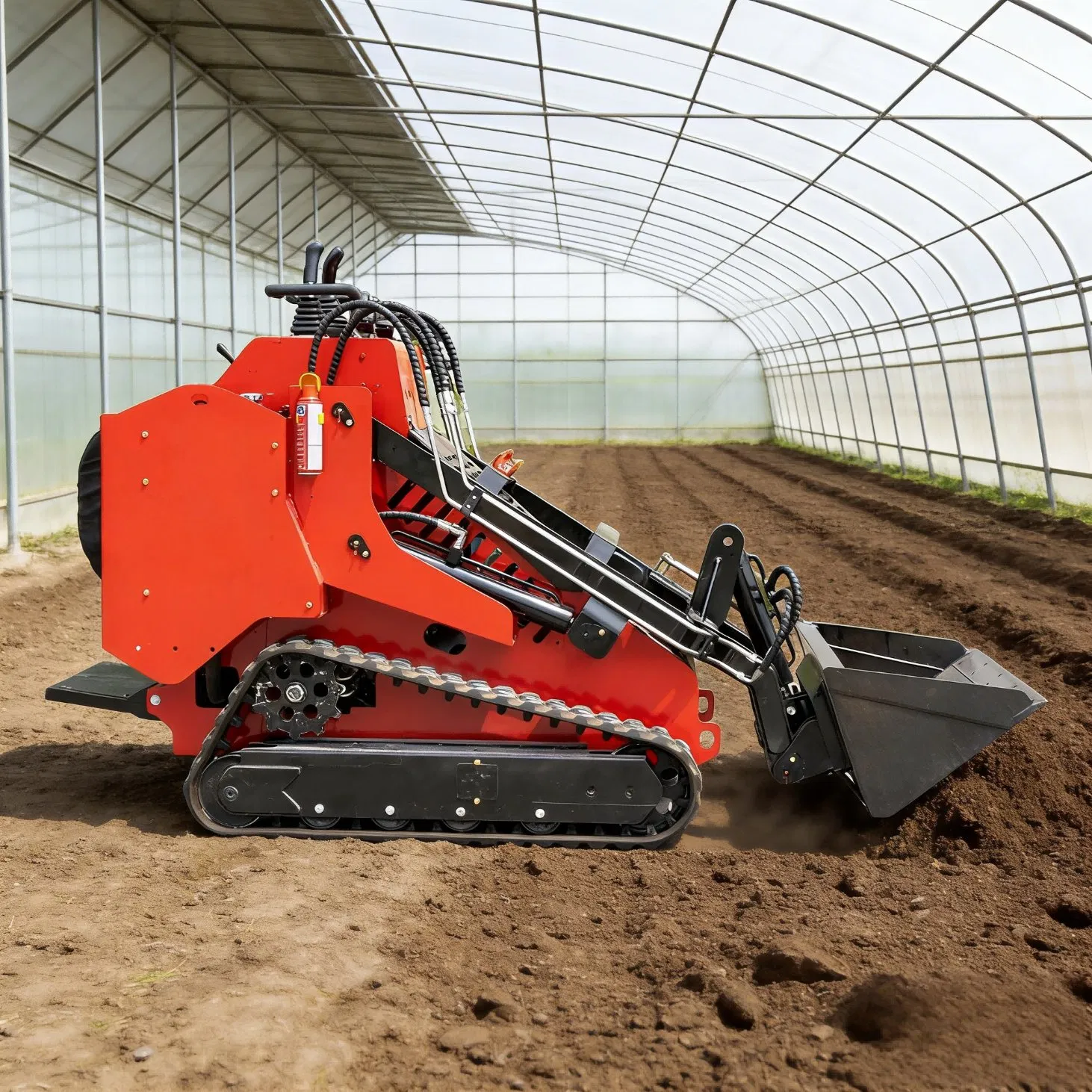

ML-mini loader: Ultimate Compact Power

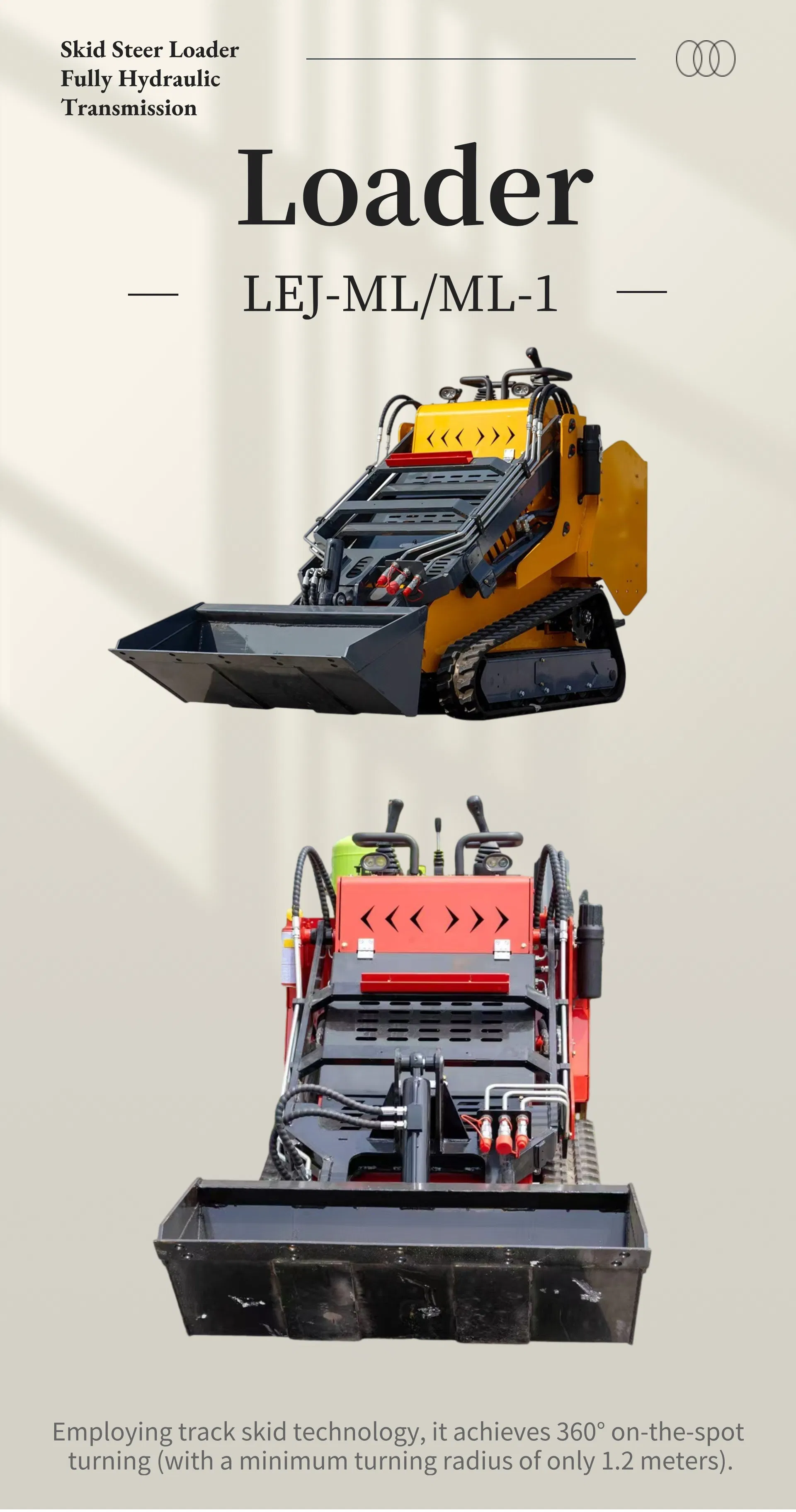

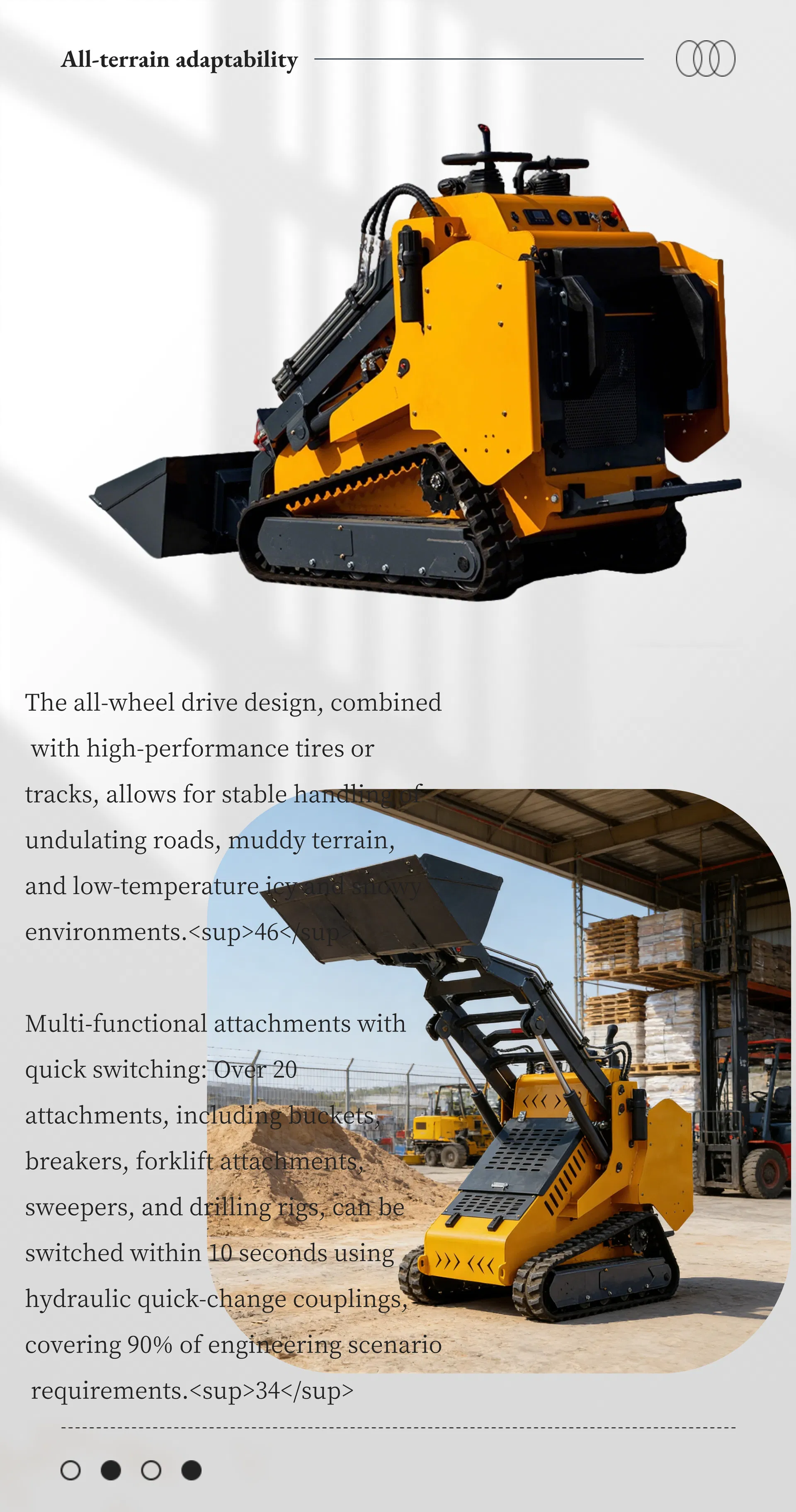

Engineered for exceptional maneuverability, the ML-mini loader utilizes advanced track skid technology to achieve 360° on-the-spot turning with a minimum radius of just 1.2 meters, making it ideal for operations in confined spaces. This loader boasts true all-terrain adaptability. Its all-wheel drive design, paired with high-performance engineering rubber tracks, ensures stable handling and a strong grip on challenging surfaces, including muddy terrain, undulating roads, and in low-temperature environments.

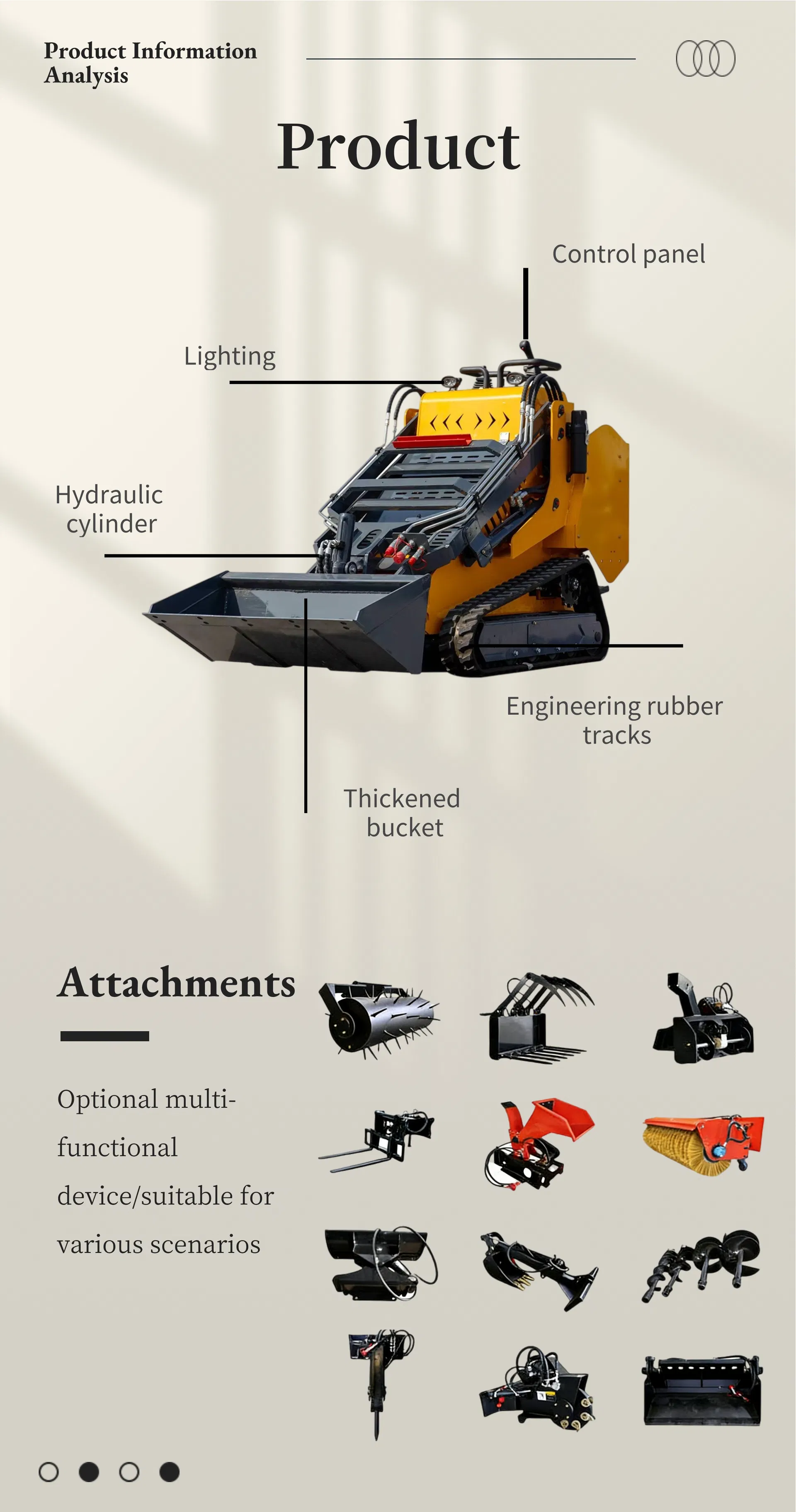

Versatility is at its core. Thanks to hydraulic quick-change couplings, operators can seamlessly switch between over 20 multi-functional attachments—such as buckets, breakers, forklifts, sweepers, and drilling rigs—in under 10 seconds. Built for durability, the machine features a thickened bucket and wear-resistant, anti-slip rubber tracks designed for a long service life. Powered by a reliable Kubota engine, it delivers consistent performance with a working load of 450 kg.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Maximum working height | 2630 mm | Speed | 3000 rpm |
| Maximum loading height | 2090 mm | Noise | 93 Db |
| Maximum unloading height | 1535 mm | Pressure | 0-17 MPa |
| Maximum tipping distance | 715 mm | Attachment Flow Rate | 0-43 L |
| Maximum unloading angle | 38 ° | Working Load | 450 kg |
| Total height | 1630 mm | Bucket capacity | 0.2 m3 |
| Ground clearance | 150 mm | Maximum Lifting Force | 530 kg |
| Total length (no bucket) | 2220 mm | Travel Speed | 0-4.5 km/h |
| Total width | 1050 mm | Operating Weight | 1330 kg |
| Bucket width | 1150 mm | Engine | Kubota engine |
