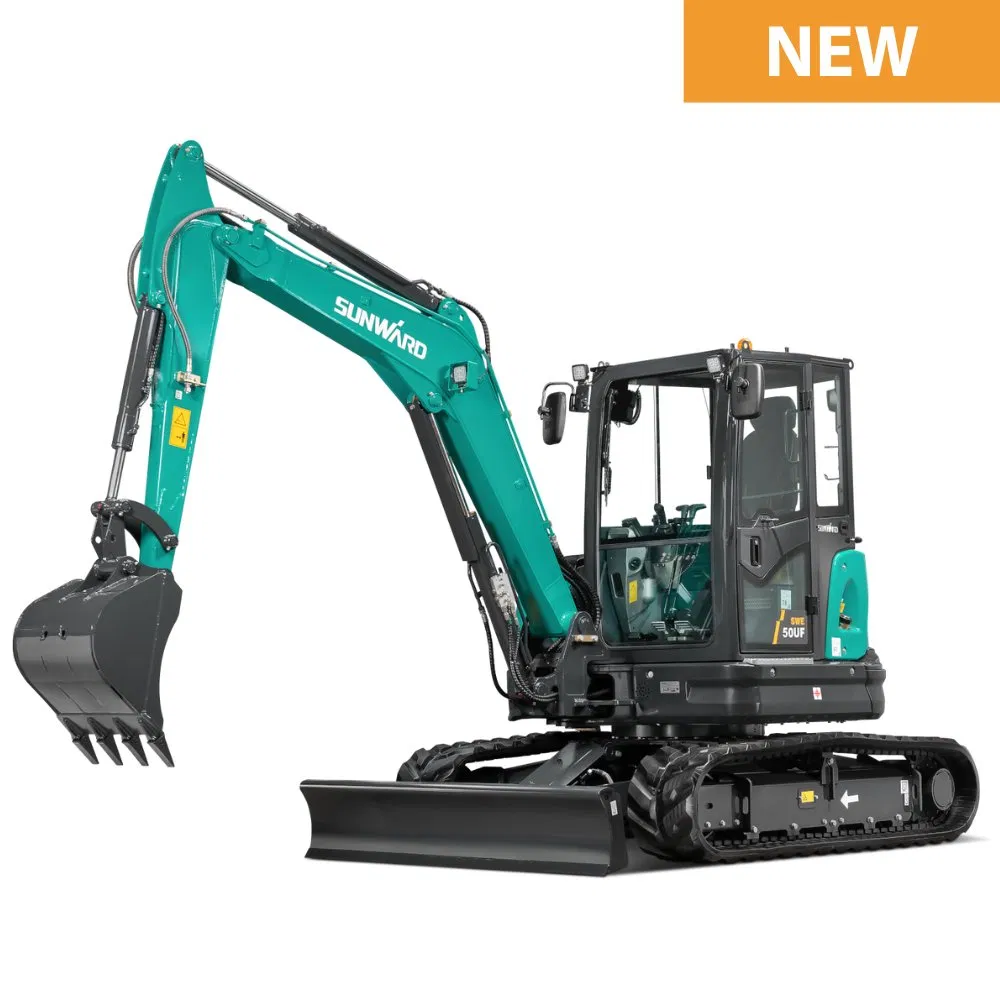

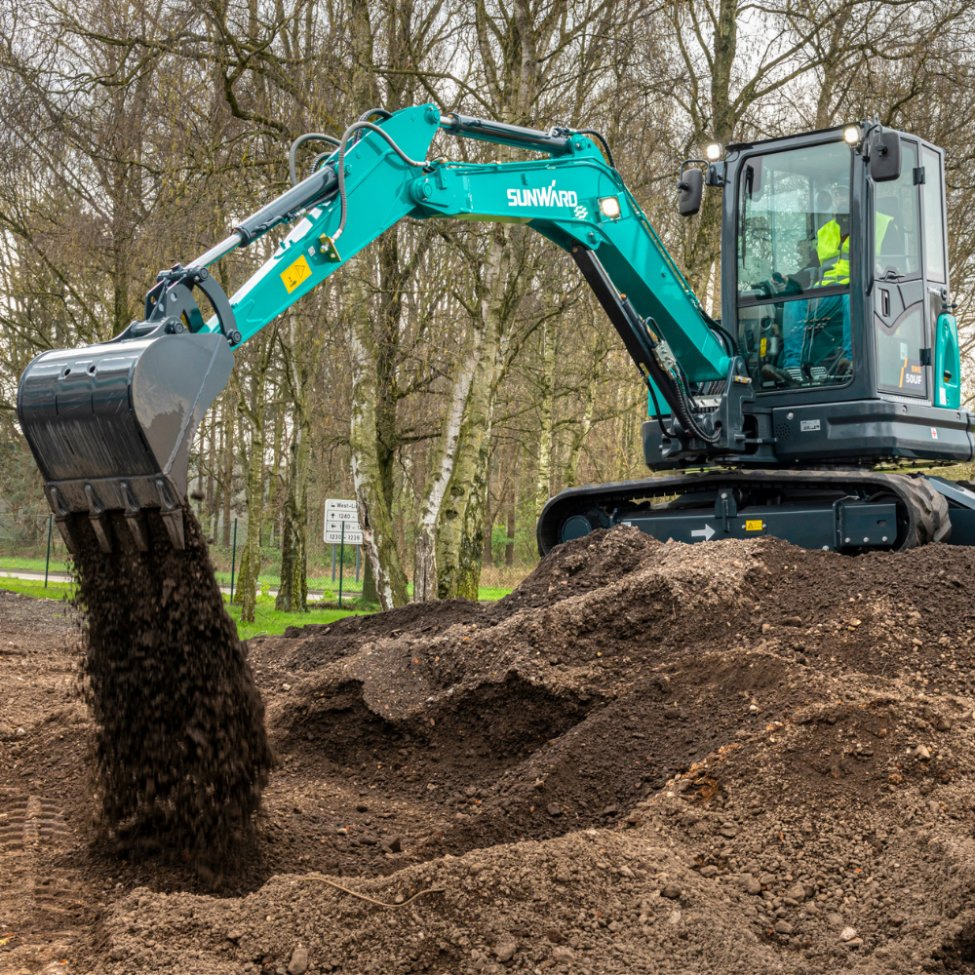

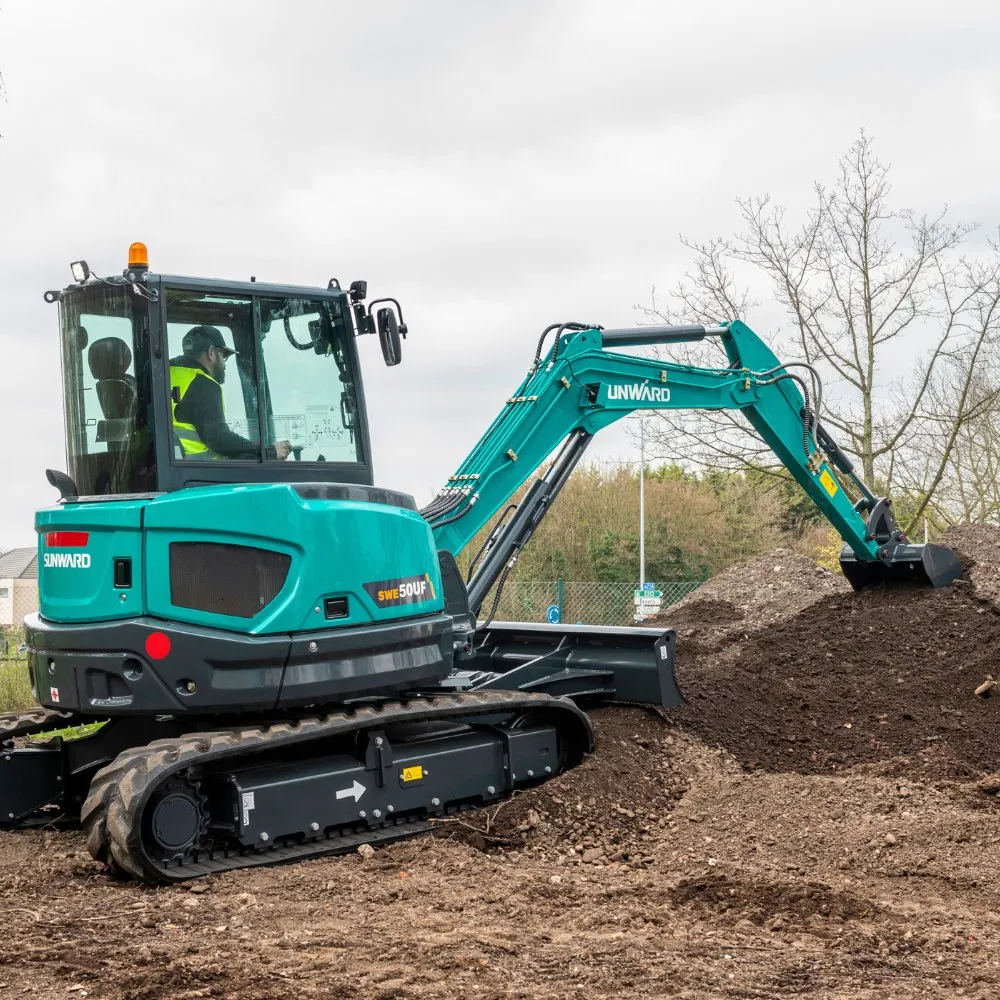

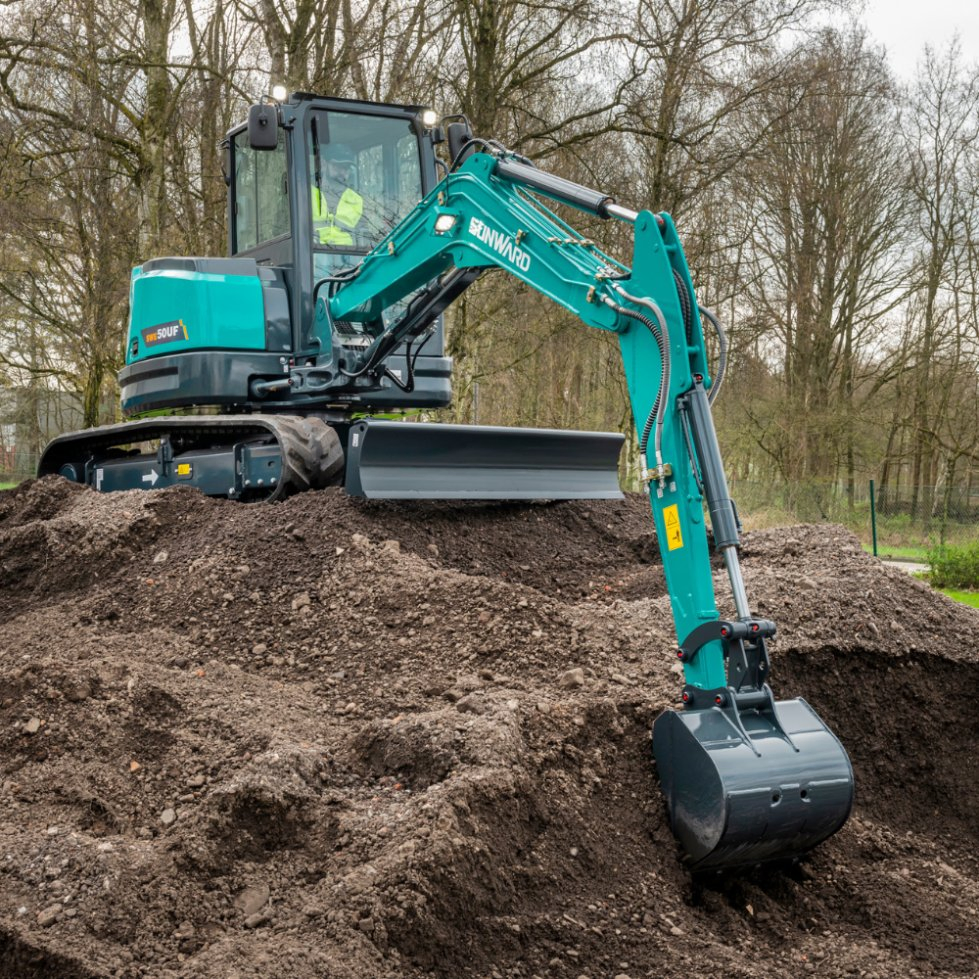

Compact mini excavator SWE50UF 5 ton zero-tail swing constrained space D1803-T engine bucket capacity of 0.14 m3 comfortable seat 7-inch color touchscreen
Designed to meet European customer needs, the SWE 50UF mini excavator is optimized for performance in constrained spaces with zero-tail swing technology.
The SWE 50UF features the powerful Kubota D1703 engine, a vertical, water-cooled, 4-cycle diesel engine providing 29.7 kW at 2200 rpm. With built-in solenoid and single-side serviceability, it offers exceptional reliability and a long service life for various applications.
Key components are carefully selected from industry leaders. We use HENGLI for hydraulic pumps, and KYB or Nachi for swing motors. These components ensure the excavator remains efficient, reliable, and space-saving.
The SWE 50UF delivers exceptional digging forces—34 kN (bucket) and 23 kN (arm). Its boom cylinder design provides a ground reach over 5.8 meters and a digging reach over 5.9 meters, setting a benchmark for the 5.5t class.
| Operating mass | 5350 kg |
| Bucket capacity | 0.14 m3 |
| Engine Brand | Kubota |
| Engine Model | D1803-T |
| Rated power | 29.7/2200 kw/rpm |
| Max. torque | 150/1500 N.m/rpm |
| Type of primary pump | Variable piston pump |
| Max. flow of primary pump | 110 L/min |
| System pressure | 26 Mpa |
| Swing speed | 10.7 rpm |
| Travel speed | 4.3/2.5 km/h |
| Gradeability | 70% |
| Capacity of fuel tank | 70 L |
| Max. digging height | 5535 mm |
| Max. digging depth | 3375 mm |
| Max. ground digging reach | 5845 mm |
| Total length | 5435 mm |
| Total height | 2570 mm |
| Total width | 2000 mm |
