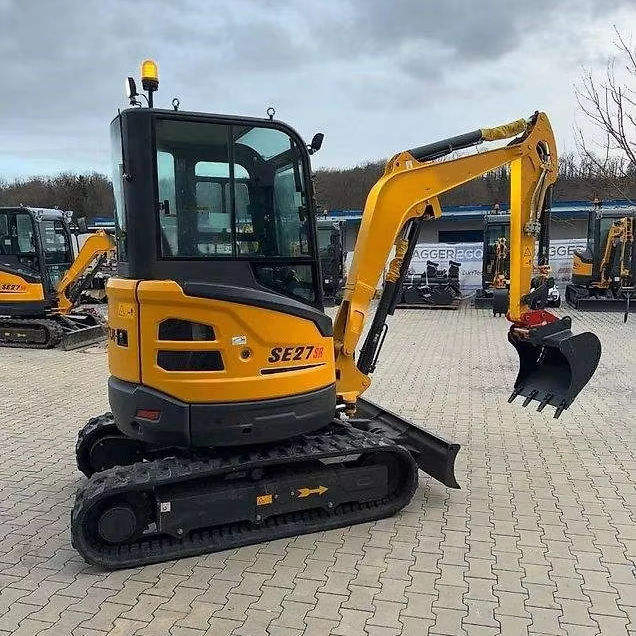

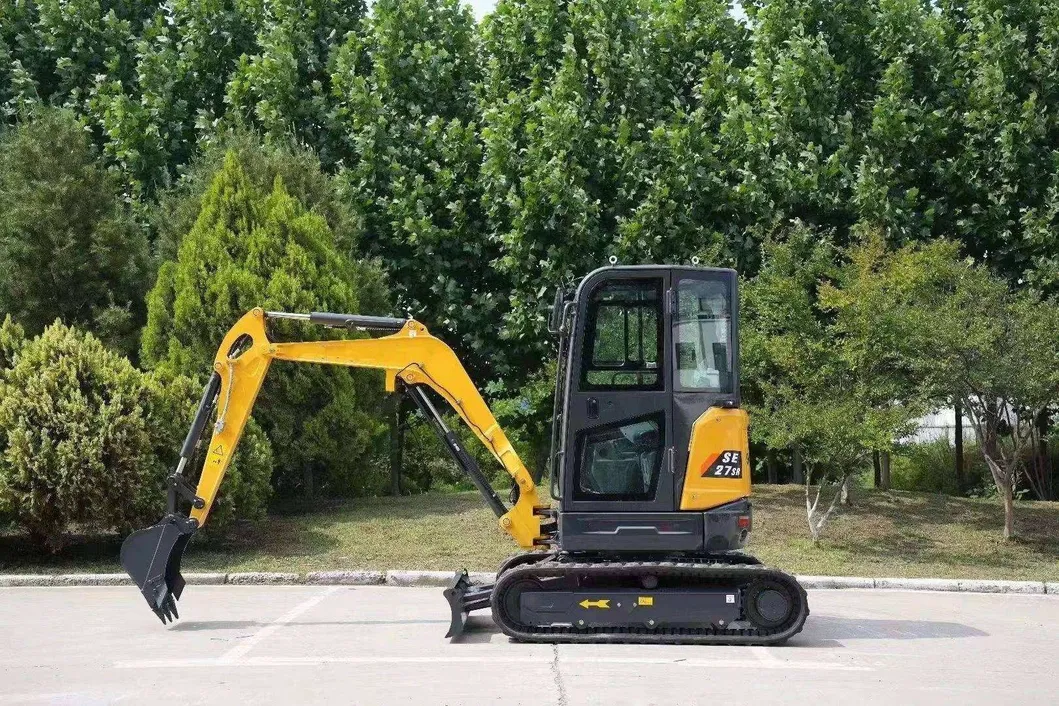

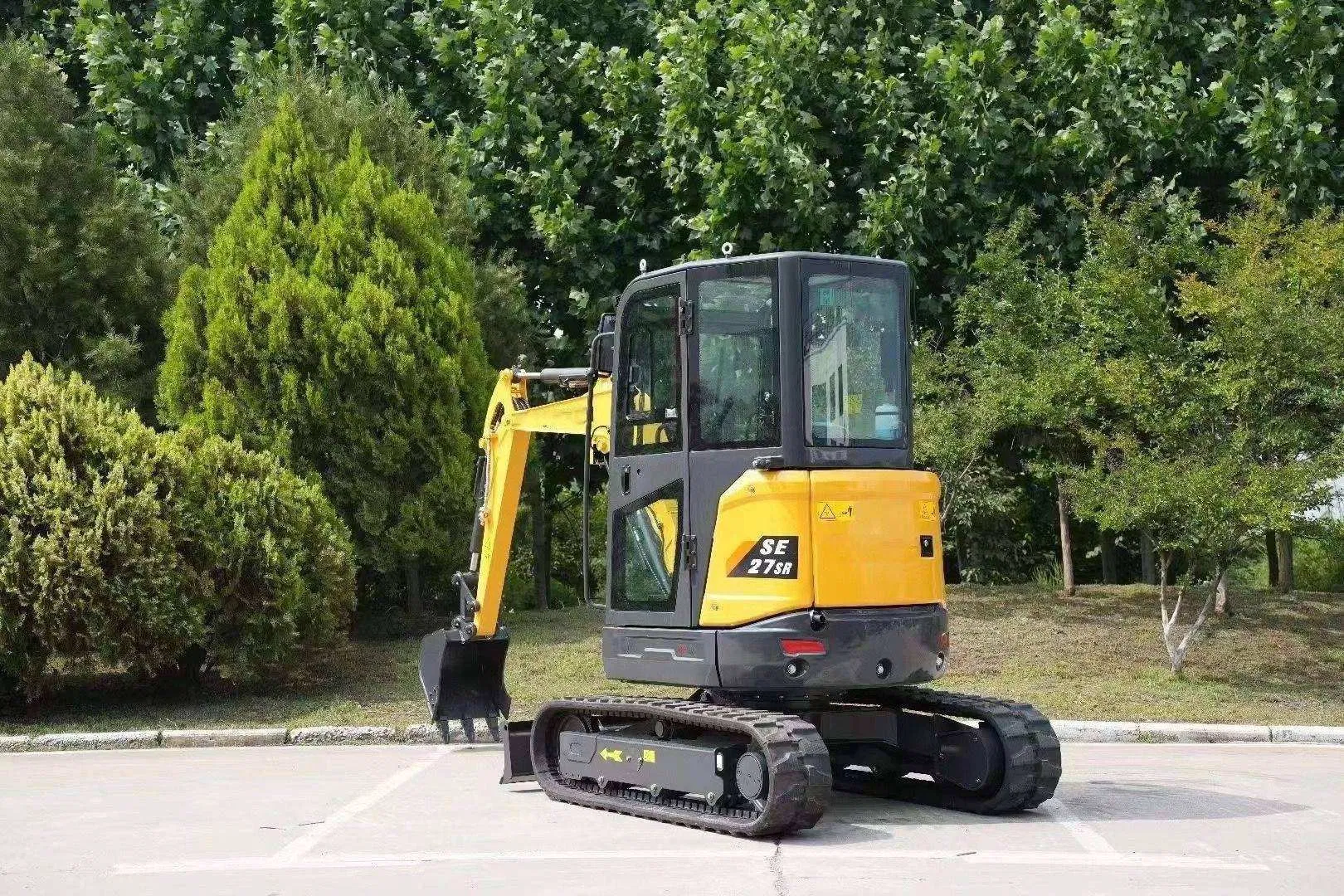

SE27SR 2.8ton Small Crawler Excavator
An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.
Operator Comfort: The machine is equipped with the mechanical suspension seat, the high-power hot air system, and the 7-inch LCD touchscreen. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.
Adaptability: The standard configuration includes zero-tail swing and boom swing functions. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.
| Parameter Item | SE26SR / SE27SR Specifications |
|---|---|
| Operating weight (kg) | 2700 |
| Engine power (kW/rpm) | 14.6 / 2400 |
| Bucket capacity (m³) | 0.065 |
| External dimensions (mm) | 4200 * 1550 * 2480 |
| Bucket digging force (kN) | 24 |
| Bucket rod digging force (kN) | 14.8 |
| Maximum digging height (mm) | 4390 |
| Maximum digging distance (mm) | 4680 |
| Maximum digging depth (mm) | 2800 |
| Emissions Standard | EU stage V / T4F |
