Basic Information
Transmission
Hydraulic Transmission
Certification
CE, ISO9001: 2000
Rated Power
150 Kw (204 HP)
Packaging & Delivery
Package Size
250.00cm * 220.00cm * 200.00cm
Package Type
Wooden Case / Box
Product Description

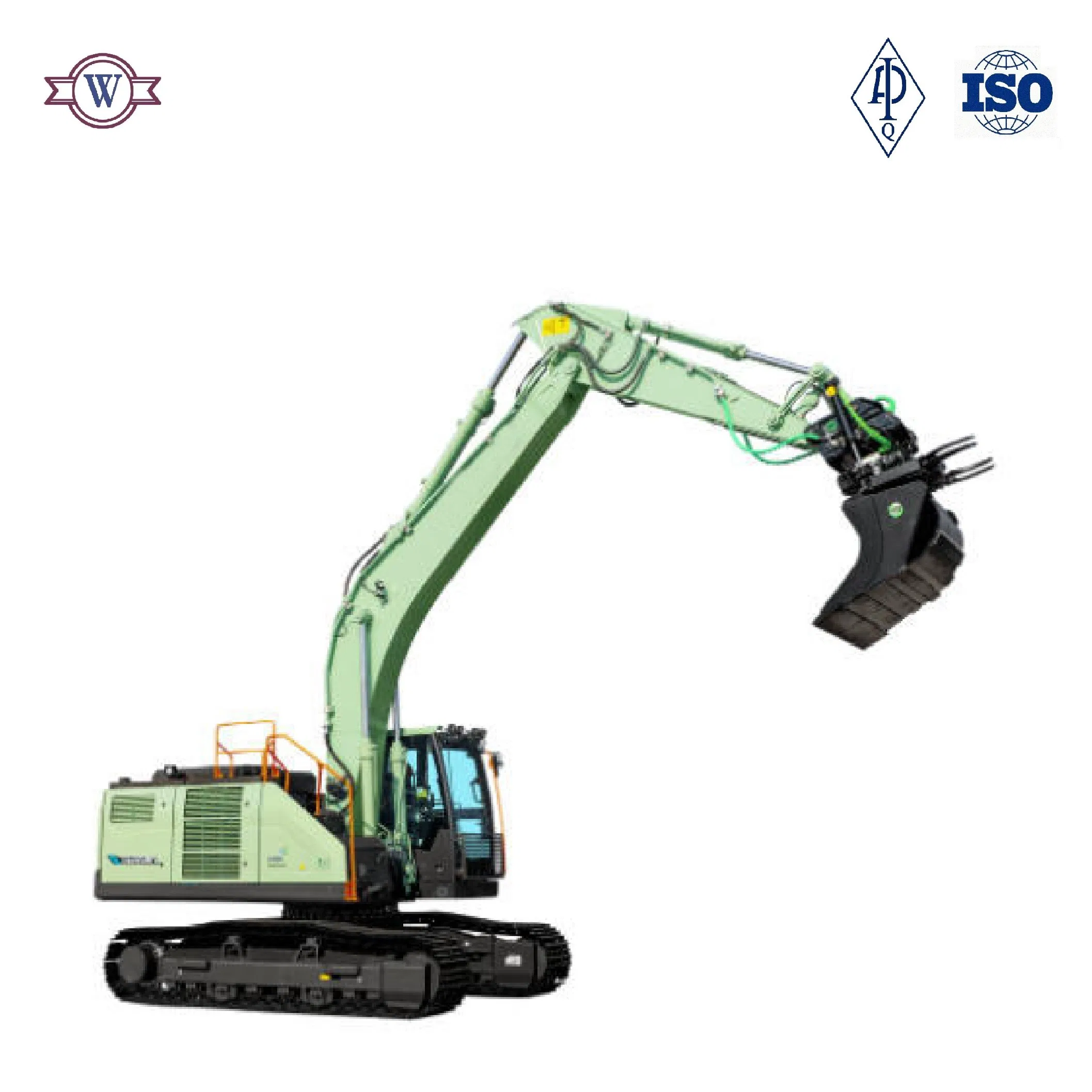

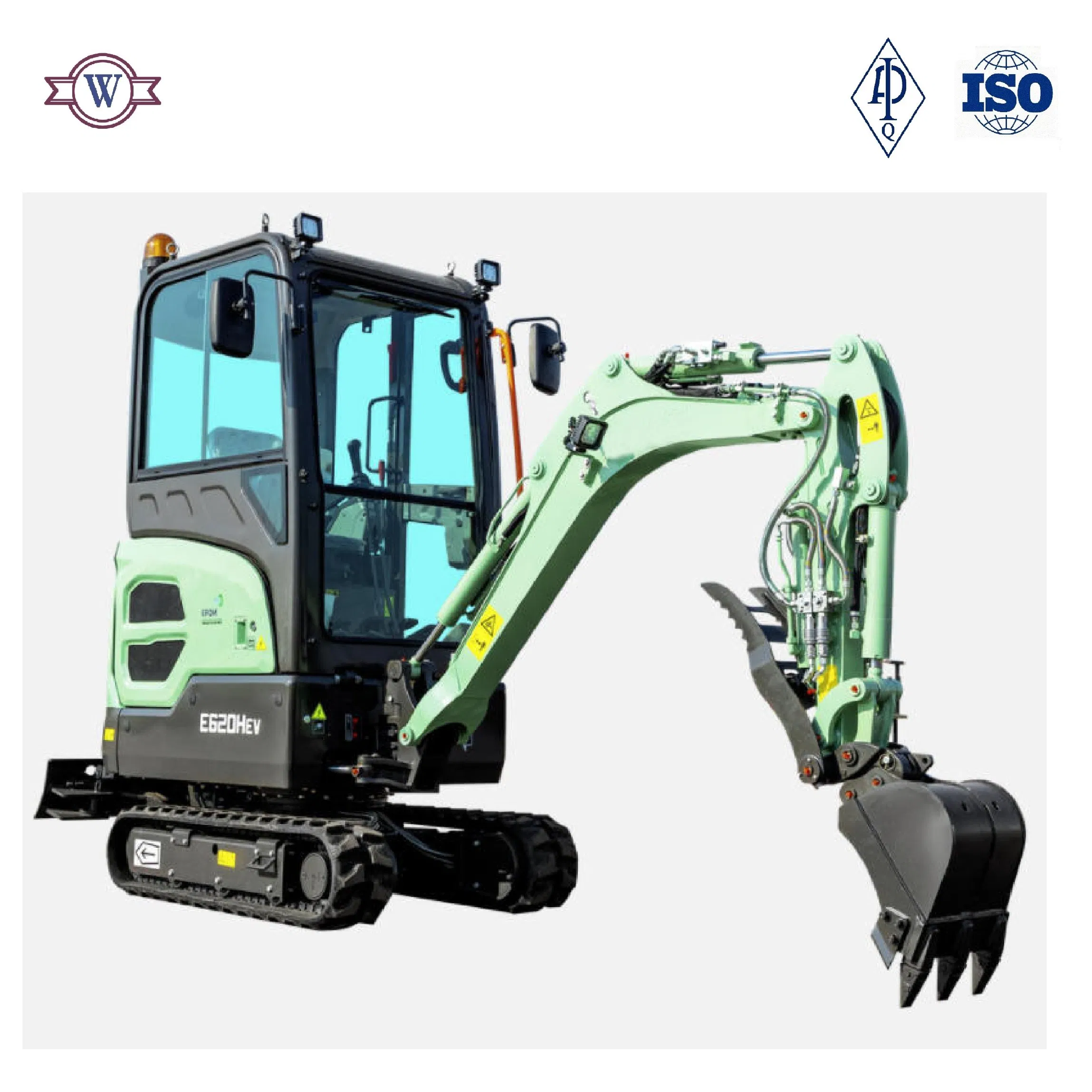

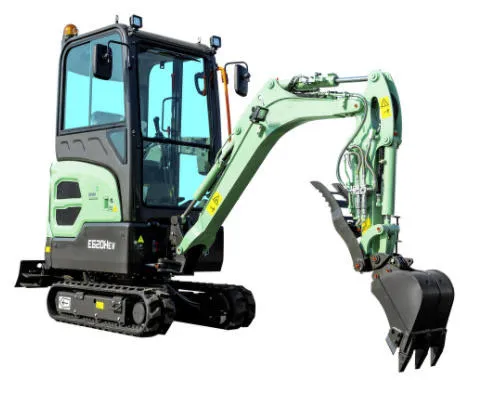

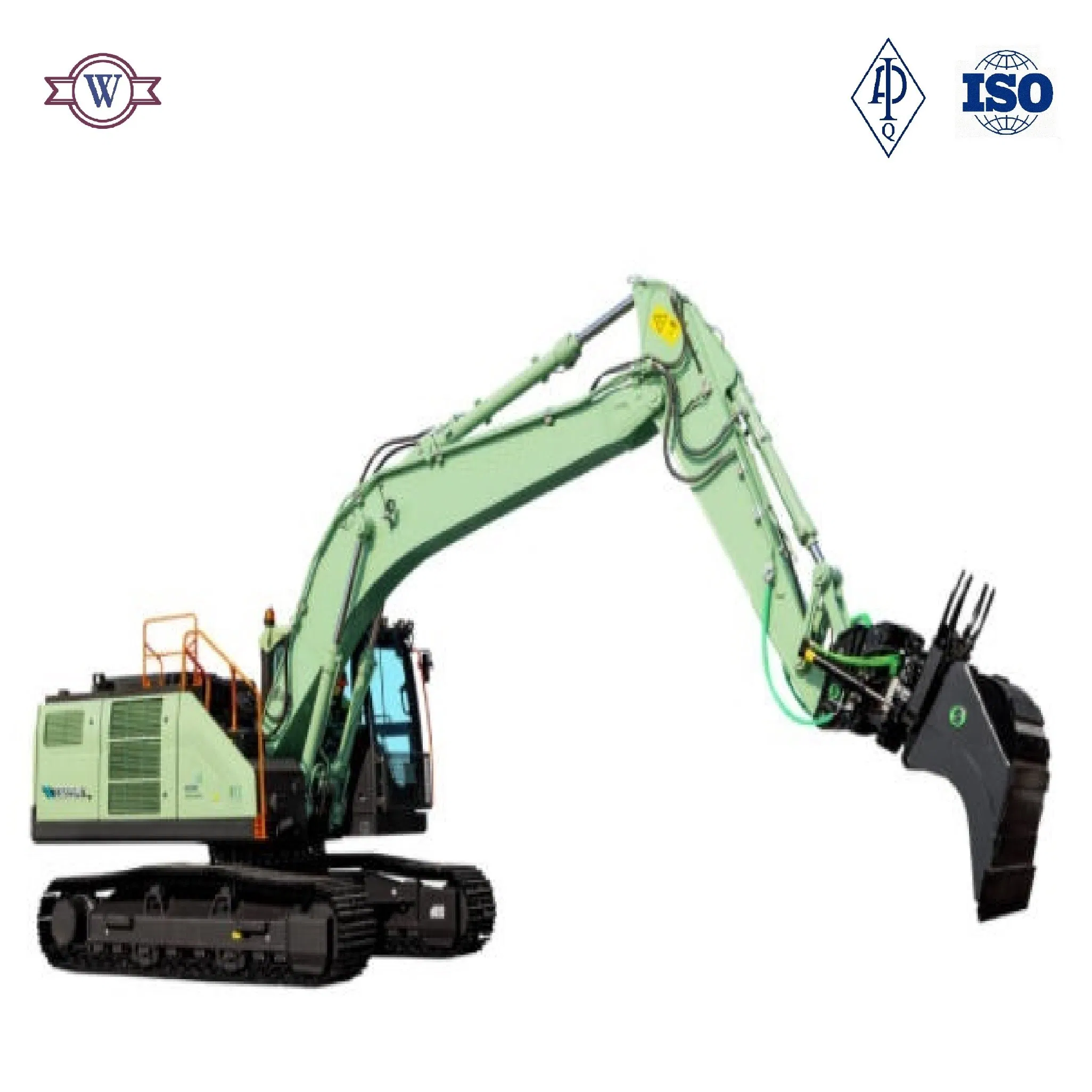

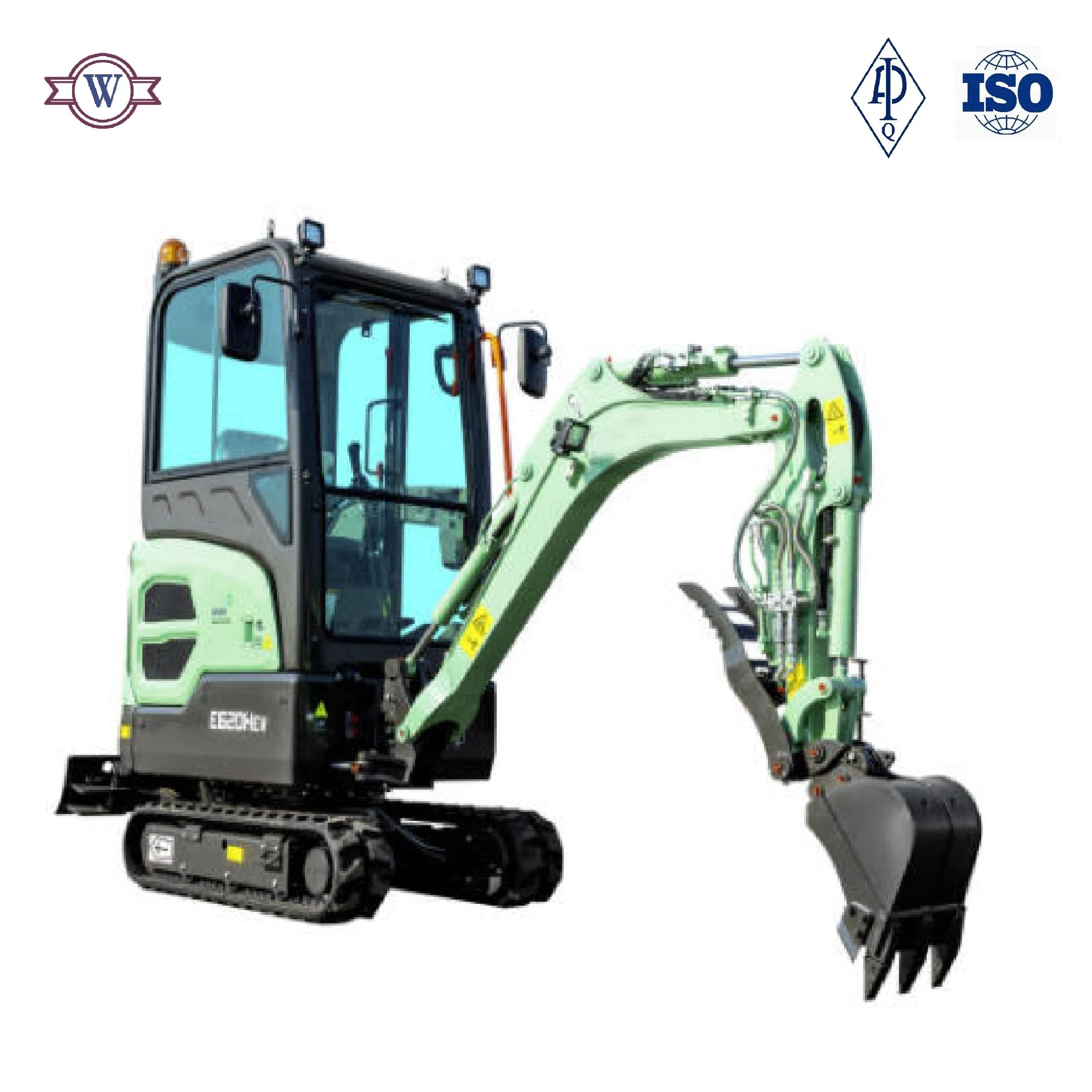

Electric Excavator
High-torque permanent magnet synchronous motor with strong power. The motor is efficiently matched with the hydraulic system for quick response.
Exclusive electronic control system connects all electrical components for real-time communication and control, monitoring operation status and safety, optimizing power distribution, and increasing endurance.
Features strong power, stable output, high working efficiency, low vibration and noise, long working life, fast charging, and Maintenance-free battery.
423kWh battery system (12 pieces) allows 1.5 hours charging for 6-10 hours run time.
The motor and hydraulic oil adopt ATS intelligent cooling system, custom back blowing and dust removal, and automatic fan speed control based on temperature.
32t H-series ROPS cab as standard, protects the driver's safety and has large internal space.
Technical Parameter
| Rated Voltage (V) | 618 |
| Battery Rated Capacity (kWh) | 423 |
| Rated Power (kW/HP) | 150 (204) |
| Average Runtime (h) | 6-10 |
| Charging Hour (h) | 1.5 |
| Pumps Capacity (L/min) | 2*230+18 (2*60.8+4.8 gal/min) |
| Main Relief Set Pressure (bar) | 340 (4,930) / 355 (5,148 psi) |
| Max Digging Force of Bucket (kN) | 147.1 (33,069 lbf) |
| Max Digging Force of Arm (kN) | 105.3 (23,672 lbf) |
| Travel Speed (Low/High) | 3.5 / 5.7 km/h |
| Gradeability | 35° |
| Swing Speed (r/min) | 12.1 |
| Ground Pressure (kPa) | 35.1 (5.1 psi) |
| Boom Length (mm) | 5,700 (18' 8.4") |
| Arm Length (mm) | 2,900 (9' 6.2") |
| Bucket Capacity (m³) | 1.25 (1.64) |
| Overall Shipping Size (L*W*H) | 9,720 * 2,990 * 2,940 mm |
| Max Digging Reach (mm) | 9,940 |
| Max Digging Depth (mm) | 6,730 |
| Track Width (mm) | 600 (23.6") |

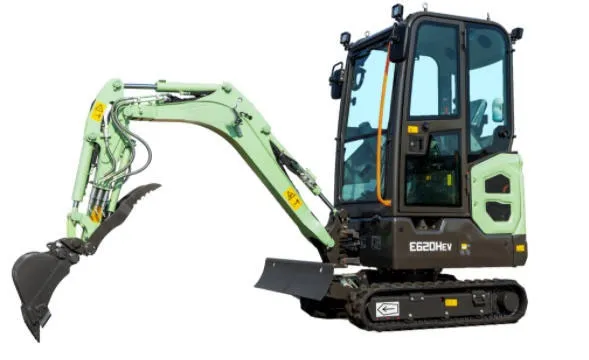

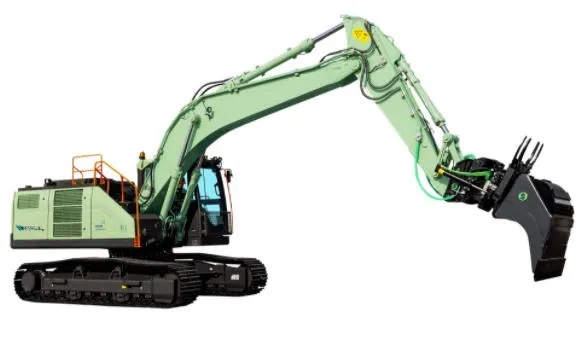

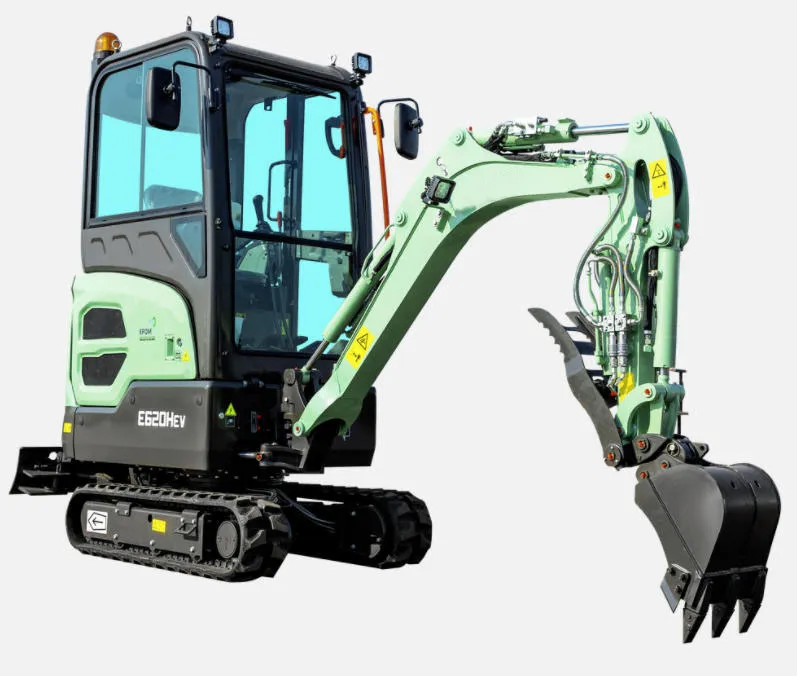

Detailed Views
Frequently Asked Questions
What certificates are available for this machinery?
For the machinery, we hold CE, ISO, and CCC certifications to ensure international quality and safety standards.
What is the estimated delivery time?
The standard delivery time is approximately 30 days after the receipt of the initial deposit.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity for our excavators is 1 unit.
How do you guarantee the condition and lifetime of the machine?
We select machines in good condition with low operational hours. Third-party certifications are available, and all machines are open for on-site inspection.
How is the after-sales service handled?
We maintain a robust supply chain for both new and used parts, ensuring reasonable prices and quick availability for any maintenance needs.
Is the battery maintenance-free?
Yes, the electric excavator is equipped with high-capacity maintenance-free batteries designed for long-term industrial use.
