Basic Specifications
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Max Digging Height
2650mm
Max Digging Radius
2900mm
Product Description
⚙️
Engine Performance
Powerful and reliable Perkins/Yanmar engine delivers superior horsepower in a compact size.
🕹️
Smooth Control
Imported hydraulic system & pilot operation levers provide smooth control and easy operation.
🏢
Compact Design
Optimized for work in limited spaces with zero tail and reduced tail options.
🛠️
Versatility
A range of tools is matched to optimize performance and deliver high productivity.
| Model |
TD10 |
TD12 |
TD20U |
TD25U |
TD30U |
| Dimensions |
| A- Overall Length |
2770mm |
2550mm |
3550mm |
3870mm |
4010mm |
| B- Overall Height |
1000mm |
1500mm |
2200mm |
2360mm |
2360mm |
| C- Overall Width |
925mm |
870mm |
1320mm |
1420mm |
1540mm |
| Performance |
| Engine Model |
KOOP |
PERKINS 403D-11 |
| Power |
8.6kW |
14.7kW/2200Rmp |
| Max. Digging Force |
7.2KN |
7.2KN |
12KN |
17.6KN |
18.2KN |
| Overall Weight |
800Kg |
800Kg |
1930Kg |
2450Kg |
2650Kg |
| Operating Dimensions |
| Max. Digging Depth |
1650mm |
1650mm |
2200/2405mm |
2200/2486mm |
2580/2710mm |
| Max. Digging Radius |
2900mm |
2900mm |
3975mm |
4155mm |
4375mm |
Crawler Excavator, Mini Excavator, Steel Crawler Excavator, Small Size Excavator, Agricultural Excavator, Farm Excavator, 1 Ton Excavator, 2 Tons Excavator, 3 Tons Excavator, 4 Tons Excavator, Perkins Engine Excavator, Eaton Motor, Nachi Travel Motor, CE Approved Excavator, Zero Tail Excavator, Hydraulic Pilot Control.
Frequently Asked Questions
What types of engines are used in these mini excavators?
Depending on the model, we use high-quality engines including KOOP, PERKINS 403D-11, and Yanmar 3TNV70 to ensure reliable performance and meet emission standards.
Are these machines suitable for indoor or narrow space projects?

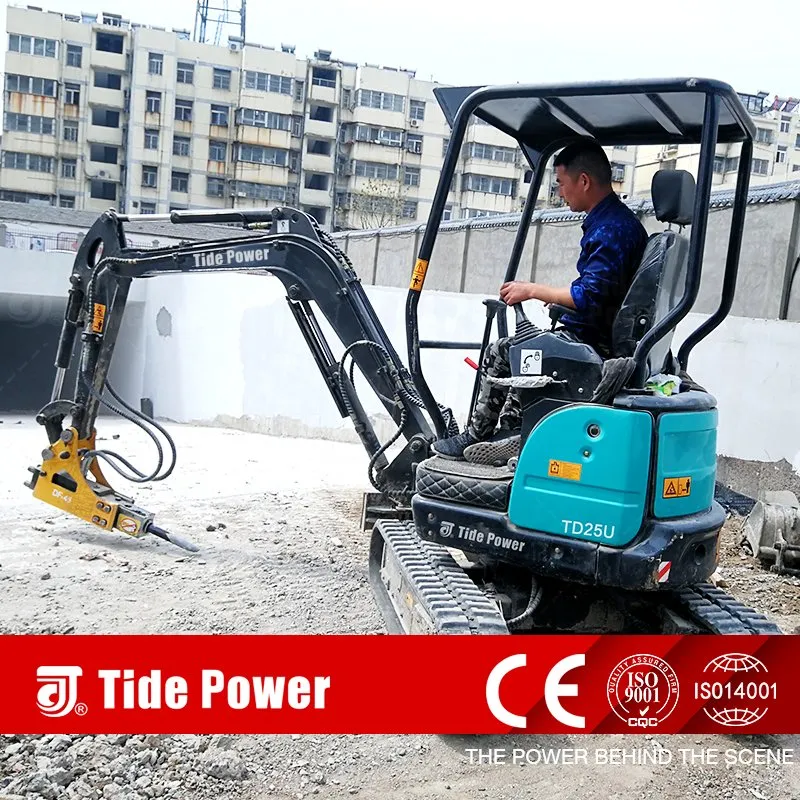

Yes, the compact design, including zero-tail and reduced-tail models like the TD20U and TD25U, makes them ideal for limited spaces, landscaping, and indoor renovation.
What is the maximum digging depth of the TD30U model?
The TD30U model offers a maximum digging depth range between 2580mm and 2710mm, providing excellent reach for small to medium scale excavation.
Do the excavators come with any certifications?
Yes, our excavators are CE approved and comply with ISO9001: 2000 quality management standards, ensuring safety and quality for international markets.
What hydraulic systems are installed in these machines?
Our mini excavators feature imported hydraulic systems and pilot operation levers (such as Eaton or Nachi components) to provide smooth, precise control and high efficiency.
Can I use different attachments with these excavators?
Absolutely. A wide range of tools and attachments can be matched to the excavators to optimize performance for agriculture, construction, or forestry tasks.
