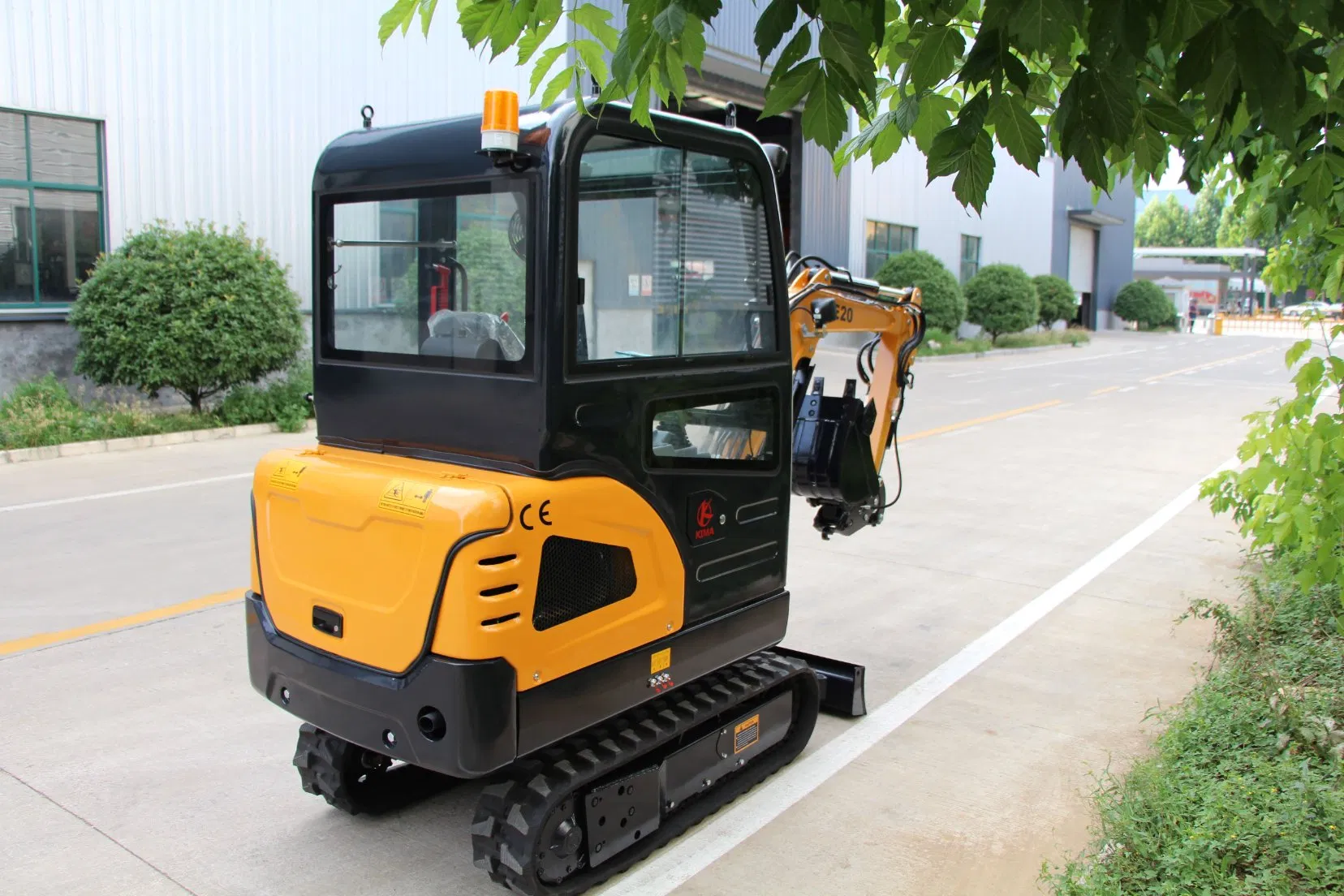

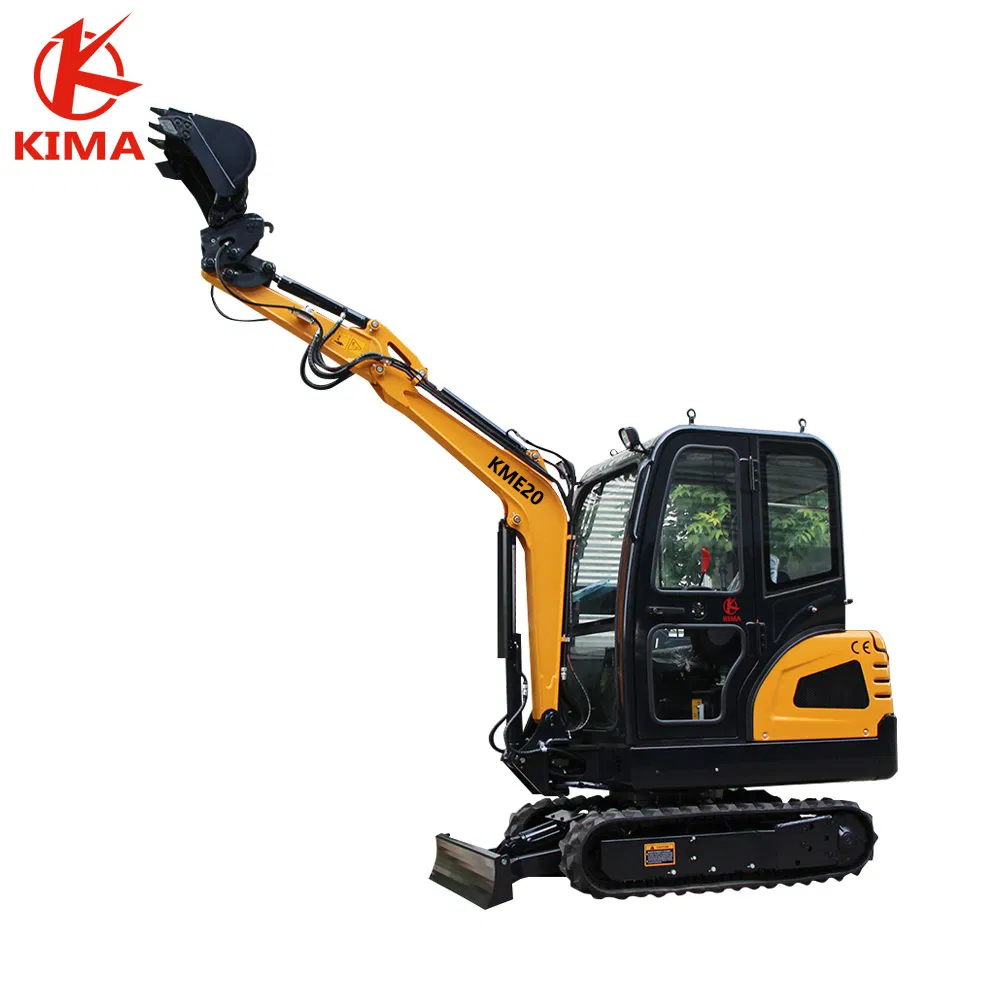

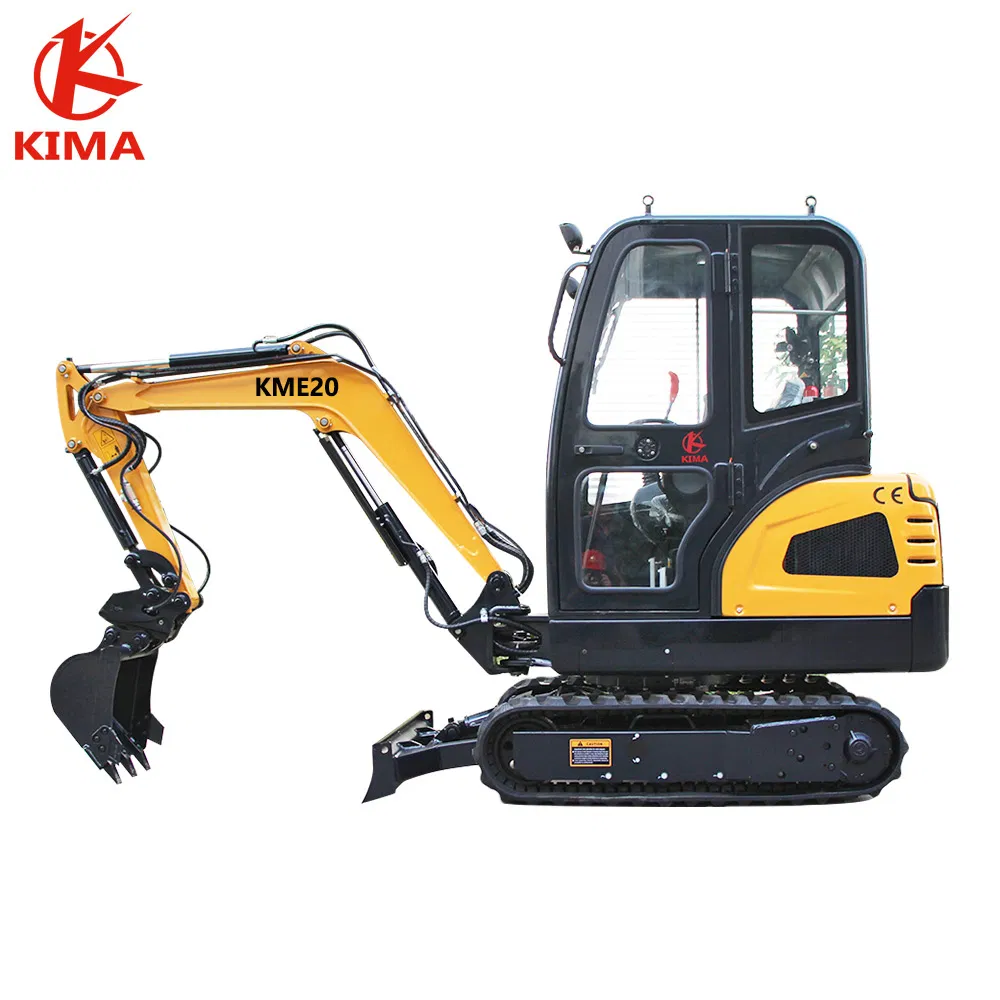

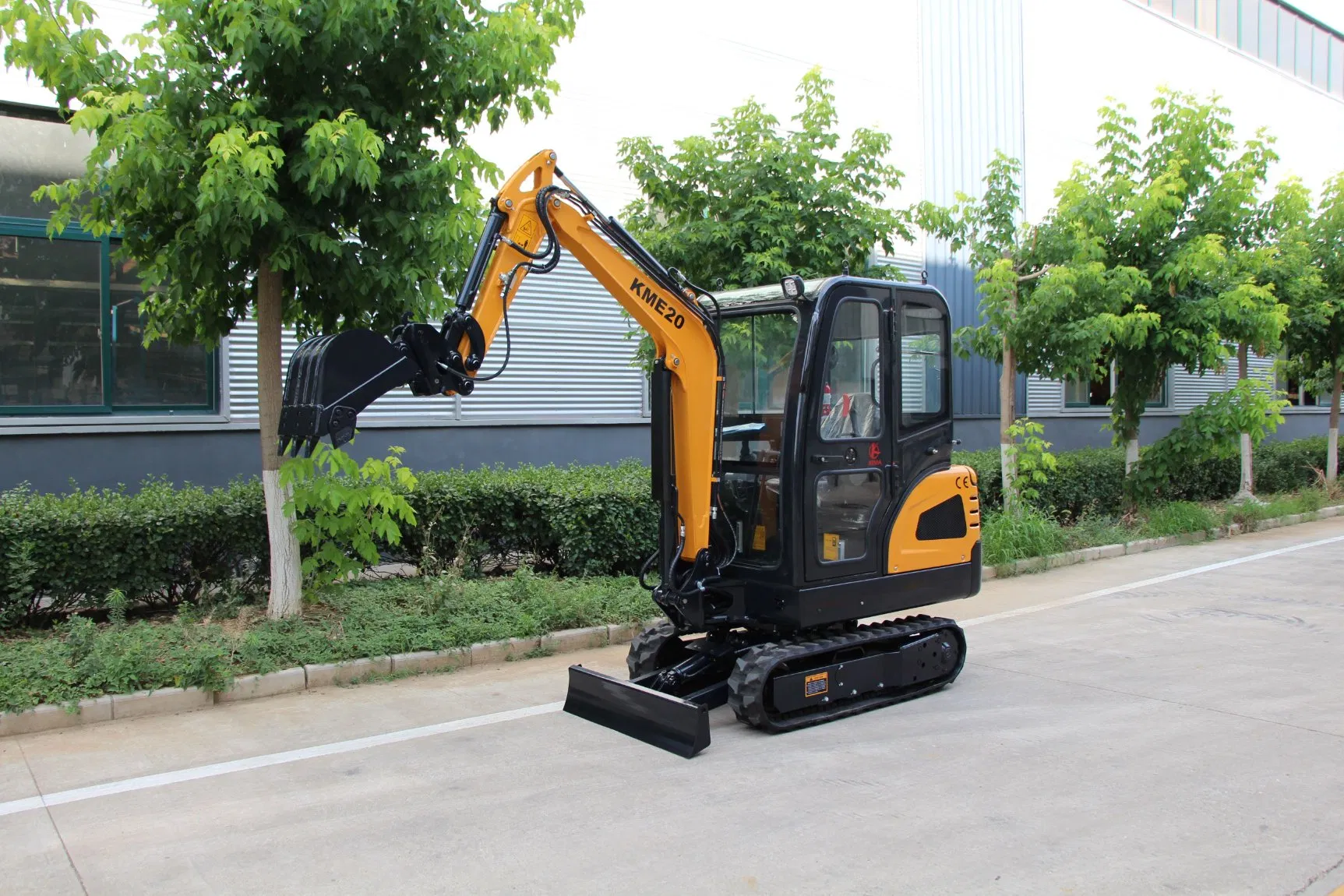

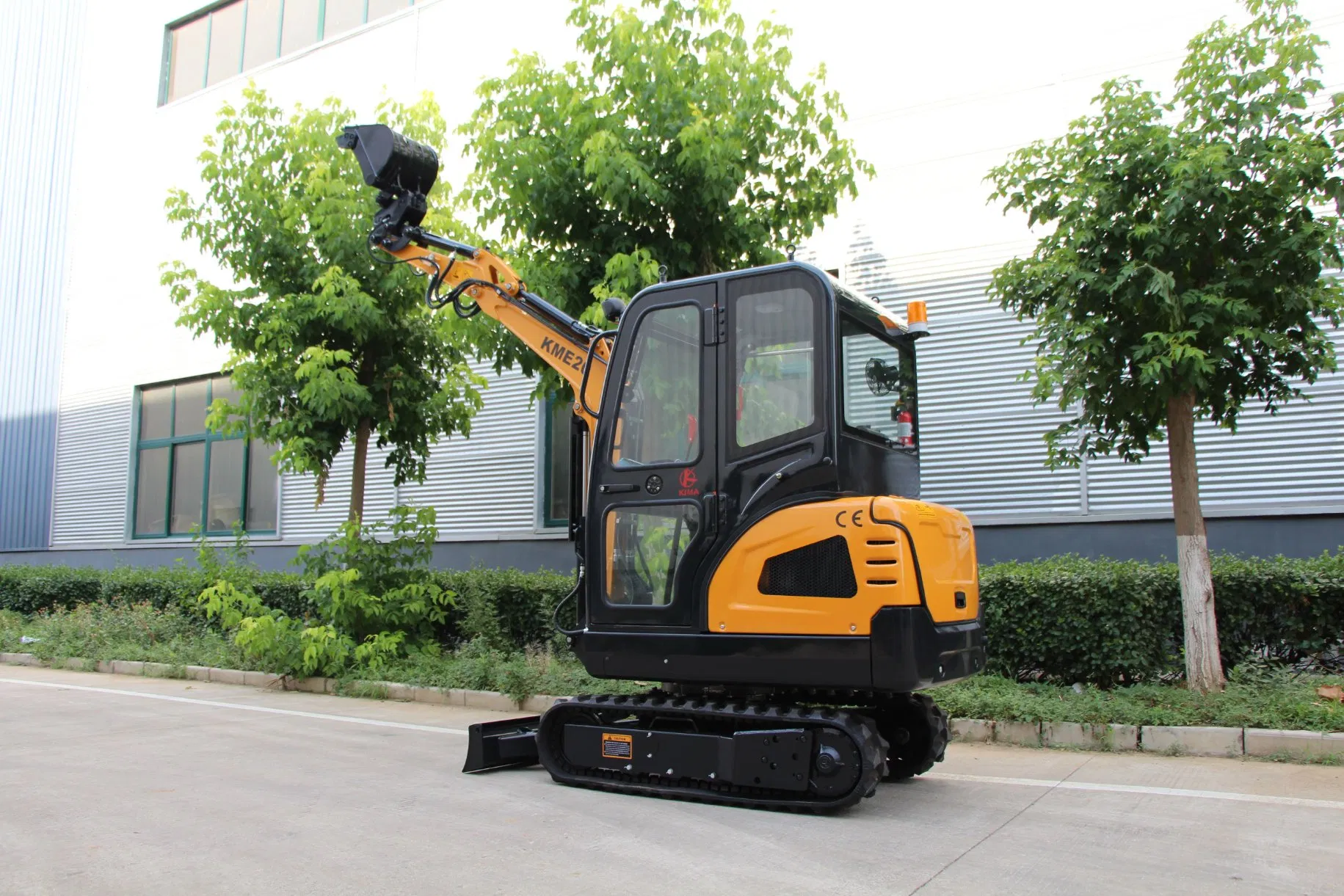

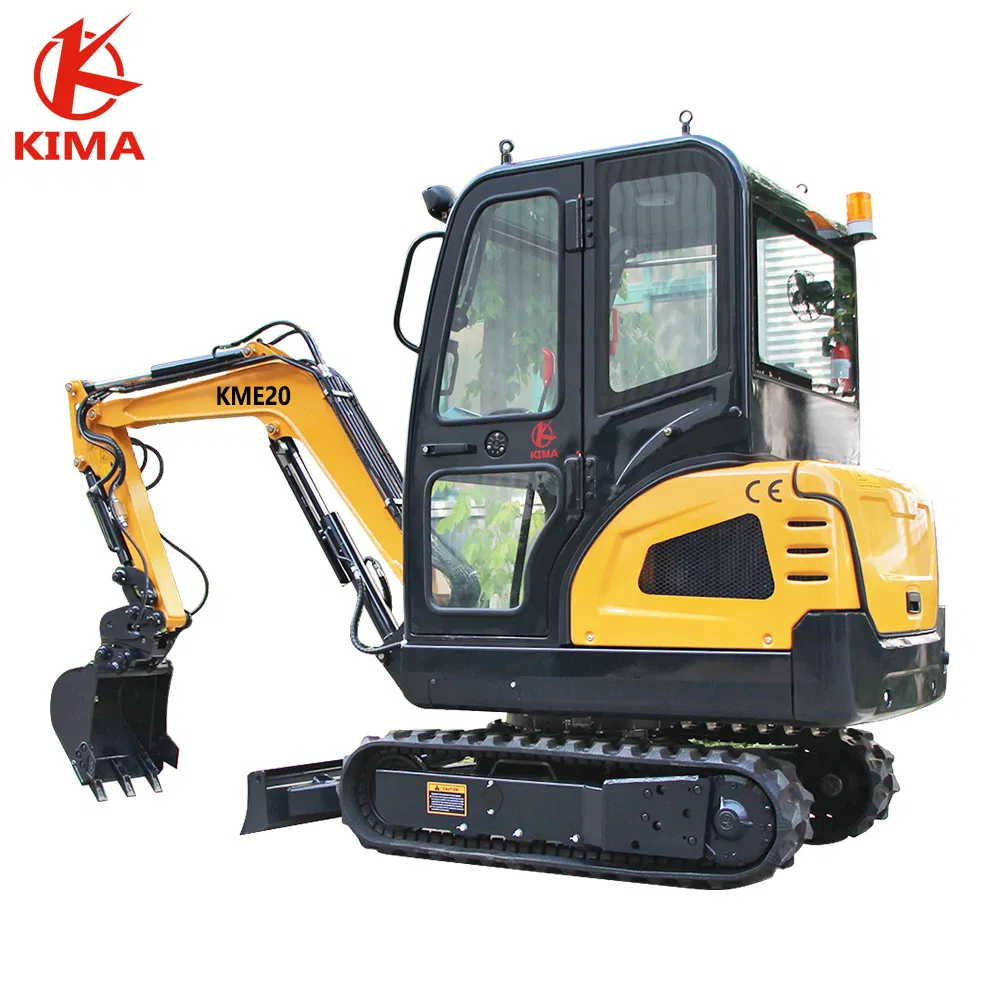

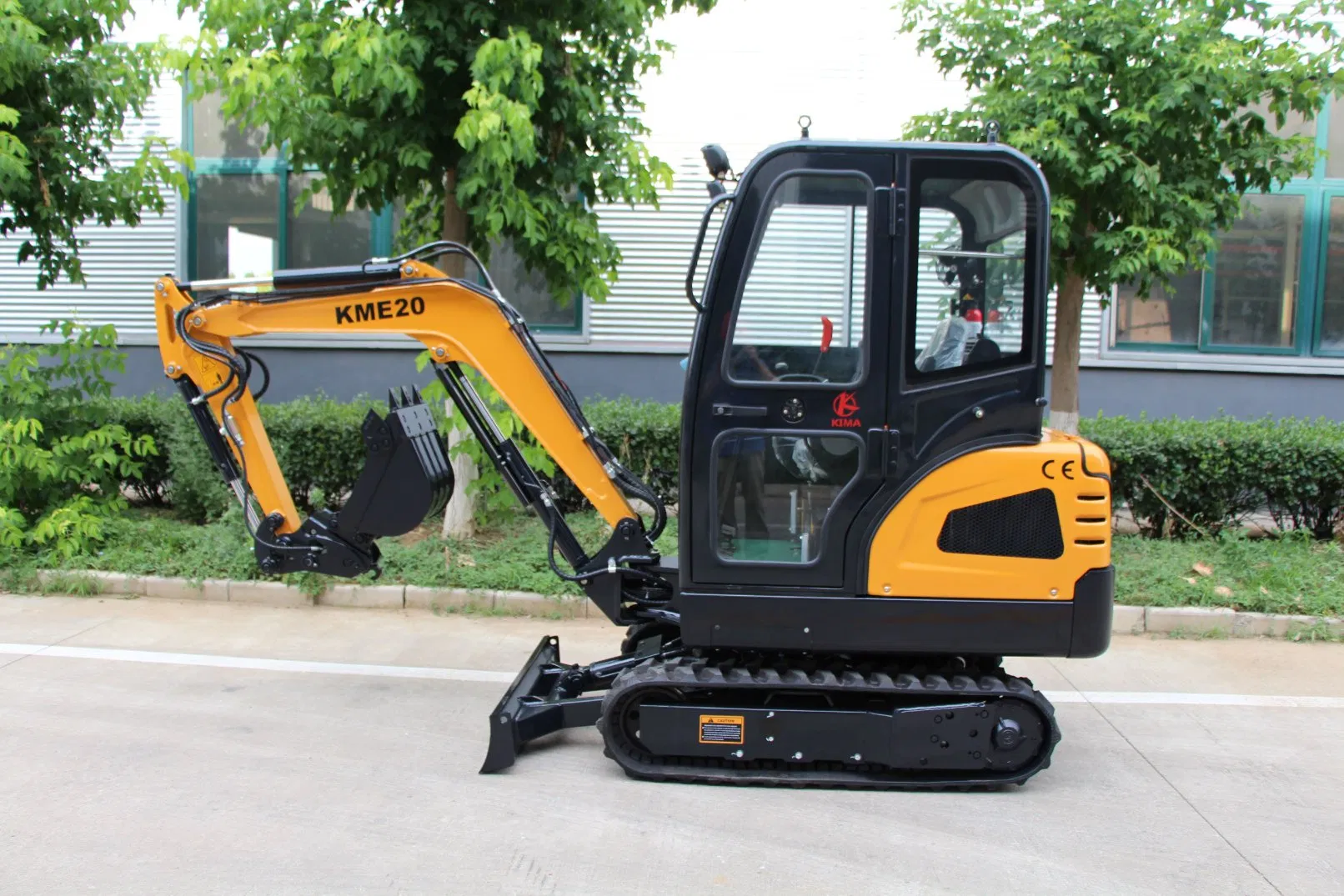

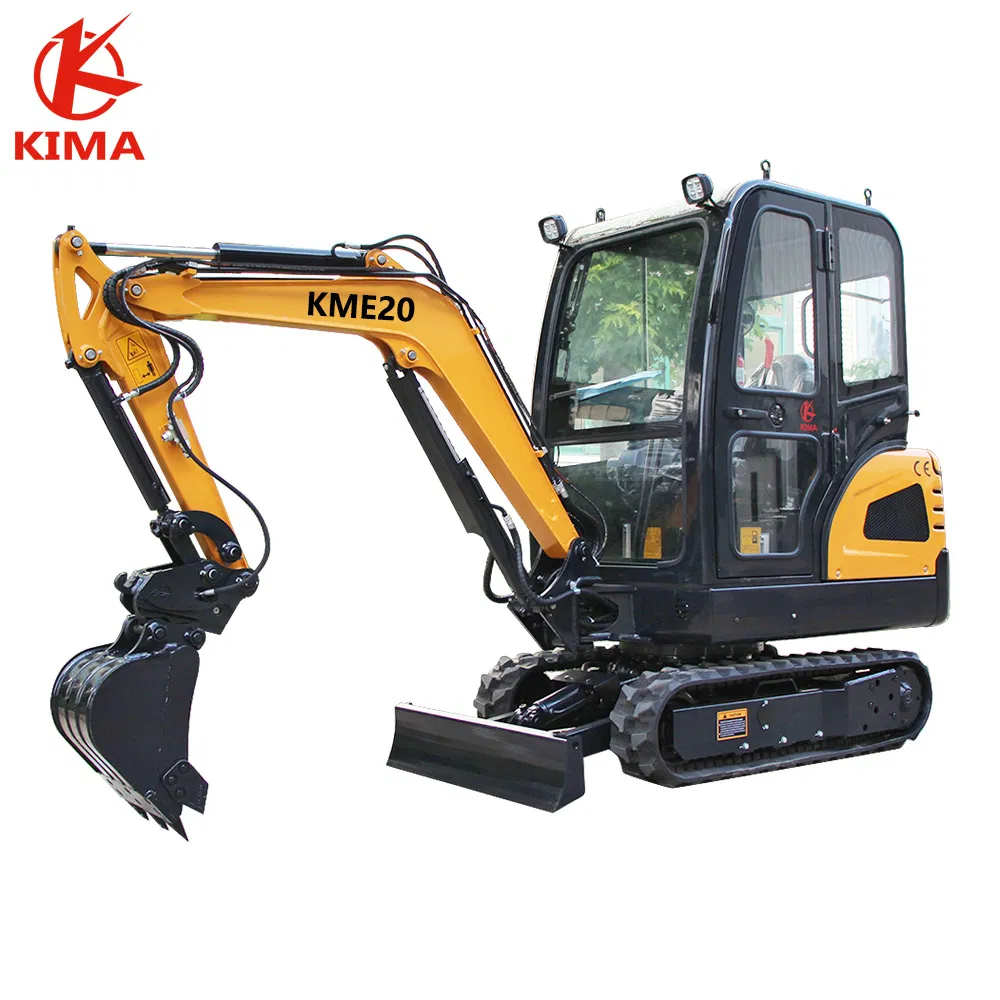

KME20 Mini Excavator is our figured product with a swing boom and extra hose for attachments such as hammers and augers. The swing motor and traveling motor utilize the American Eaton brand, ensuring stability and powerful performance. This mini excavator is available in two versions: open cabin or enclosed cabin.
| Parameter Item | Unit | Specification | |
|---|---|---|---|
| Type of Cab | - | Cabin | |
| Bucket Capacity | m³ | 0.06 | |
| Machine Weight | kg | 1950 | |
| Dimensions | Overall Length | mm | 3865 |
| Overall Height | mm | 2270 | |
| Overall Width | mm | 1050 | |
| Engine | Brand | - | Kubota D1105 |
| Displacement | L | 1.1 | |
| Output | KW/rpm | 14.0/2200 | |
| Working Ranges | Max Digging Height | mm | 3365 |
| Max Dumping Height | mm | 2385 | |
| Max Digging Depth | mm | 2050 | |
| Max Digging Radius | mm | 3880 | |
| Traveling Speed | km/h | 3.5 | |

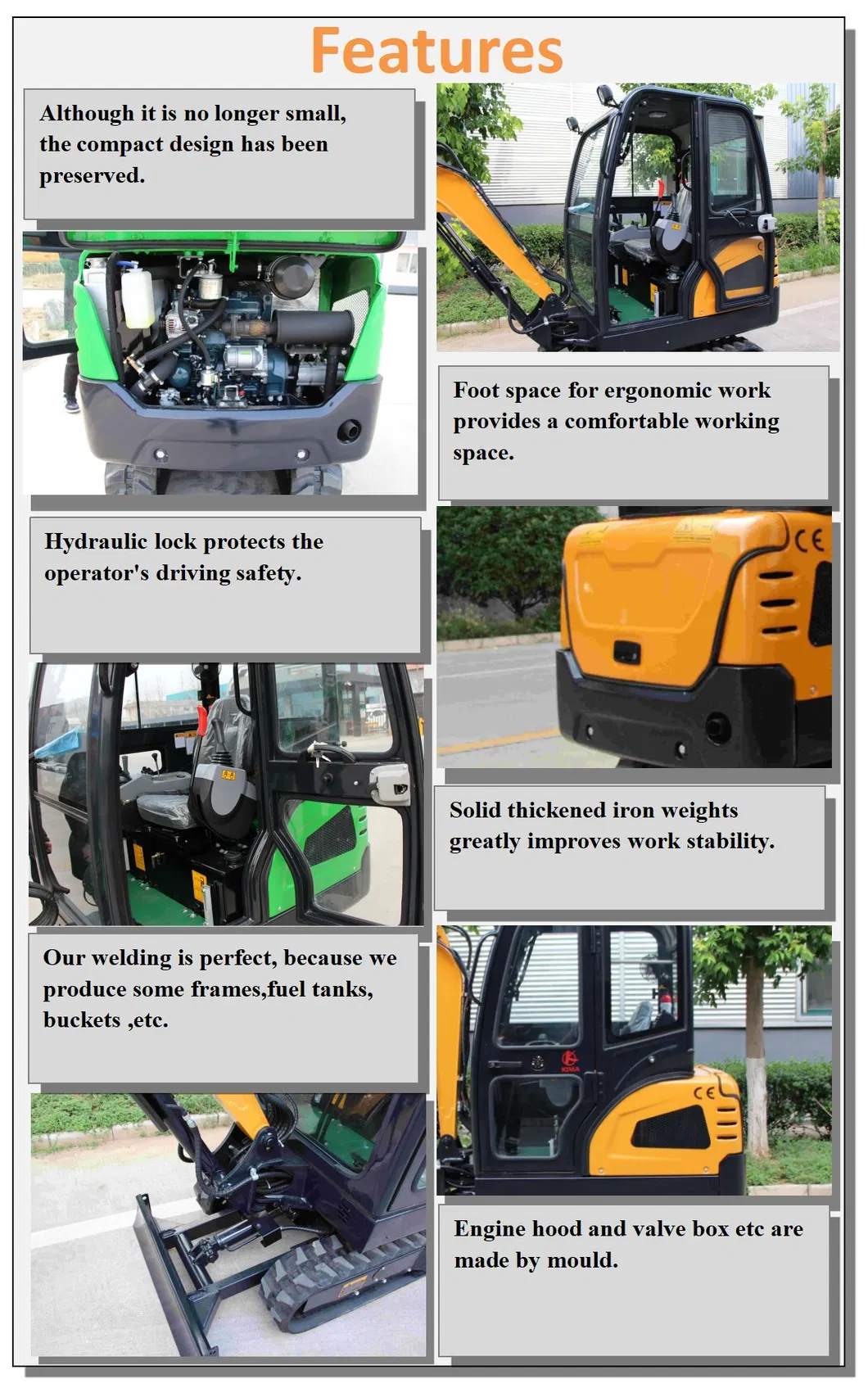

1. Attention to every detail in design and development ensures high quality in every machine.
2. Uncompromising fuel consumption and efficiency. Maneuverable, stable, and fast.
3. Complete selection of products and services, including various attachments for tailor-made solutions.
