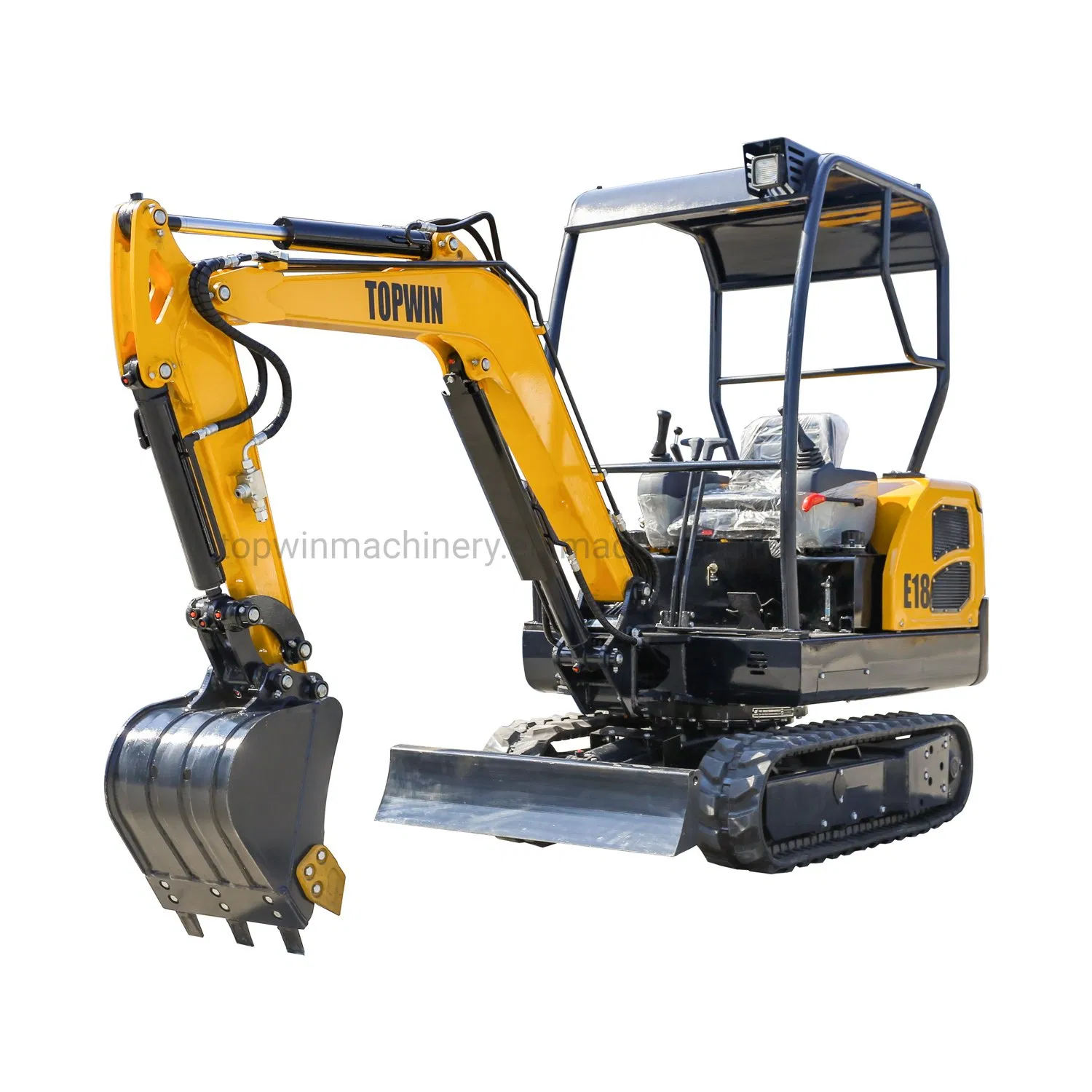

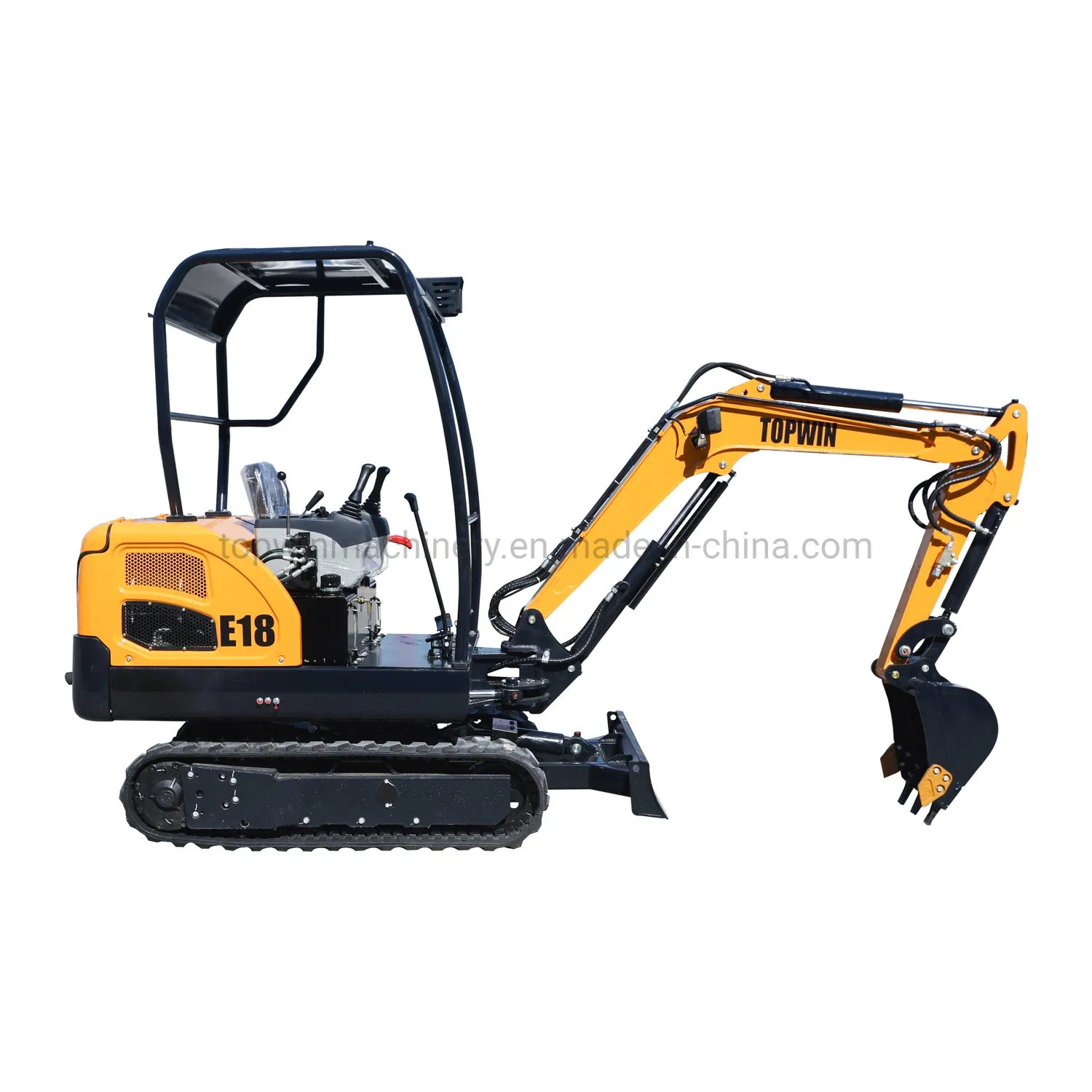

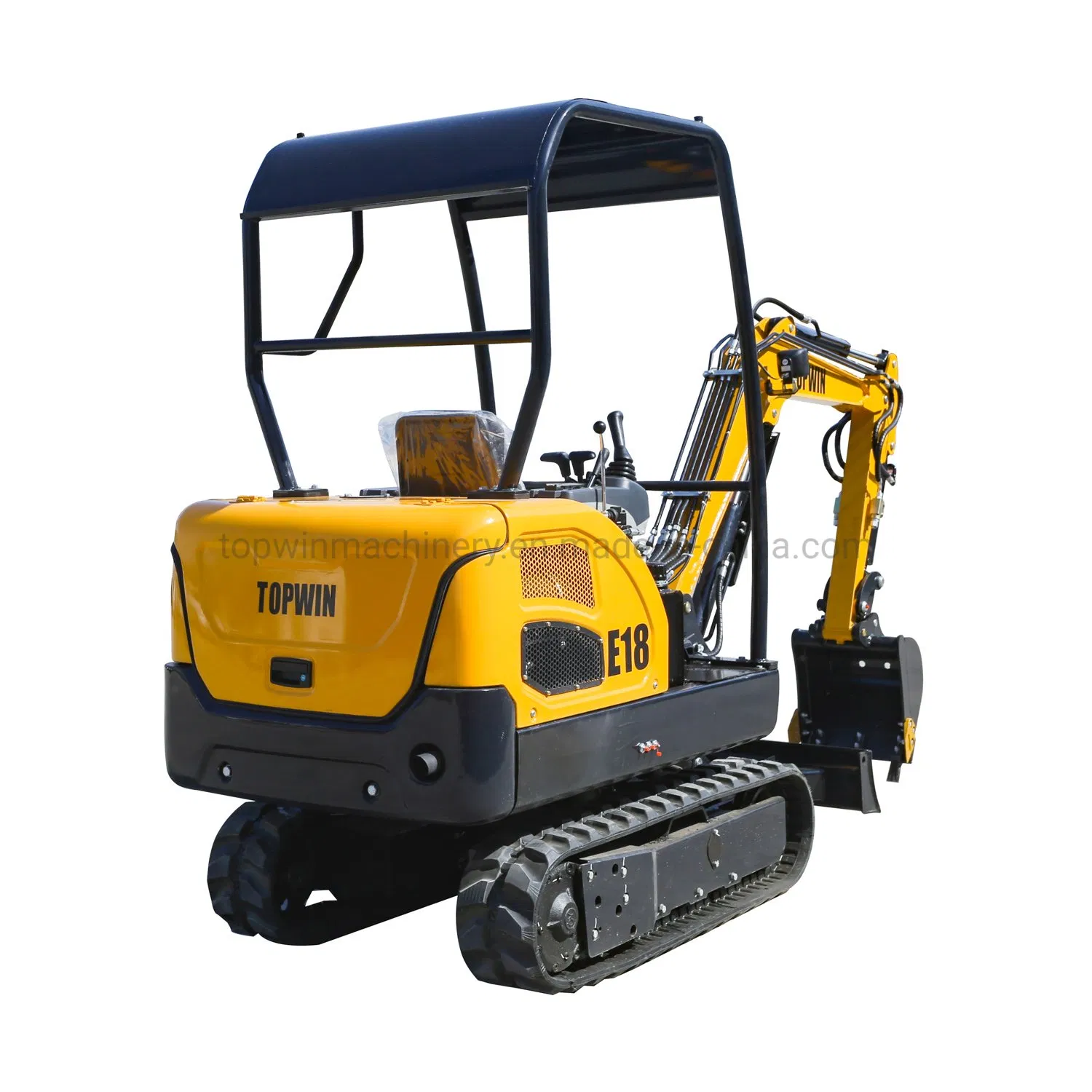

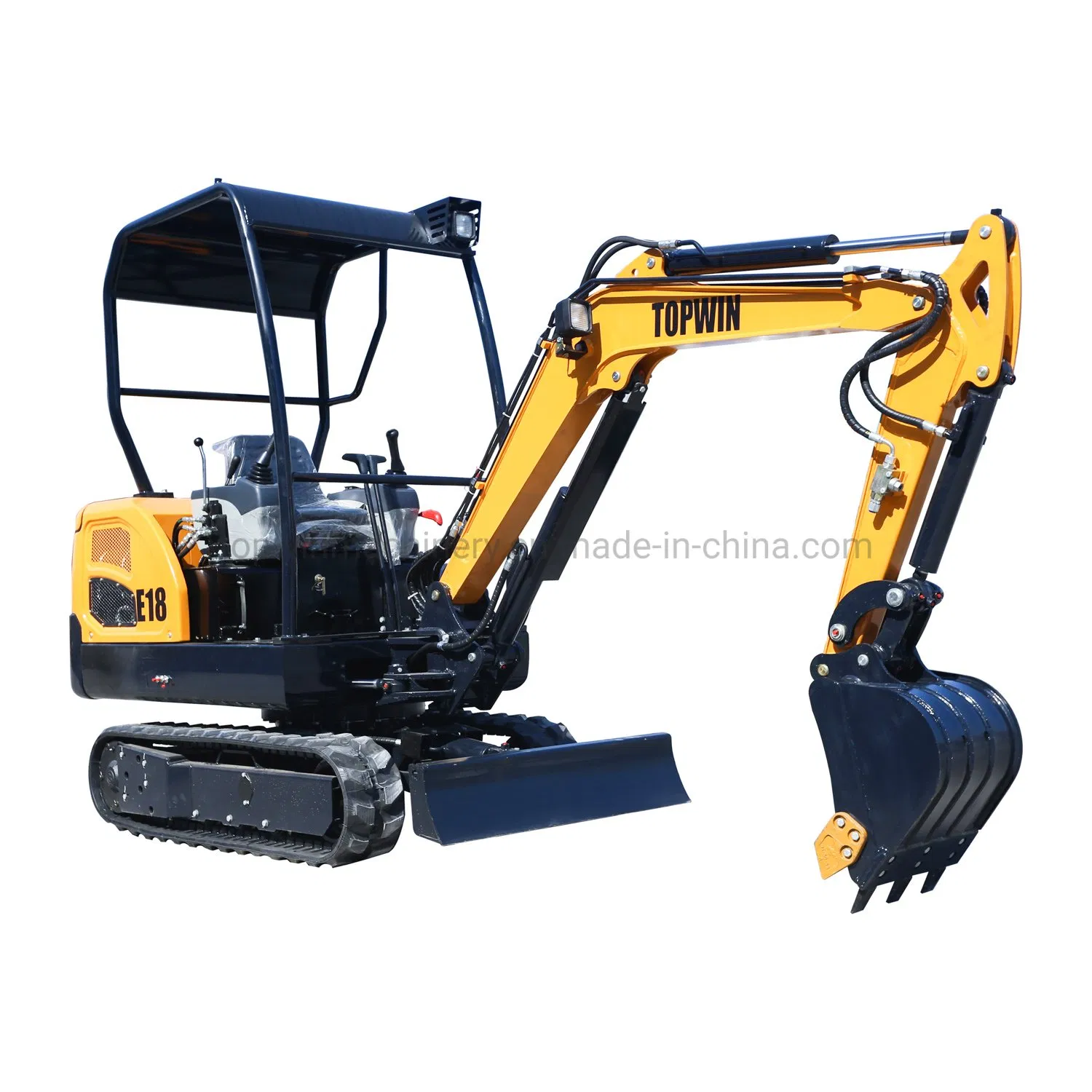

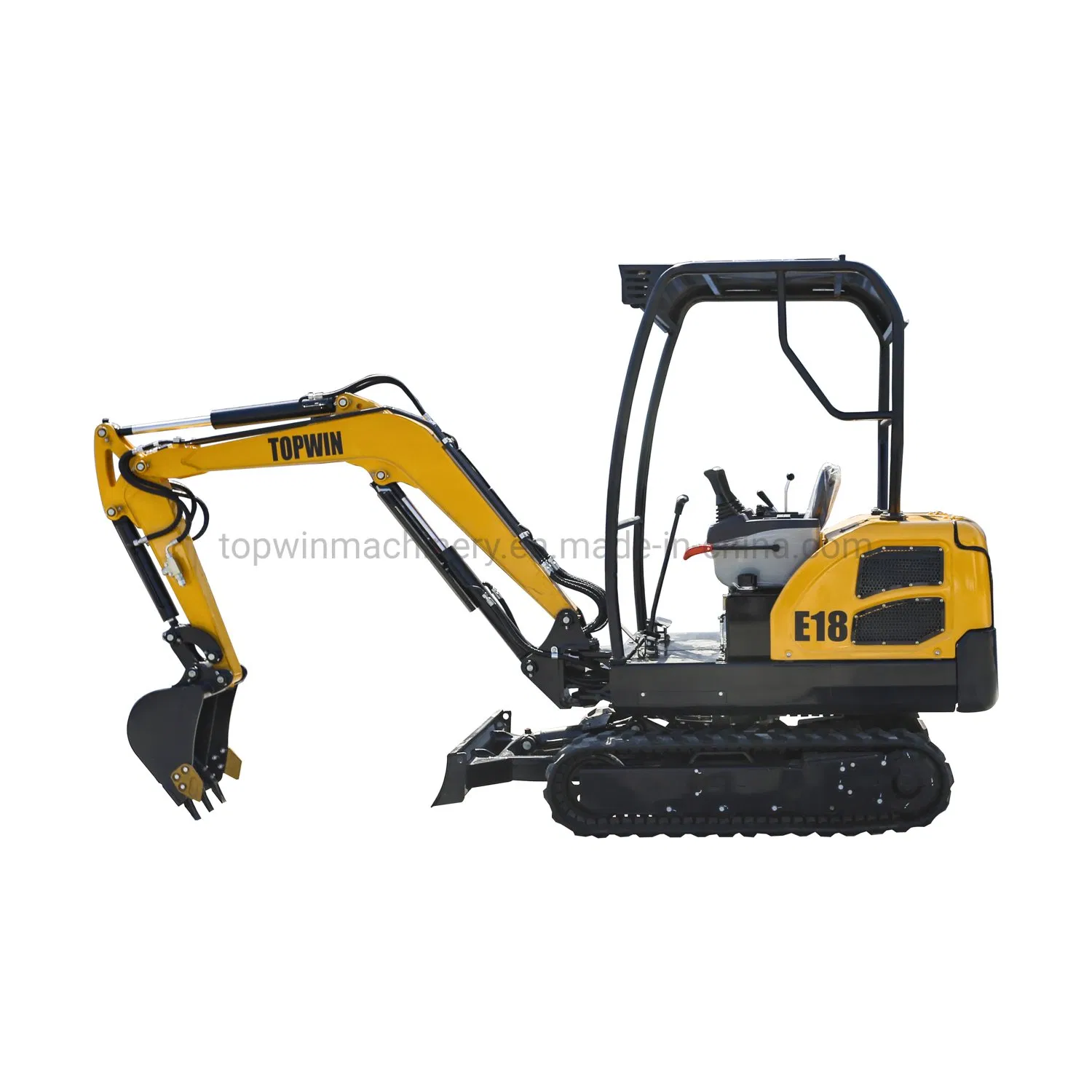

Good Quality Mini Excavator with Trailer Auger Attachment Swing Boom Quick Hitch

1 / 5

Good Quality Mini Excavator with Trailer Auger Attachment Swing Boom Quick Hitch

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

E18

Type

Crawler Excavator

Usage

Special, Marine, Mining, GM Excavator

Bucket

Backhoe

Transmission

Hydraulic

Bucket Capacity

0.06m3

Engine

Laidong,China 3te25

Rated Power

18.4kw(25HP)@2350rpm

Machine Weight

1780kg

Overall Dimension

3865mm*1050mm*2270mm

Product Description

This mini hydraulic excavator features a compact design and low oil consumption. It is ideal for small projects, garden work, farmland, municipal works, vegetable greenhouses, and trench digging. Its simple design ensures easy maintenance.

Optional Yanmar (EPA certified) / Changchai / Laidong engines.
8-way multi-way valve with buffer function and ECU control for flexible action.
Equipped with high precision pilot control system (available for 1.3 - 3 ton models).
Adopts Japan NACHI / American ETON hydraulic motors for high efficiency.
Shimadzu gear pump / DOOSAN load sensitive piston pump for up to 8 hours operation.
Side-to-side swing boom for small space operations.
Engineering rubber track with built-in steel core for durability.
German Continental natural rubber tubing with dense steel wire.

Technical Specifications

Model	E08	E10	E16	E18	E20	E25	E30	E35
Engine Power	7kw	7kw	11.8kw	18.8kw	14.1kw	18.8kw	20.5kw	20.5kw
Travel Speed	2.2km/h	1.9km/h	-	3.5km/h	4km/h	3.5km/h	4.2km/h	4.2km/h
Bucket Cap.	0.023m³	0.023m³	0.04m³	0.06m³	0.07m³	0.1m³	0.09m³	0.09m³
Operating Weight	800kg	920kg	1550kg	1780kg	2000kg	2300kg	3375kg	3515kg
Digging Depth	1000mm	1715mm	2120mm	2050mm	2400mm	2450mm	2880mm	2880mm
Digging Height	2560mm	2600mm	3310mm	3365mm	3700mm	3700mm	4600mm	4600mm

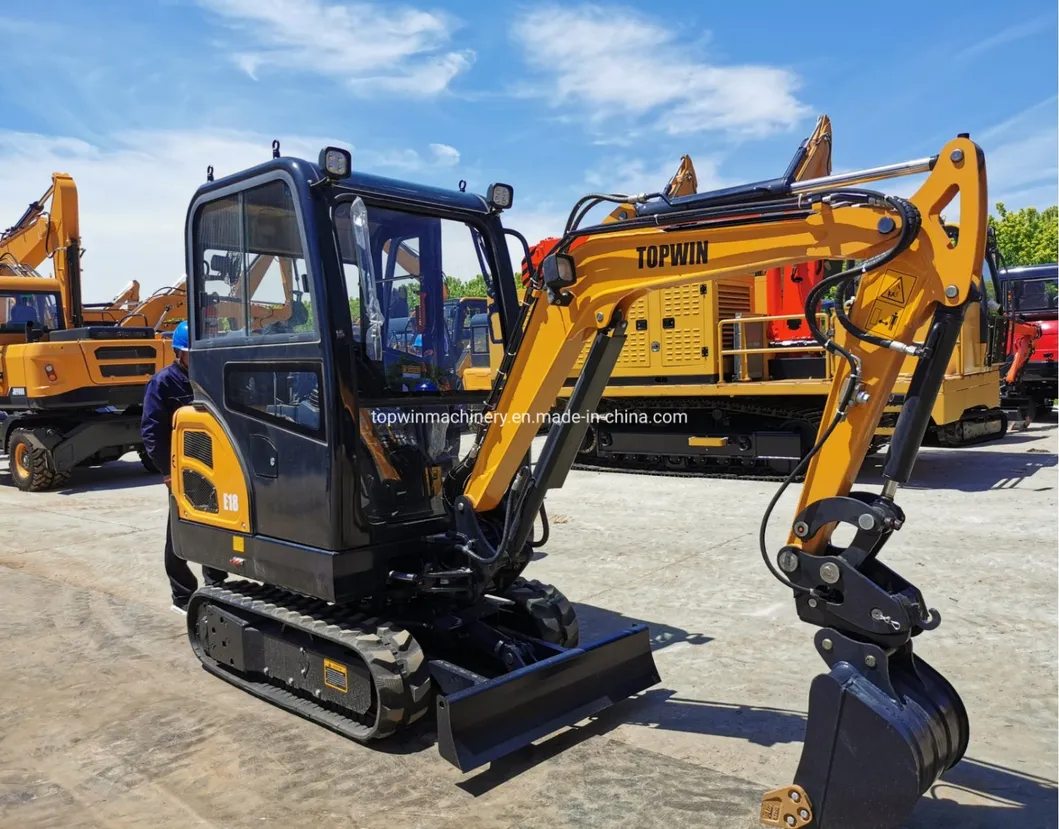

Product Details & Features

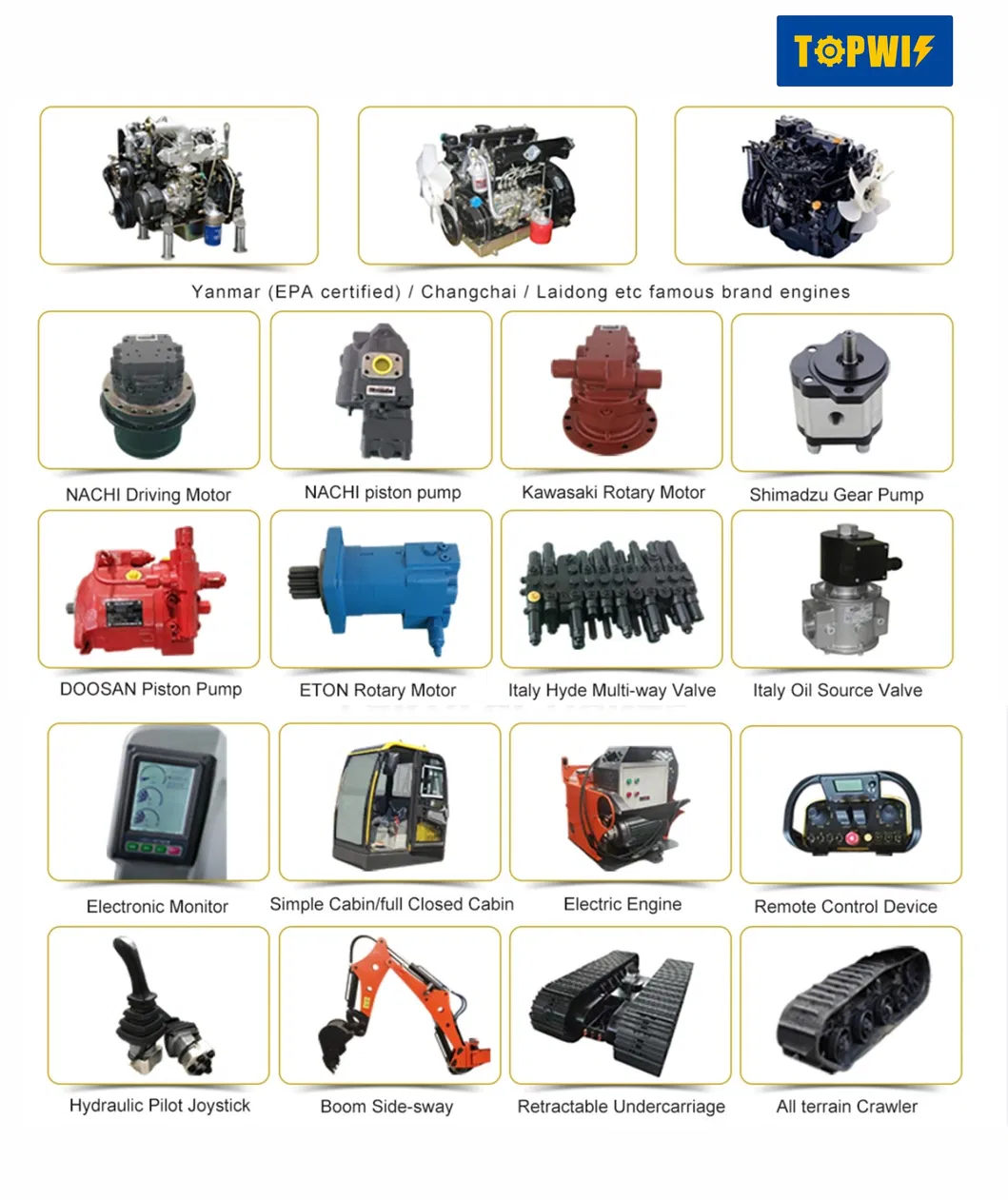

Main Configurations:

China Laidong 3TE25 engine, 18.4kw, stage III
Famous brand pump and valves
EATON brand slewing and driving motor
Hydraulic pilot servo operation system
Rubber track: 230mm
Breaker pipeline system included

Core Features:

High efficiency and low fuel consumption
Imported hydraulic components for precise operation
Suitable for hills, muddy areas, and narrow spaces
Short turning radius and boom deflection
Multi-purpose: excavation, crushing, drilling, grabbing

Attachments & Tools

A tool for every job:

• Buckets (General/Ribbed)
• Ditch Maintenance Buckets
• Tilting Grading Bucket
• Jack Hammer / Breakers
• Quick Hitches
• Auger / Earth Drill
• Log/Stone/Steel Grapple
• Ripper tooth / Rake
• Hydraulic pulverizer
• Pile hammer

Certifications & Shipping

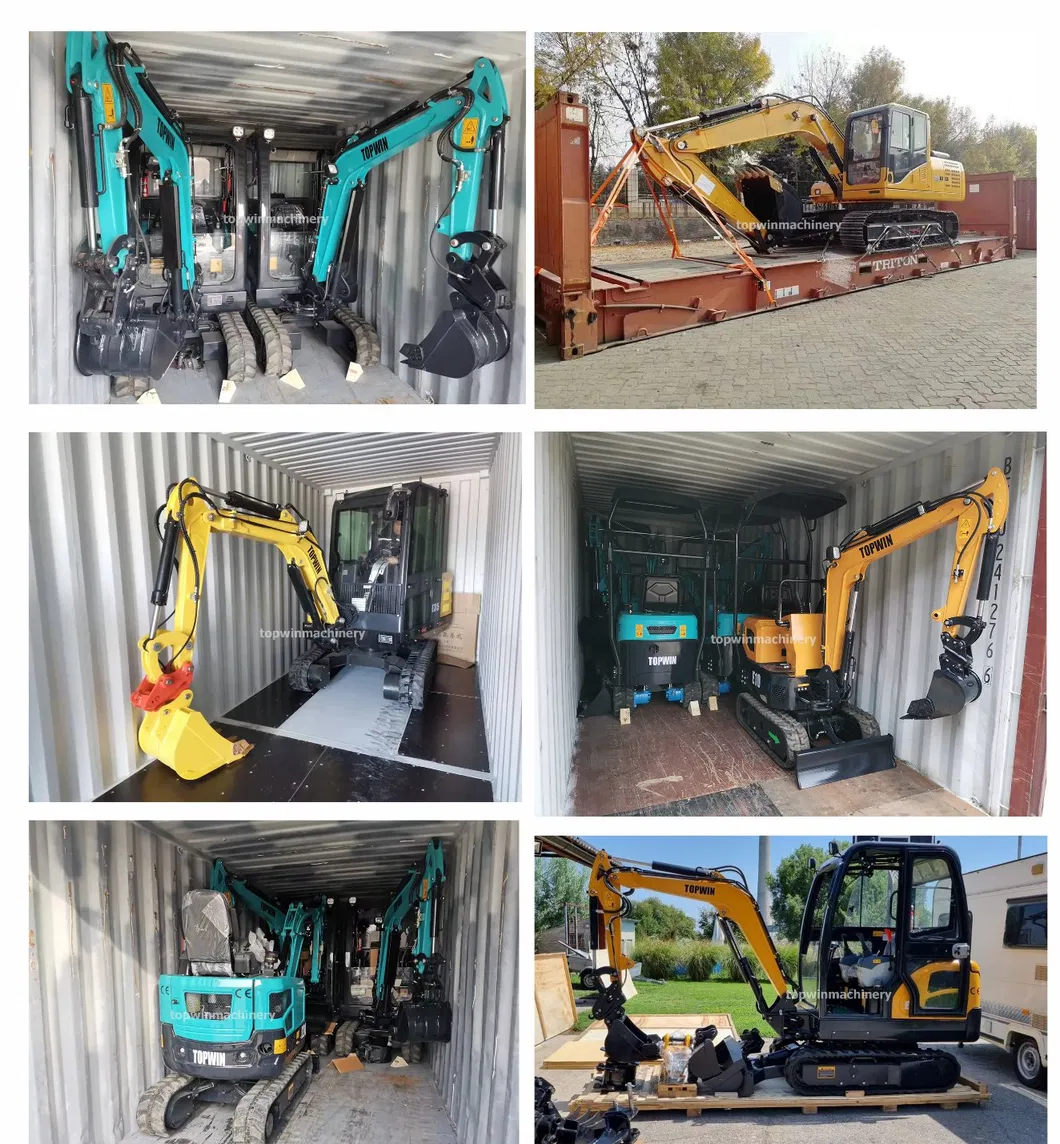

Container Loading Capacity:
• 4 units of 1.8ton mini excavators in a 20 feet container
• 8 units of 1.8ton mini excavators in a 40 feet container

About Us

As a one-stop solution provider for construction, mining, and agricultural machinery, we have over 10 years of experience serving clients globally in the USA, Canada, Brazil, Australia, and beyond. We help our clients succeed by offering high cost-effective and reliable machines.

Frequently Asked Questions

Q: Can I test the machine before ordering?

A: Yes, we have dealers and existing customers in various regions such as Brazil, Australia, and Europe. We can recommend the closest location for you to test the equipment.

Q: What is the standard delivery time?

A: The typical delivery time is around 20 working days. During peak production seasons, this timeframe may be slightly longer.

Q: What are the available payment terms?

A: We normally require a 30% deposit via TT for production, with the remaining 70% balance due before shipping. Irrevocable LC at sight is also accepted.

Q: What color options are available?

A: Standard colors include Yellow, Red, Blue, Black, White, Orange, and Green. We can also customize the color based on your specific requirements.

Q: What kind of warranty and after-sales service is provided?

A: We provide a 1-year warranty for each machine. If any parts fail due to quality issues within this period, new parts are sent free of charge. We offer full guidance for service and maintenance.

Q: Can I see the production progress?

A: Yes, we provide updates during the production process via video calls and can send photos or videos for your reference.
