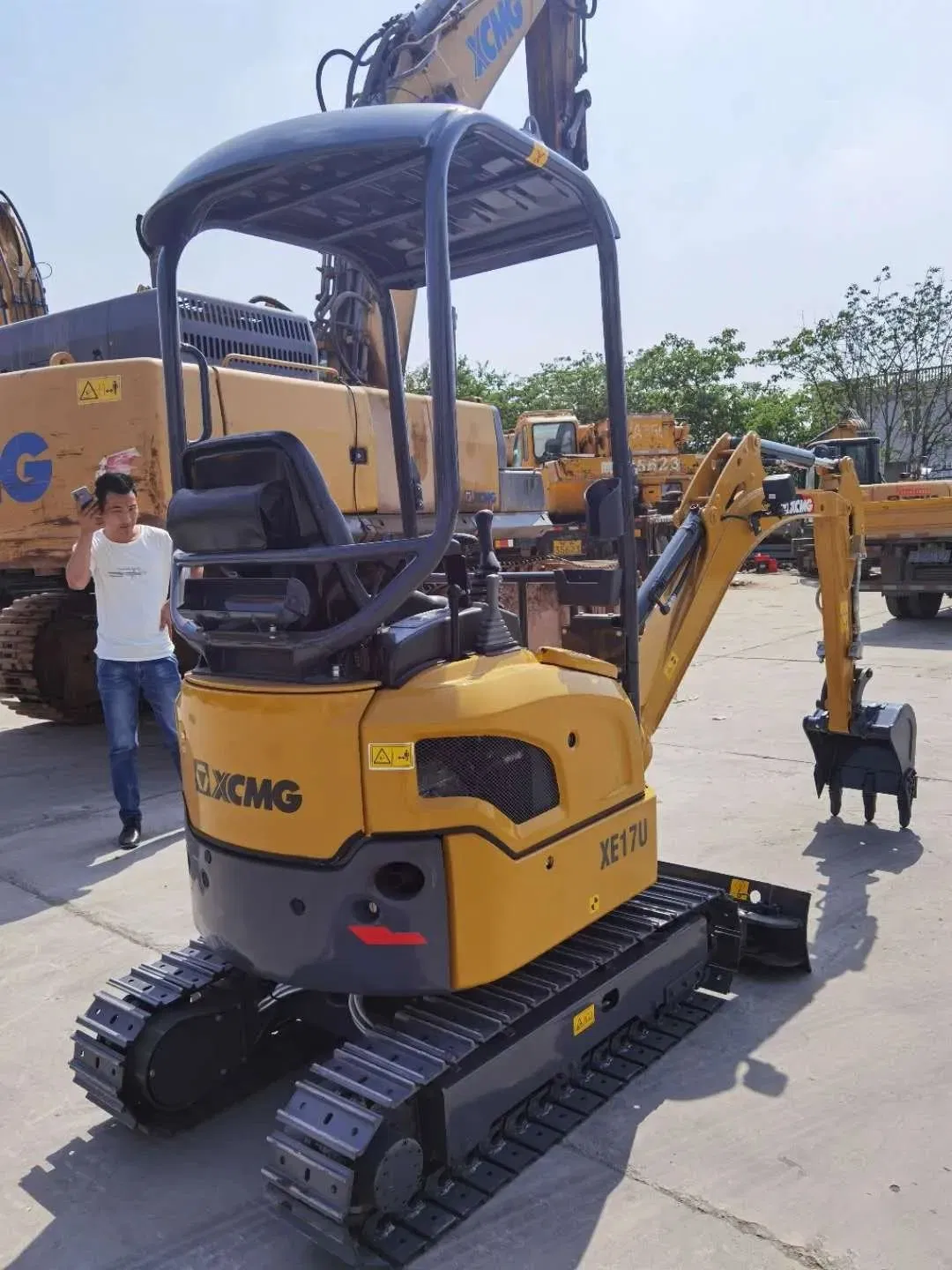

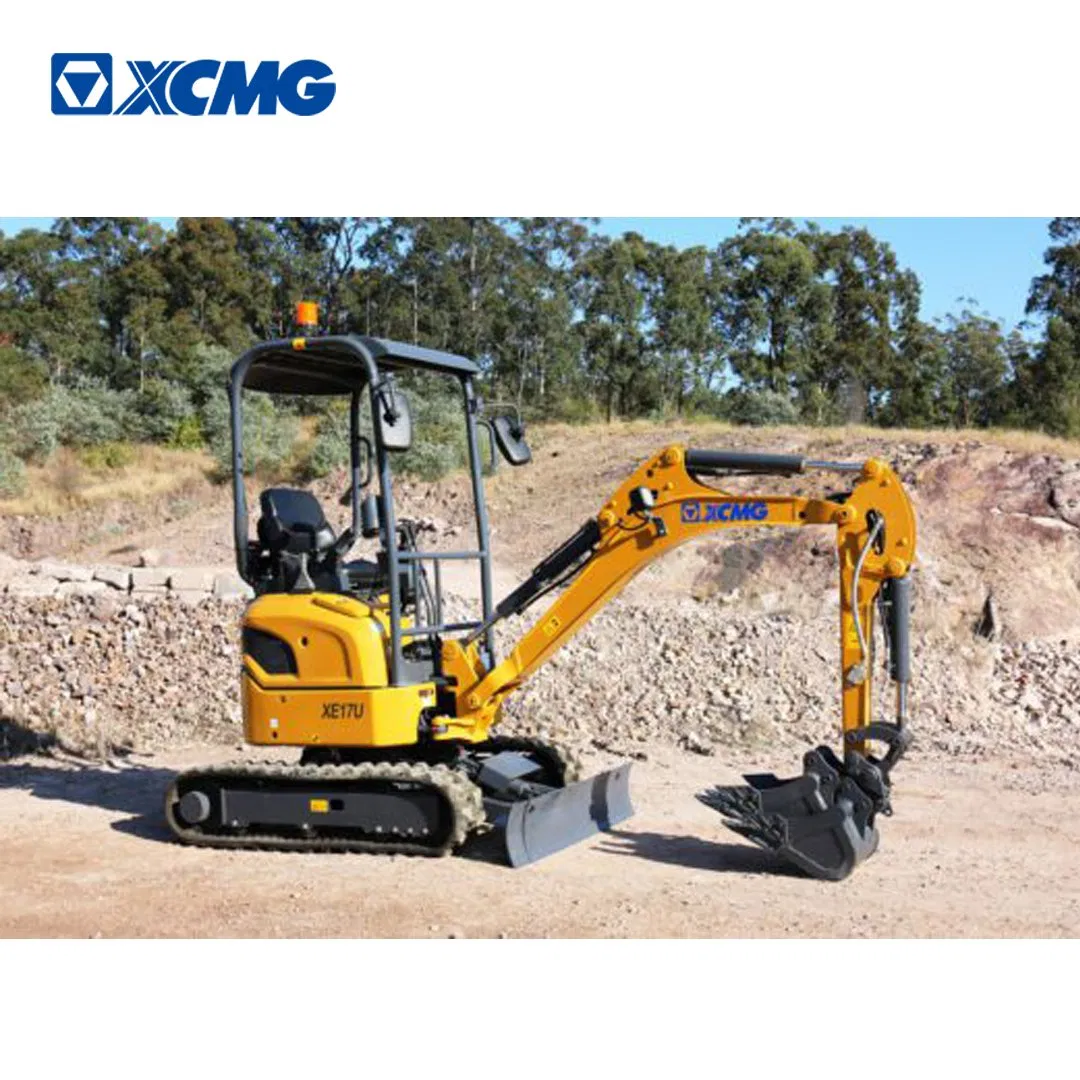

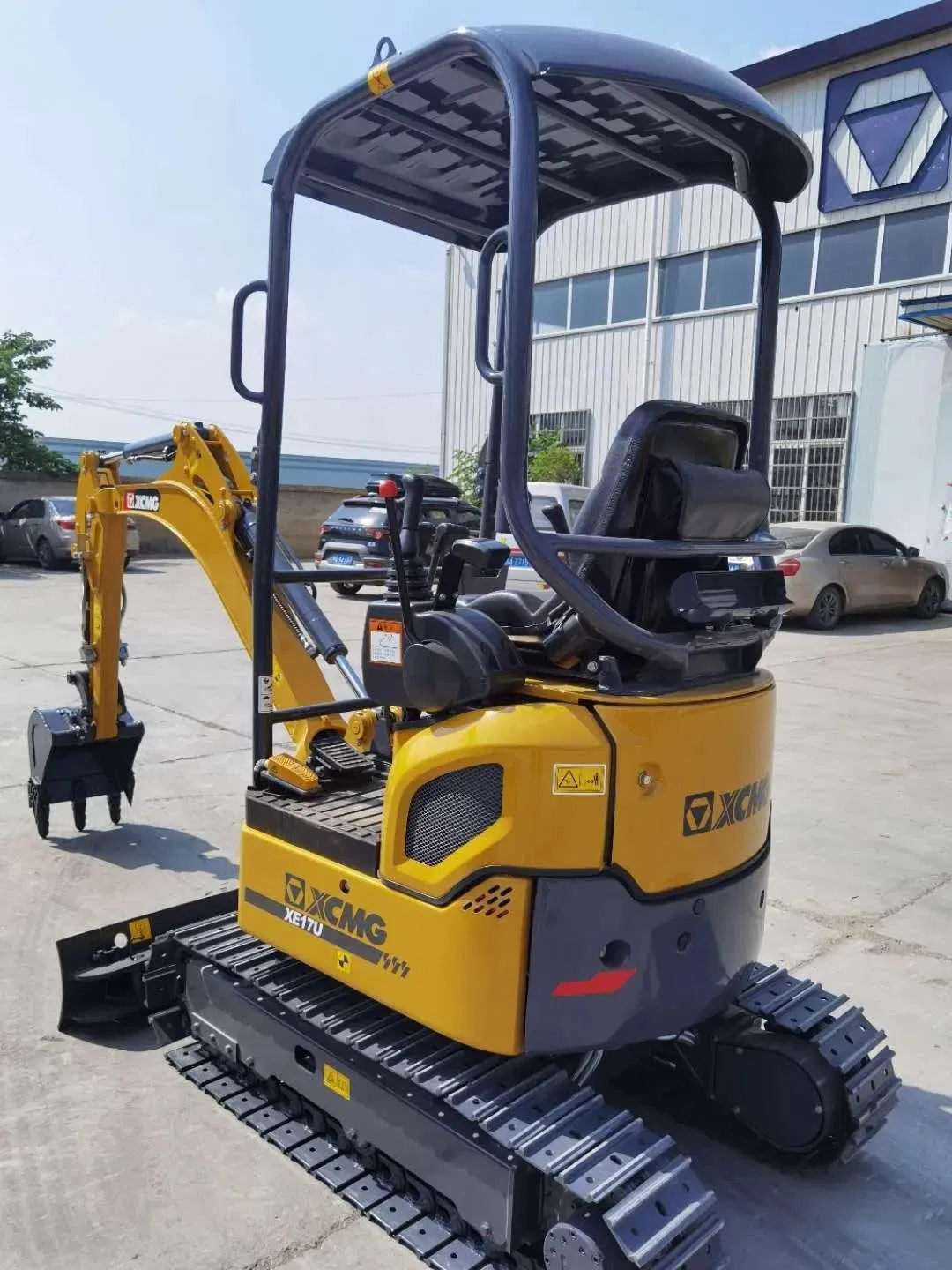

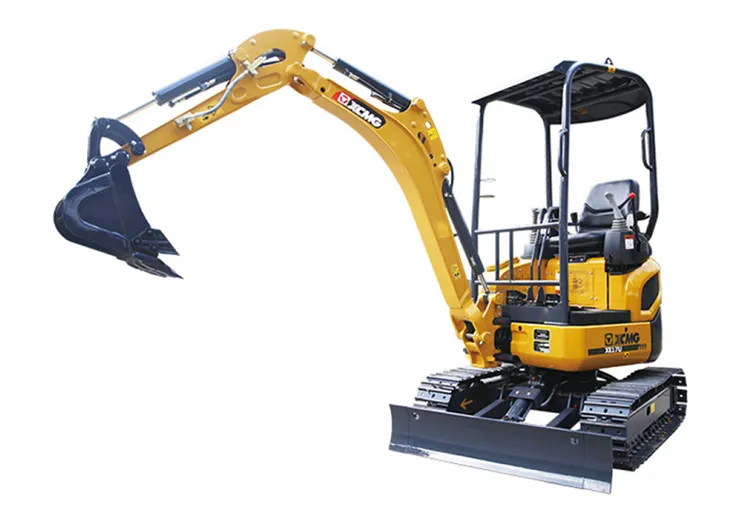

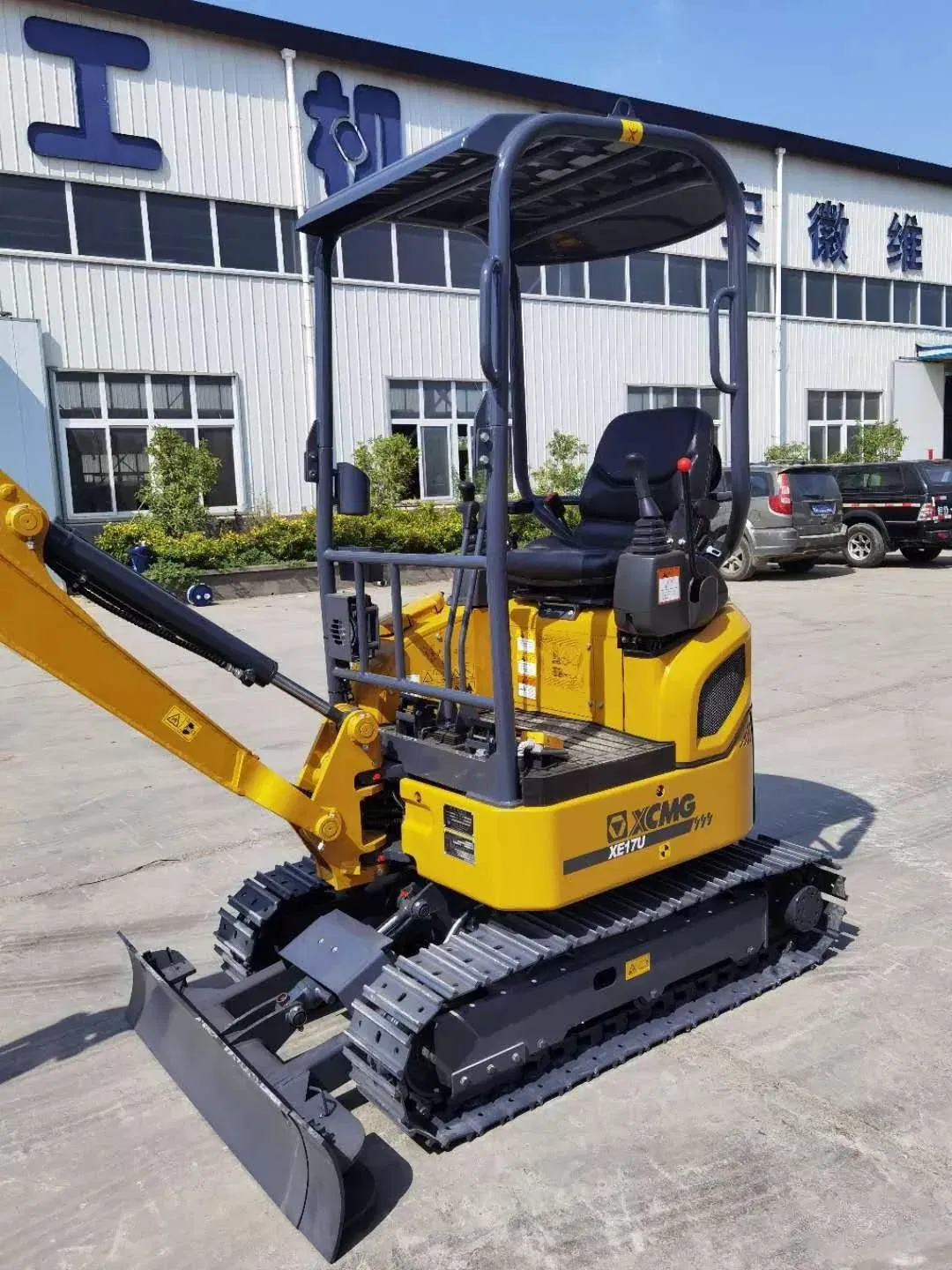

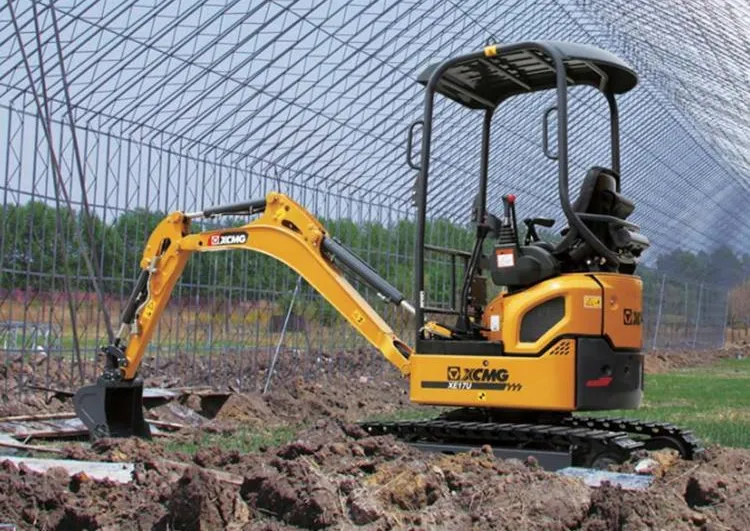

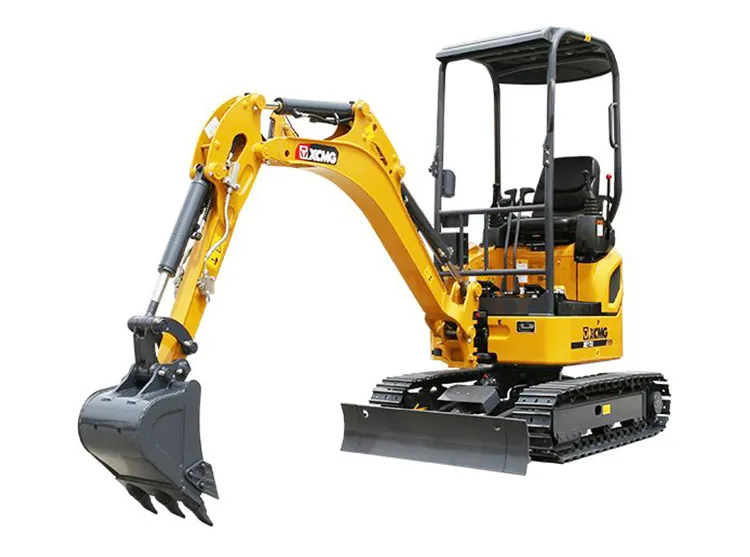

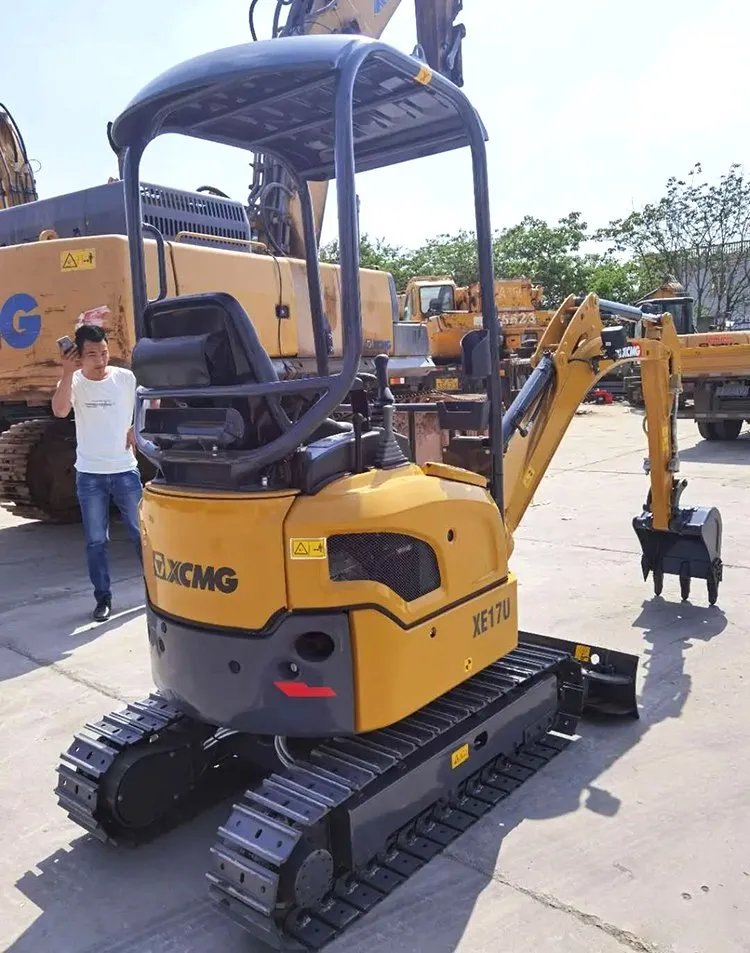

XE17U Hydraulic Small Micro Crawler Bagger Mini Excavator
Ideal for tough jobs in tight corners that demand precision control and state-of-the-art performance, the XE17U is ready to work. It includes many advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing, short and long arm, and powerful digging forces.

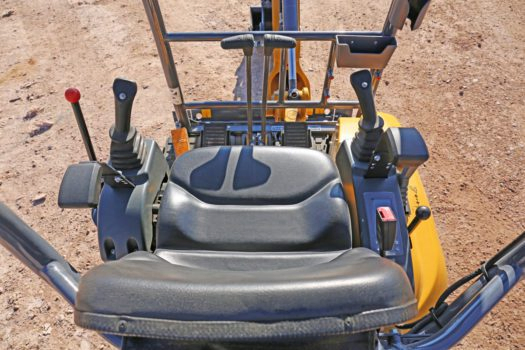

This machine is built around the operator, providing optimal ergonomics for operators of all sizes. Access to the seat is convenient thanks to the large entry. With zero-tail swing, even the tightest space becomes an efficient workplace. The four-point supporting cab ensures strength and a widened visual field for higher operating safety.
Key Advantages and Highlights:
| Category | Description | Unit | XE17U Value |
|---|---|---|---|
| Weight | Operating weight | Kg | 1795 |
| Bucket | Bucket capacity | m³ | 0.04 |
| Engine | Model | / | D902 |
| No. of cylinders | / | 3 | |
| Output power | kw/rpm | 11.8/2300 | |
| Displacement | L | 0.898 | |
| Performance | Travel speed(H/L) | km/h | 3.1/2.1 |
| Gradeability | ° | 30° | |
| Bucket digging force | kN | 16 | |
| Capacity | Fuel tank capacity | L | 17 |
| Hydraulic tank capacity | L | 18 | |
| Dimensions | Overall length | mm | 3560 |
| Overall width | mm | 990/1240 | |
| Overall height | mm | 2350 |
