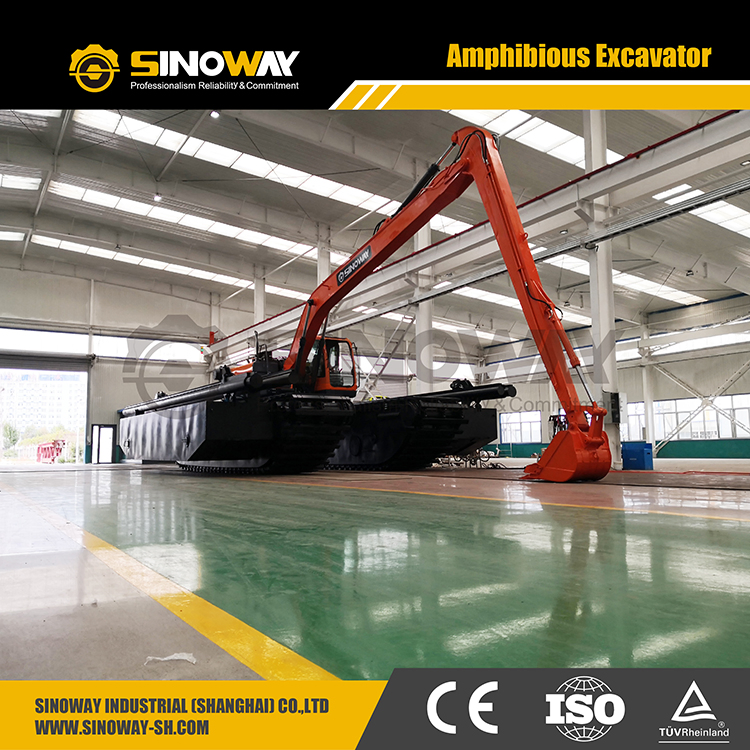

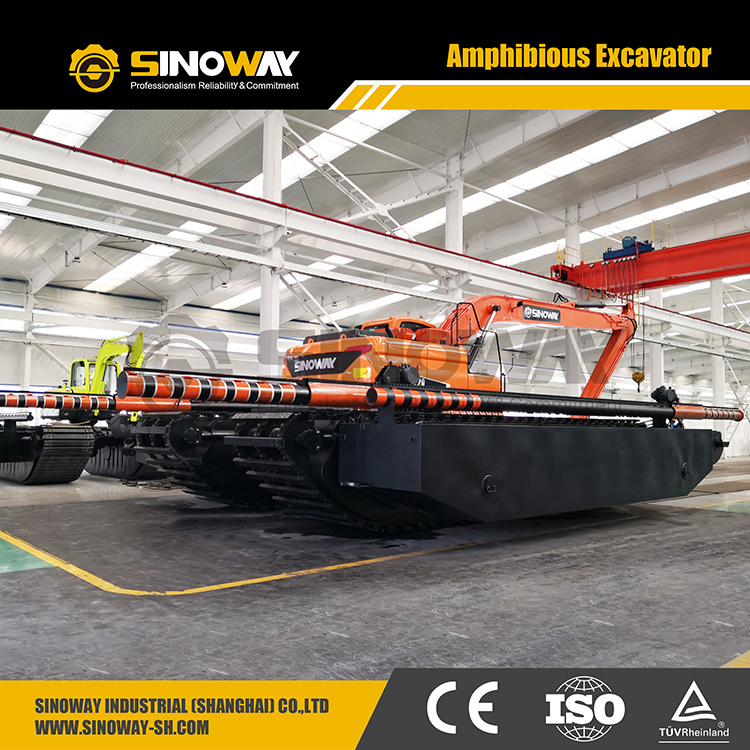

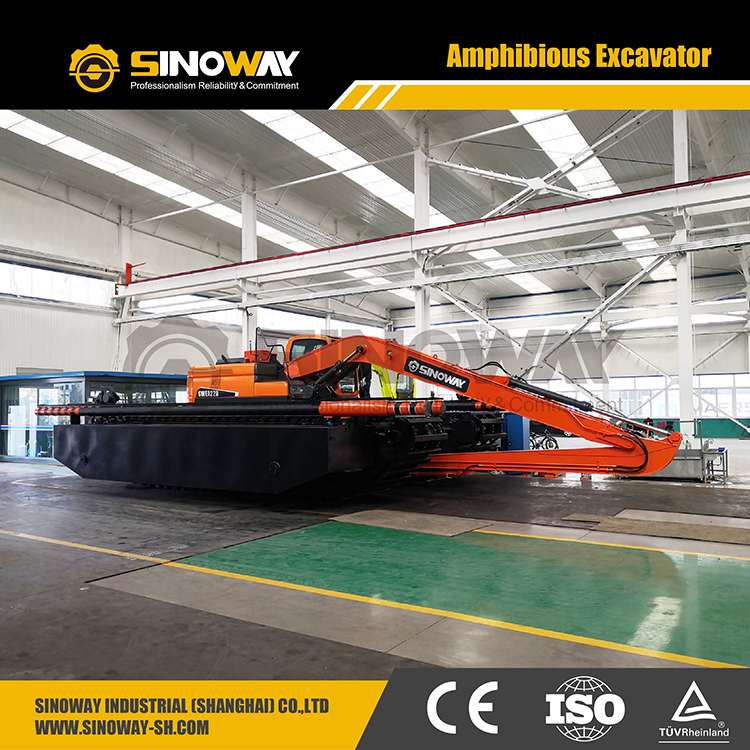

Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
1 / 5
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale
Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale

Amphibious Mini Excavator Small Water Excavator with Long Reach Arm for Sale

Customization: Available
After-sales Service: Available
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.SWEA220
TypeCrawler Excavator
UsageSpecial, Marine, Mining
BucketBackhoe
TransmissionHydraulic
Drive TypeInternal Combustion
Bucket Capacity1.0~1.5m³
SizeLarge-Scale
CertificationISO9001: 2000, ISO14001
ConditionNew
EngineDoosan/Cummins
Hydraulic SystemDoosan
Operating Weight41.5 Ton
Chain NumberThree
Swamp Excavator Overview
Amphibious Swamp Excavator
Product Show

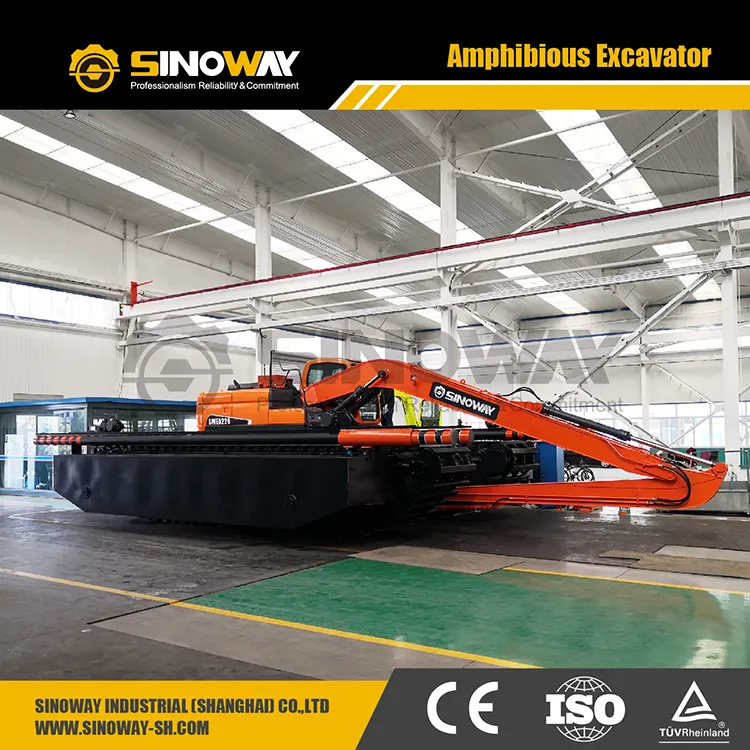

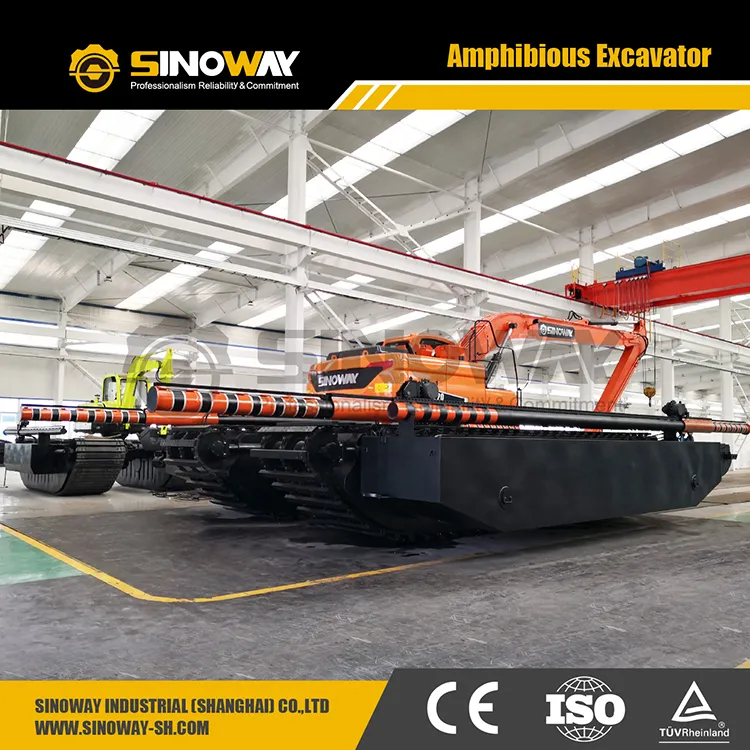

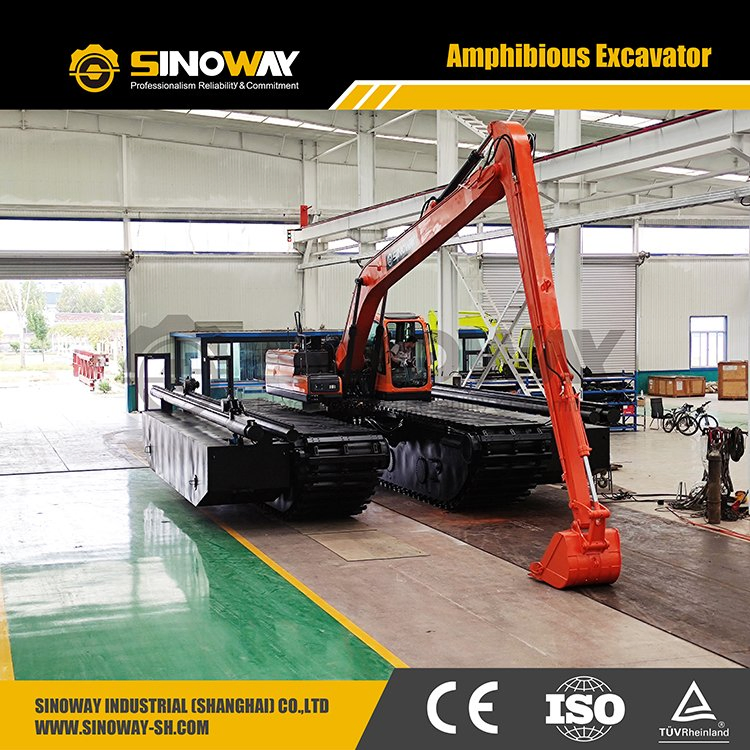

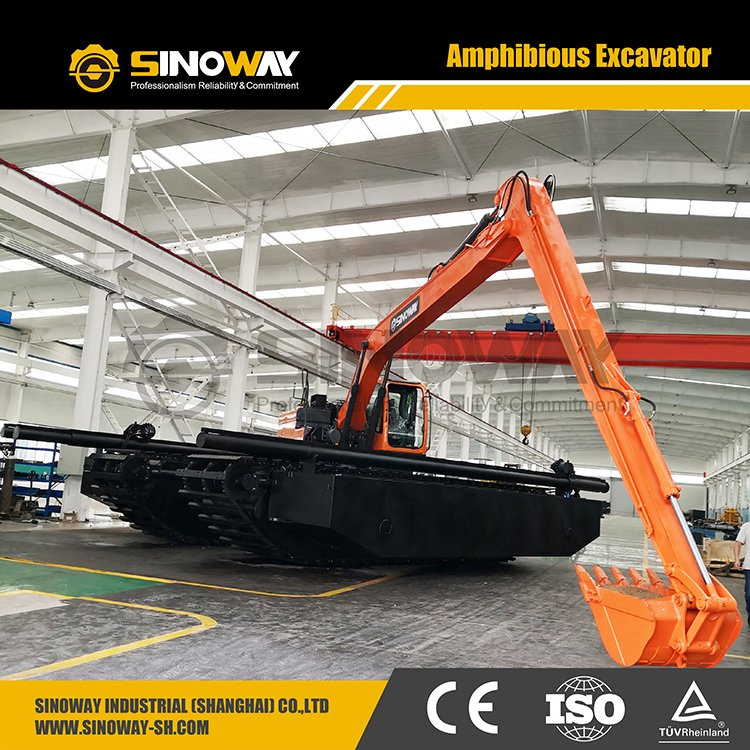

Amphibious Excavator Front View Amphibious Excavator Side View
Machine Introduction

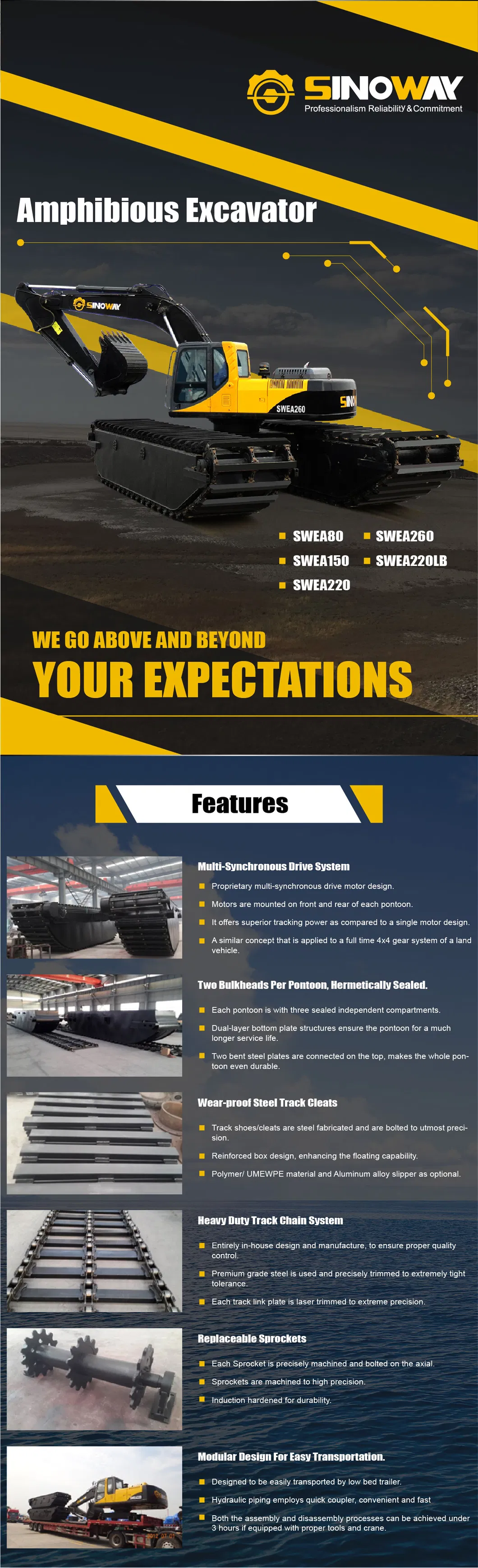

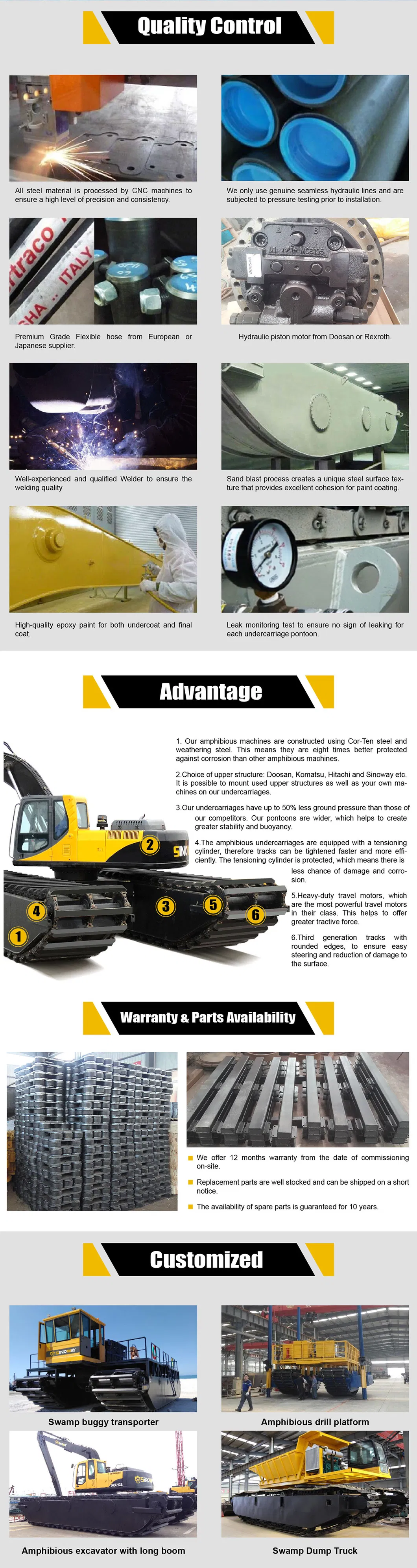

Machine Details 1 Machine Details 2
Technical Specifications
Engine System
ModelCummins/Isuzu
TypeSix-cylinder, water-cooled turbocharged
Rated Power106~125KW
Rated Speed2100rpm
Main Technical Specification
Operating Weight30000~42000Kg
Standard Bucket Capacity0.5~1.1m³
Slewing Speed11rpm
Stick Digging Force110KN
Bucket Digging Force150KN
Hydraulic System
Main Pump / Valve / MotorKAWASAKI
Hydraulic Flow Rate2x235L/min
Hydraulic Pressure32MPa
Traveling System
Traveling Speed0~5.4km/h
Grade Ability65%
Ground Pressure0.0135MPa
No. of Chains3
Dimensions & Scope
Overall Length/Width/Height11200 / 5350 / 3900mm
Ground Clearance1192mm
Pontoon Length/Width8500~10200 / 1760mm
Max. Digging Depth6940mm
Max. Reach10290mm
Main Applications

✔ River and Beach Earth Moving
✔ Swamp and Wetland Works
✔ Dredging and Delta Works
✔ Waterway Deepening Projects

Why Choose This Model
Feature Comparison
Frequently Asked Questions
? What are the primary uses for this swamp excavator?
It is specifically designed for soft terrain environments such as river dredging, swamp works, beach earth moving, and deepening waterways.
? How does it manage to stay afloat or move on soft mud?
The machine features a specialized tracked pontoon structure that results in an extremely low ground pressure of 0.0135MPa, preventing it from sinking.
? Which engines are used in this model?
This excavator is equipped with high-performance Cummins, Isuzu, or Doosan engines, providing reliable power and efficiency for heavy-duty tasks.
? What brand of hydraulic components are installed?
The core hydraulic system, including the main pump, main valve, and motor, utilizes world-class KAWASAKI components.
? What is the maximum digging depth and reach?
The SWEA220 offers a maximum digging depth of 6,940mm and a maximum horizontal reach of 10,290mm.
? Is the equipment certified for international standards?
Yes, the manufacturing processes comply with ISO9001:2000 and ISO14001 certifications ensuring high quality and environmental standards.
