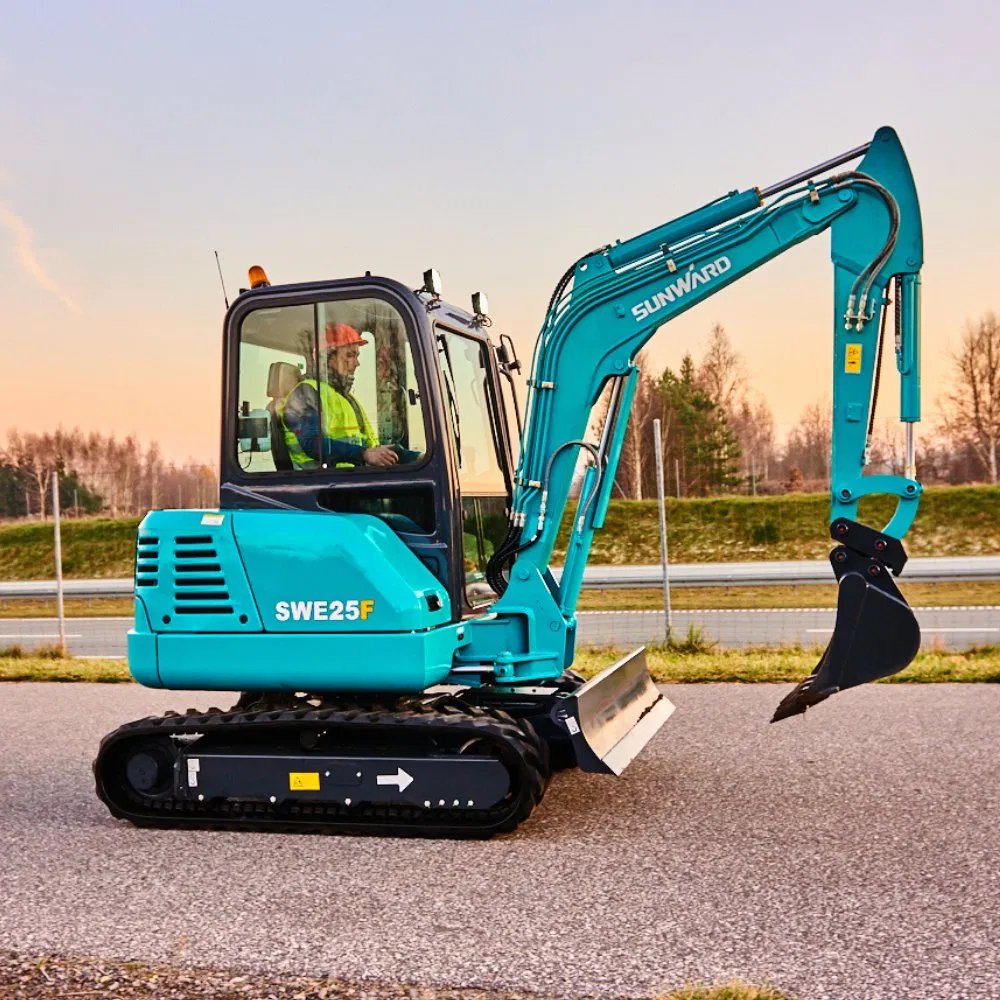

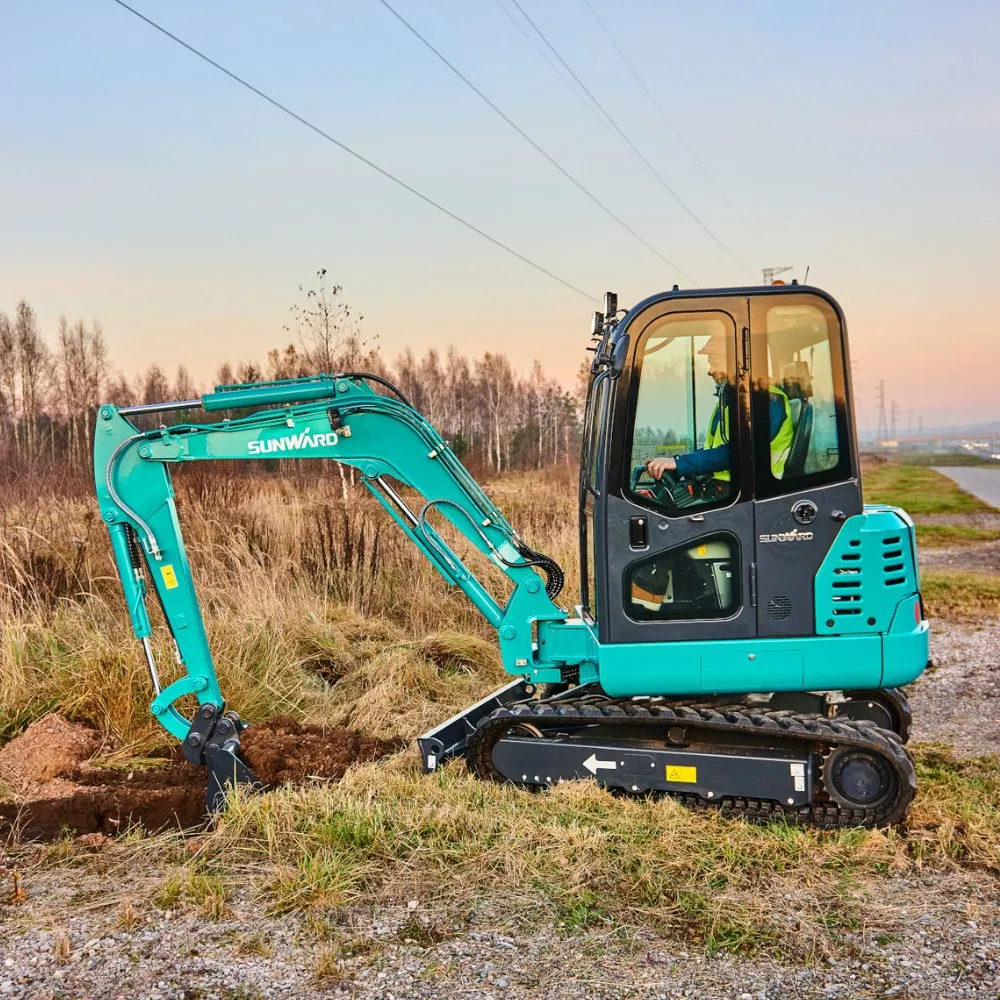

Mini-pelle SWE25F compact excavator zero-tail exceptional digging forces of 24 kN bucket 14 kN arm maximum reach of over 4.6 meters 4845 mm long
The SWE 25F is designed to meet European customer needs, featuring EU certification and a compact design perfect for versatile applications.

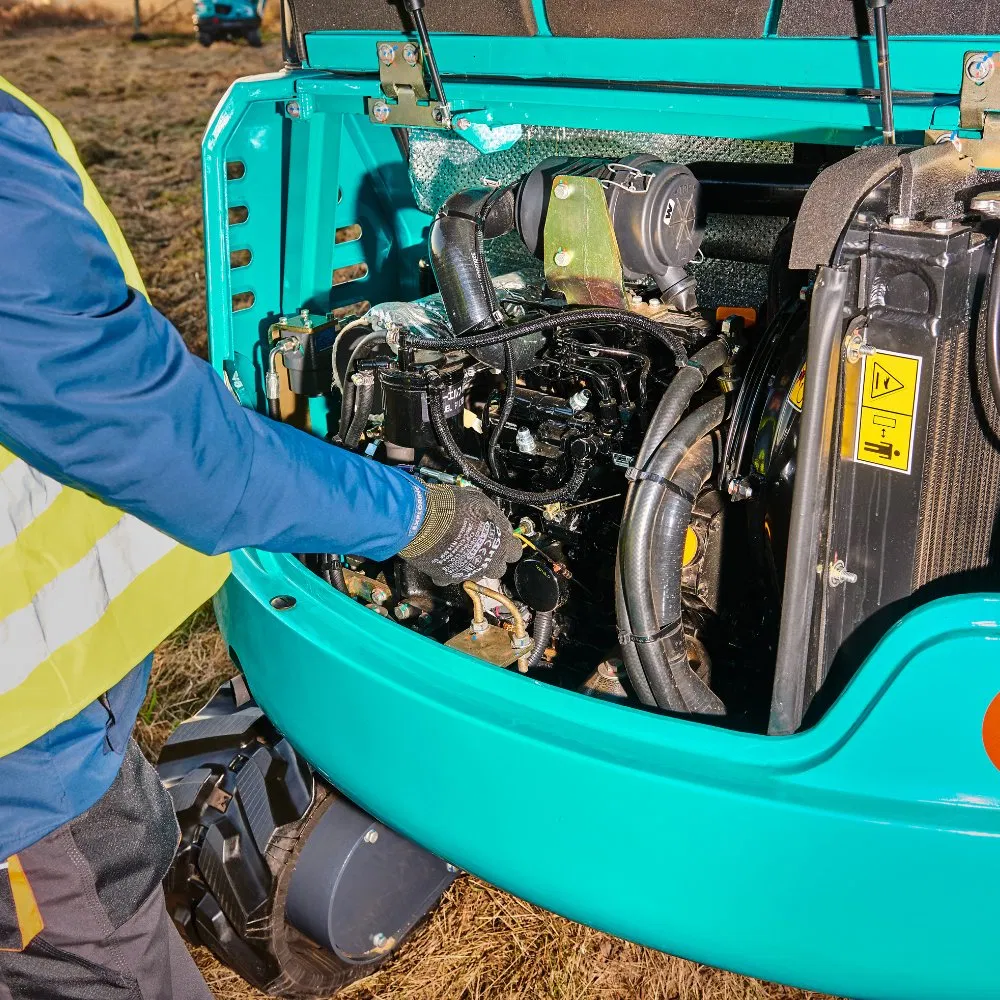

The powerful Yanmar 3TNV80F-SPSU engine features low fuel consumption, low noise, and vibration levels. This 14.6 kW industrial diesel engine is both EPA Final Tier 4 and EU Stage V compliant, ensuring intensive work in severe environments while matching perfectly with the hydraulic system for smooth operation.
Key components are carefully selected from Japanese premium brands like NACHI and Kayaba for hydraulic pumps, traveling, and swing motors. These components are efficient, reliable, and space-saving, contributing to the machine's overall reliability.
The SWE 25F has exceptional digging forces of 24 kN (bucket) and 14 kN (arm). Its boom cylinder design provides a maximum reach of over 4.6 meters (4 845 mm) long, rivaling larger competitors on the market.
Truly compact (1 500 mm width) and lightweight (2 640 kg), it allows easy, safe, and secure transport. With 3 separate auxiliary lines as standard, a wide range of attachments can be easily fitted to answer a variety of applications.
The SWE 25F offers large space for all service points. Covers at the rear and side provide direct access to the fuel tank and centralized grease fittings, resulting in faster maintenance and lower costs.
| ENGINE PARAMETERS | |
|---|---|
| Brand | YANMAR |
| Model | 3TNV80F-SPSU |
| Type | 3-cylinder 4-stroke water cooled |
| Displacement | 1.267L |
| Power | 14.6kW/2400rpm |
| DIMENSIONS | |
| Counterweight Clearance | 546mm |
| Tail Swing Radius | 1050mm |
| Shipping Length | 4262mm |
| Shipping Width | 1500mm |
| Shipping Height | 2400mm |
| WORKING RANGES | |
| Max. Digging Depth | 2705mm |
| Max. Digging Reach | 4845mm |
| Bucket Digging Force | 24kN |
| Stick Digging Force | 14kN |
| Swing Speed | 10rpm |
