Excavators are also called diggers, mechanical shovels, or 360-degree excavators. Compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Zero tail swing gives you better maneuverability on the most restricted jobsite.
Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.

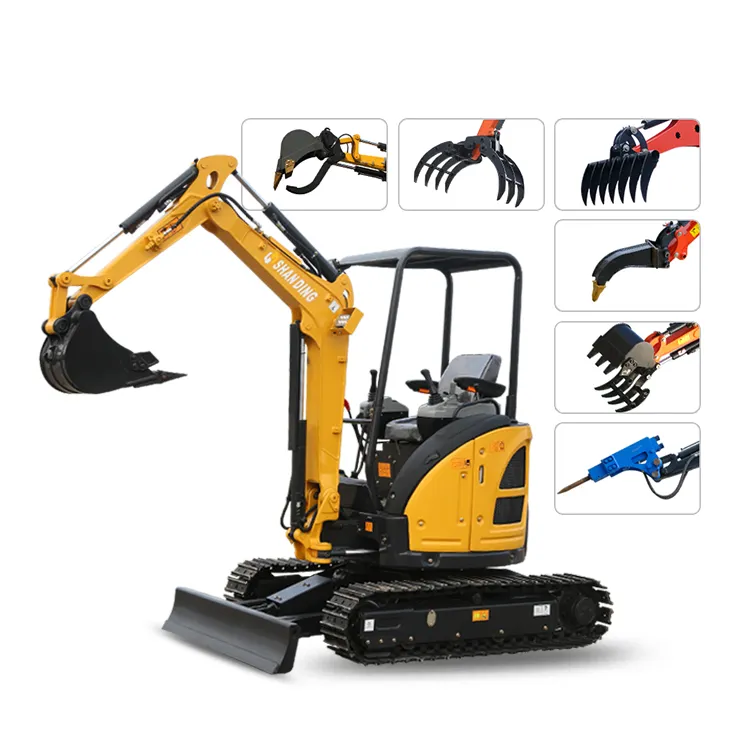

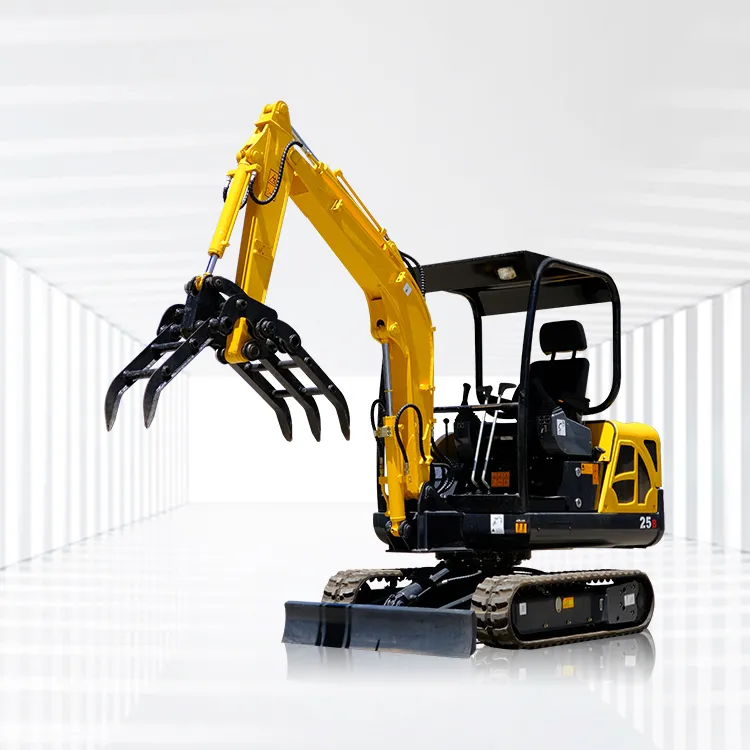

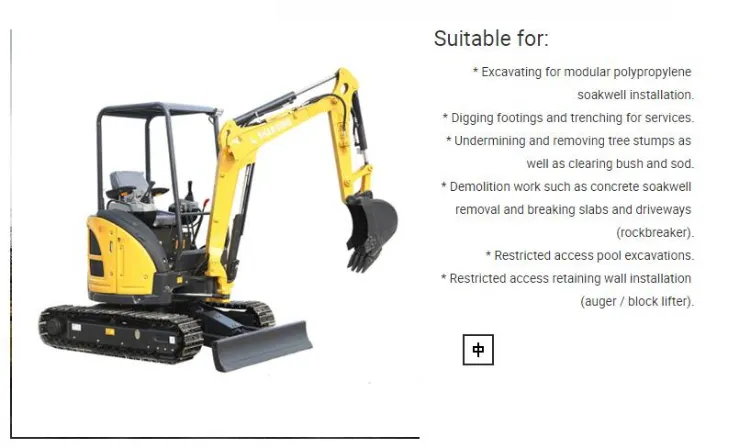

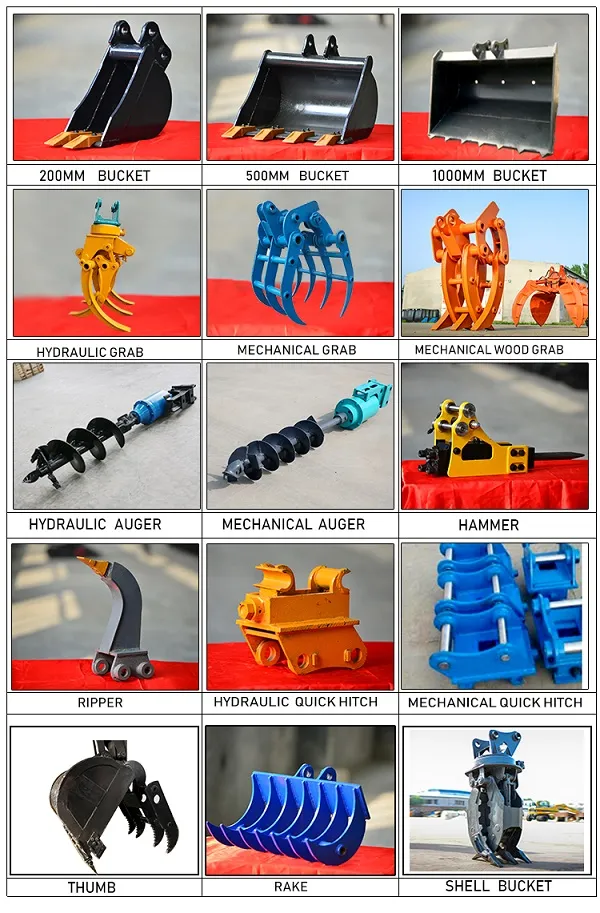

■SD25U is a hydraulic excavator, a real tailless mini excavator. It uses EPA/Euro V standard Perkins/Yanmar engine, boom swing; cabin optional; plunger pump; double speed walking motor; can work with hammer, auger, grab, rake etc.
| Machine Parameters | |
|---|---|
| Model | SD25U |
| Operating Weight | 2.5 ton |
| Bucket Capacity | 0.1m³ |
| Rated Power | 14.7 kw / 15.2kw |
| Max. Hydraulic System Pressure | 18mpa |
| Max Walking Speed | 2.8-4.1km/h |
| Max Digging Force | 16kn |

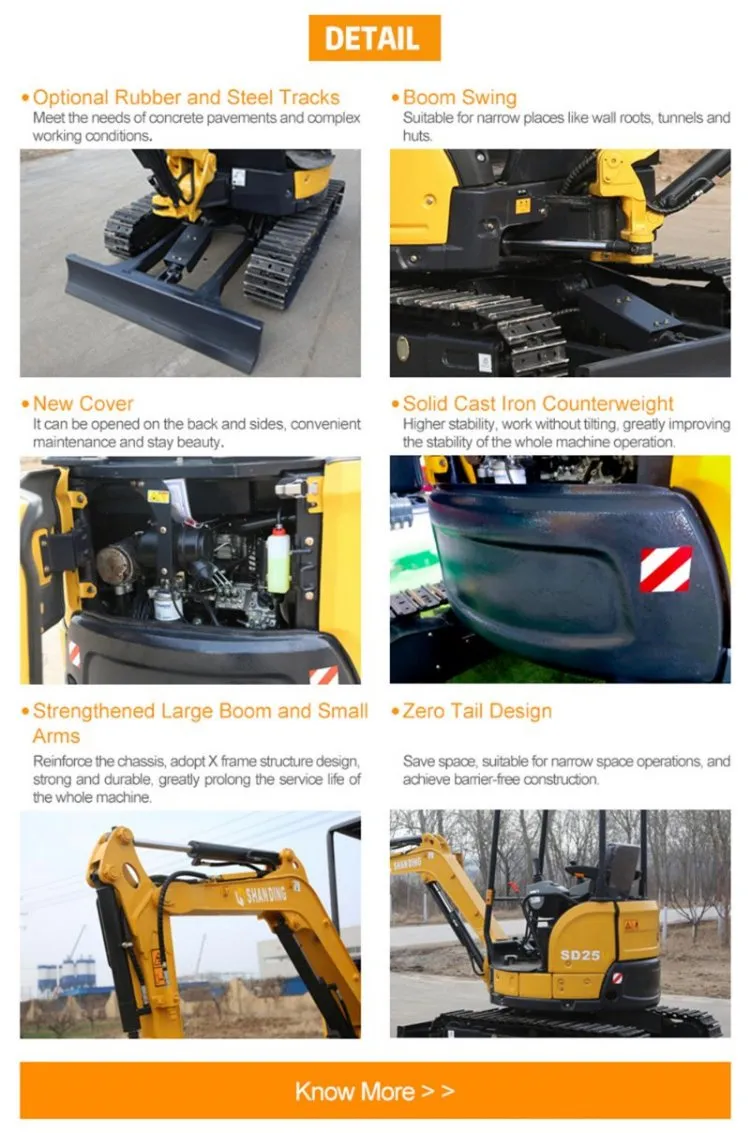

| Boom Swing Function | Yes |

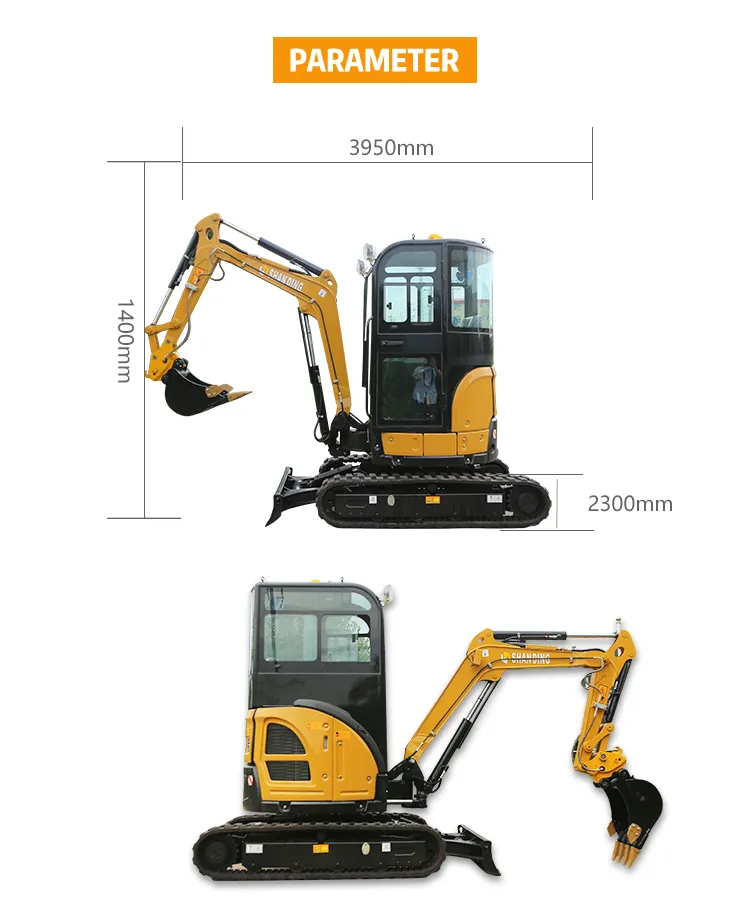

| Dimensions | |
| Overall Length | 3950mm |
| Overall Width | 1300mm |
| Overall Height | 2300mm |
| Track Width | 250mm |
| Working Range | |
| Max. Digging Height | 4300mm |
| Max. Digging Depth | 2550mm |
| Max. Digging Radius | 4150mm |
| Machine Configuration | |
| Engine Model | Perkins / Yanmar |
| Main Pump | Taifeng (Plunger pump) |
| Walking Motor | LMT-03C Double speed |
