BTEra Excavator
1 / 5

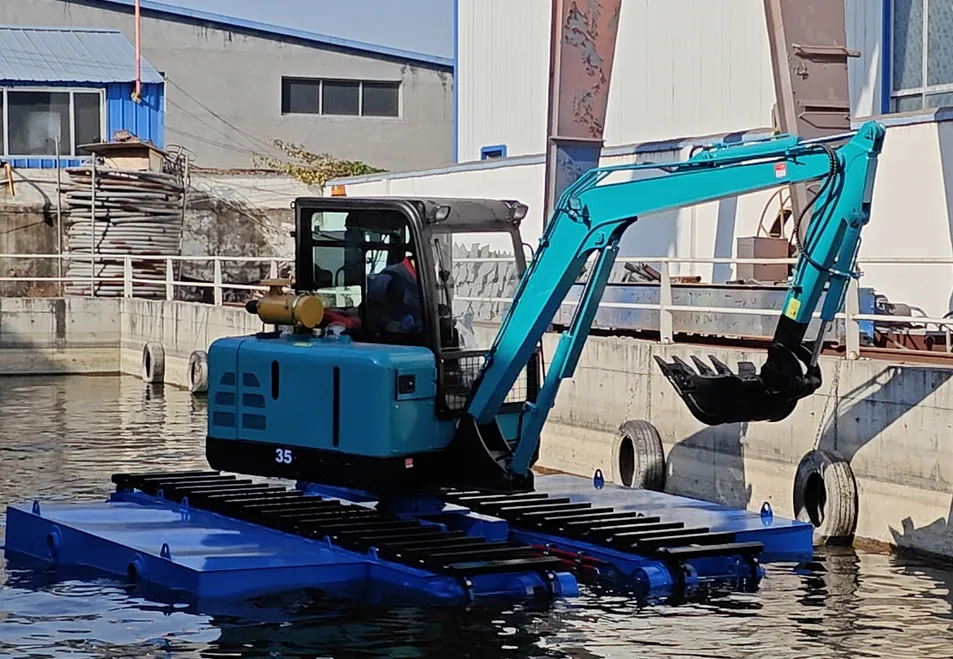

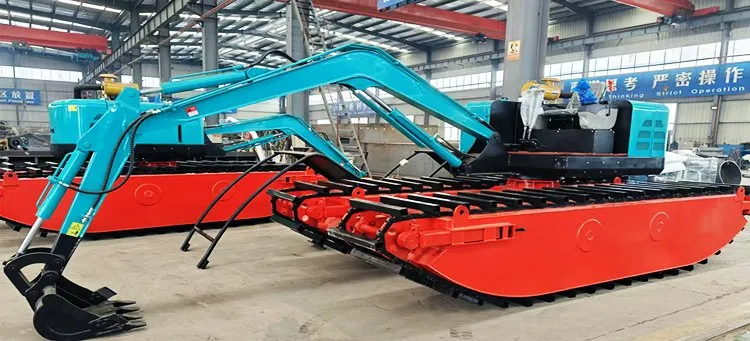

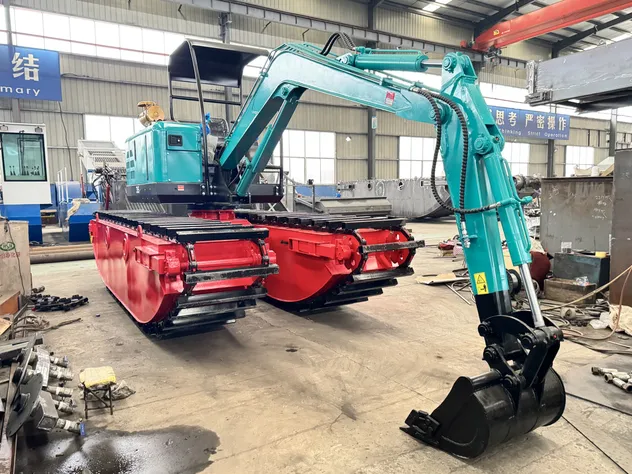

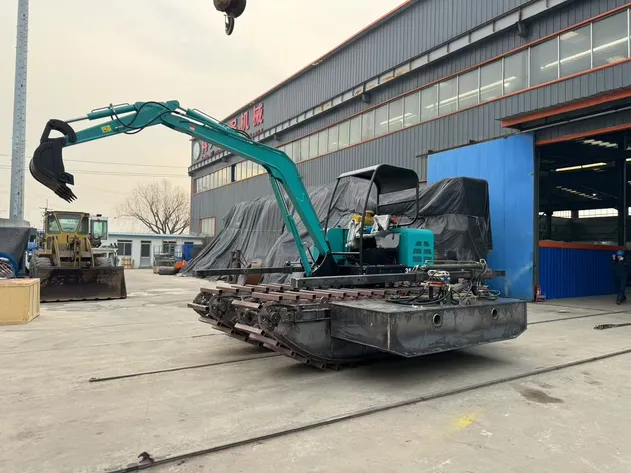

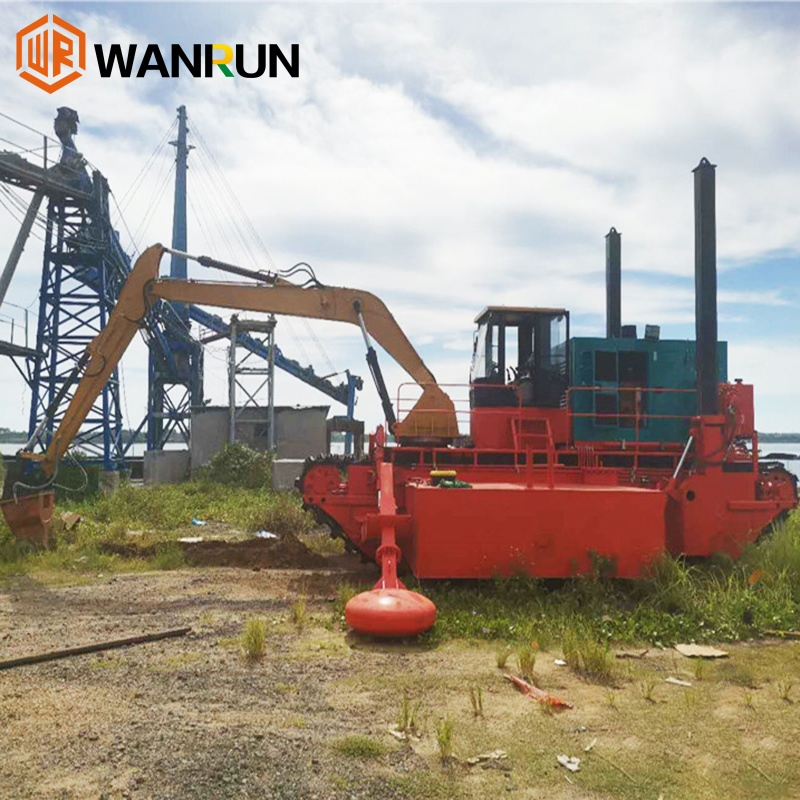

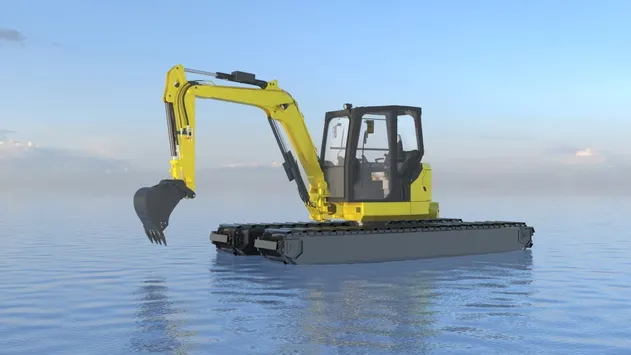

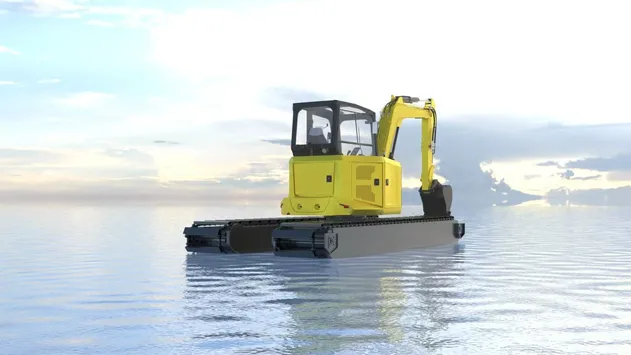

This multi-purpose excavator is specifically engineered for land, swampy soft ground, and shallow water environments. Featuring a multihull pontoon structure and sealed box-shaped track shoes, it ensures safe maneuverability on silt and water surfaces.

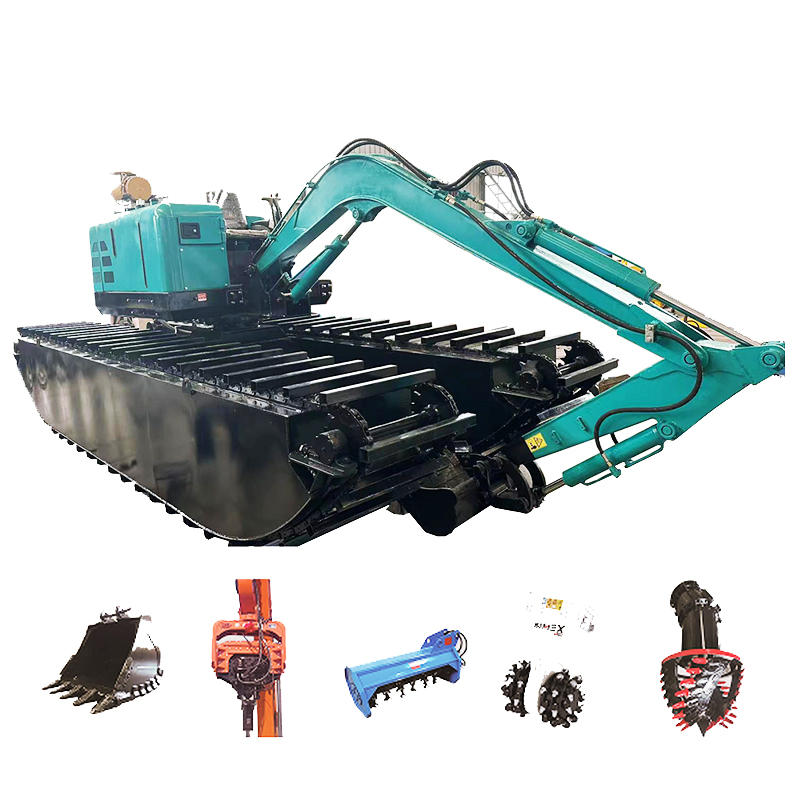

Multifunctional Capabilities: The front-end attachment system is versatile, allowing for the installation of gun heads, reamer heads, and buckets to maximize work efficiency and operational comfort across various dredging projects.

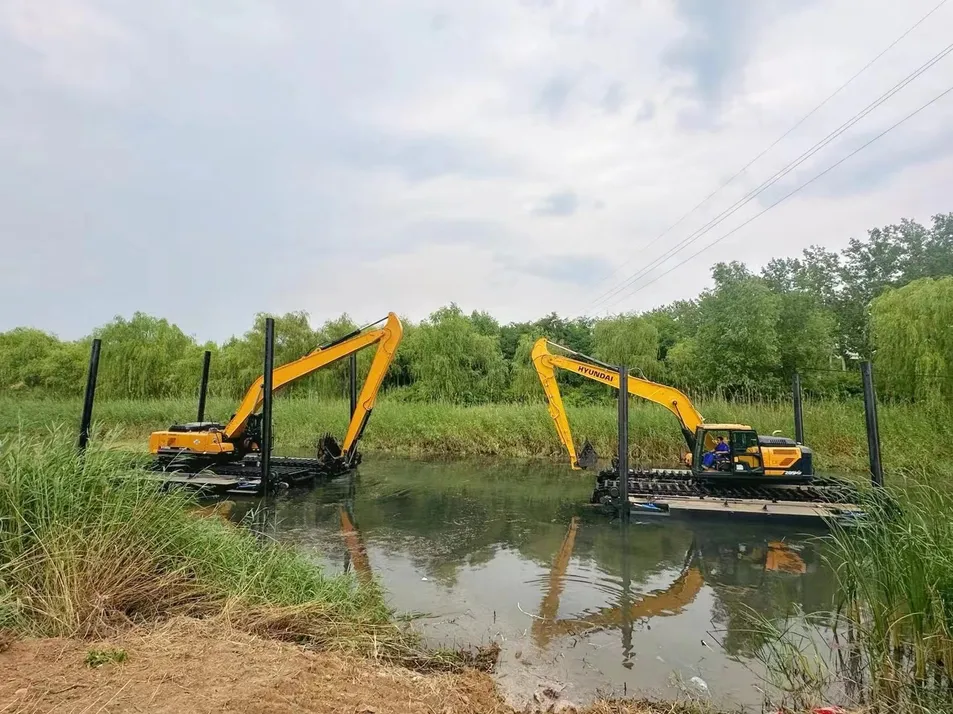

This machine is ideal for a wide range of specialized engineering tasks:
| Model | 35 |
| Dimensions | 7.5x2.25x3.2m |
| Travel Speed | 2-4 km/h |
| Ground Clearance | 0.7m |
| Bucket Capacity | 0.1m³ |
| Rated Power | 37kw / 2400rpm |
| Bucket Digging Force | 30KN |
| Max Digging Depth | 3m |
| Pontoon Floats | 4.5x0.8x1m (2 pcs) |
| Hydraulic Motor | Eddie STM02 |

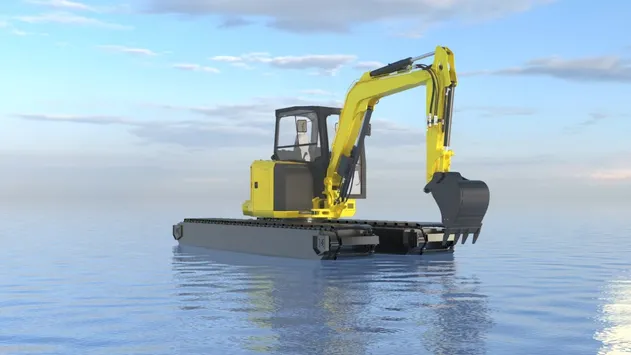

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team provides tailored designs to meet specific project requirements.
Warranty: 12 months or 2,000 operating hours. Optional extended warranty up to 36 months.
Training: On-site or remote operation and maintenance training provided.
We are a leading developer and manufacturer of specialized water-based machinery, including dredgers, cleaning boats, sand pumping equipment, and amphibious series. With more than 100 products in our portfolio, we specialize in designing and processing equipment according to specific geographical environments and customer requirements.
Our products are exported globally to regions including North America, Southeast Asia, Africa, and Europe, backed by rich engineering experience and a commitment to quality and reputation.
