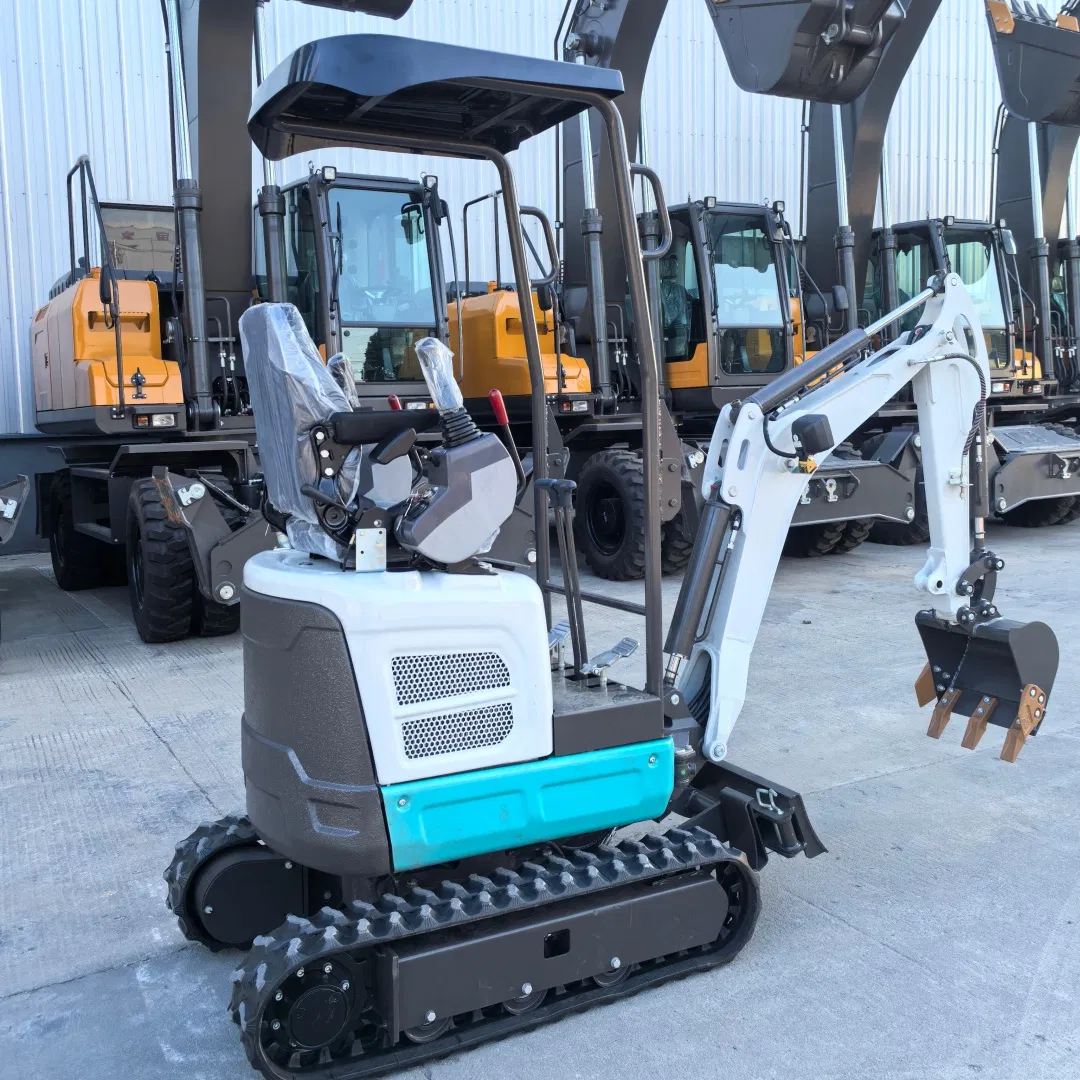

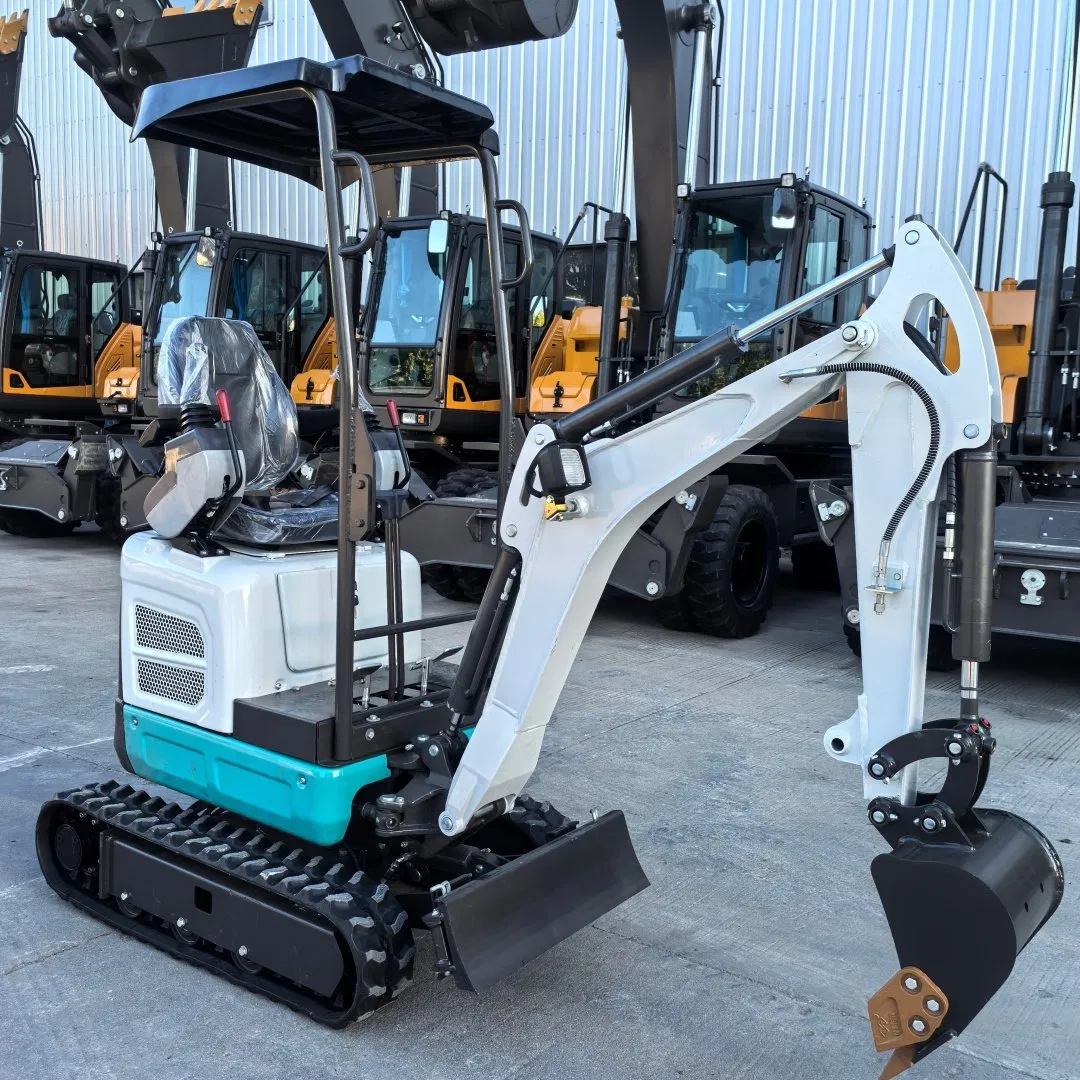

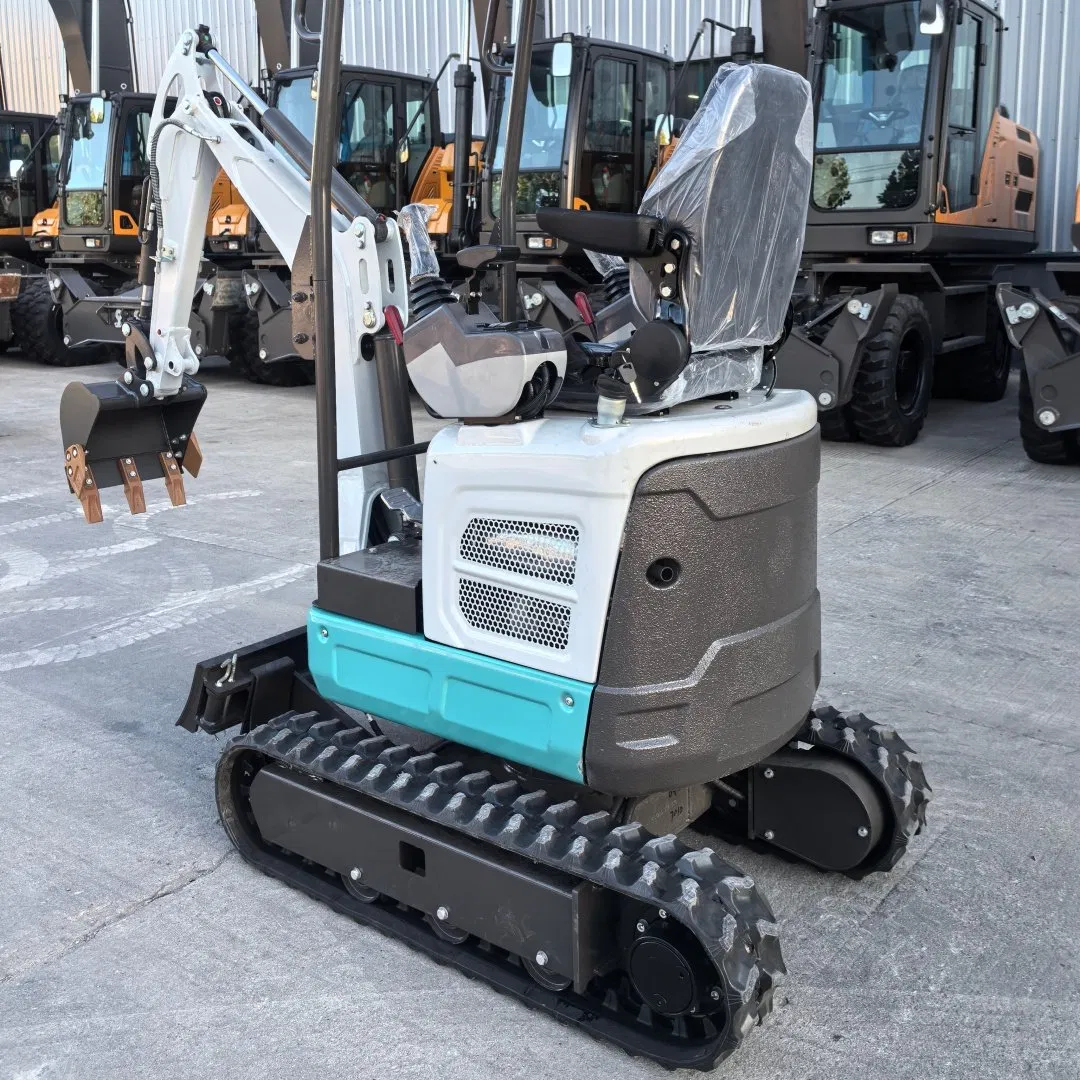

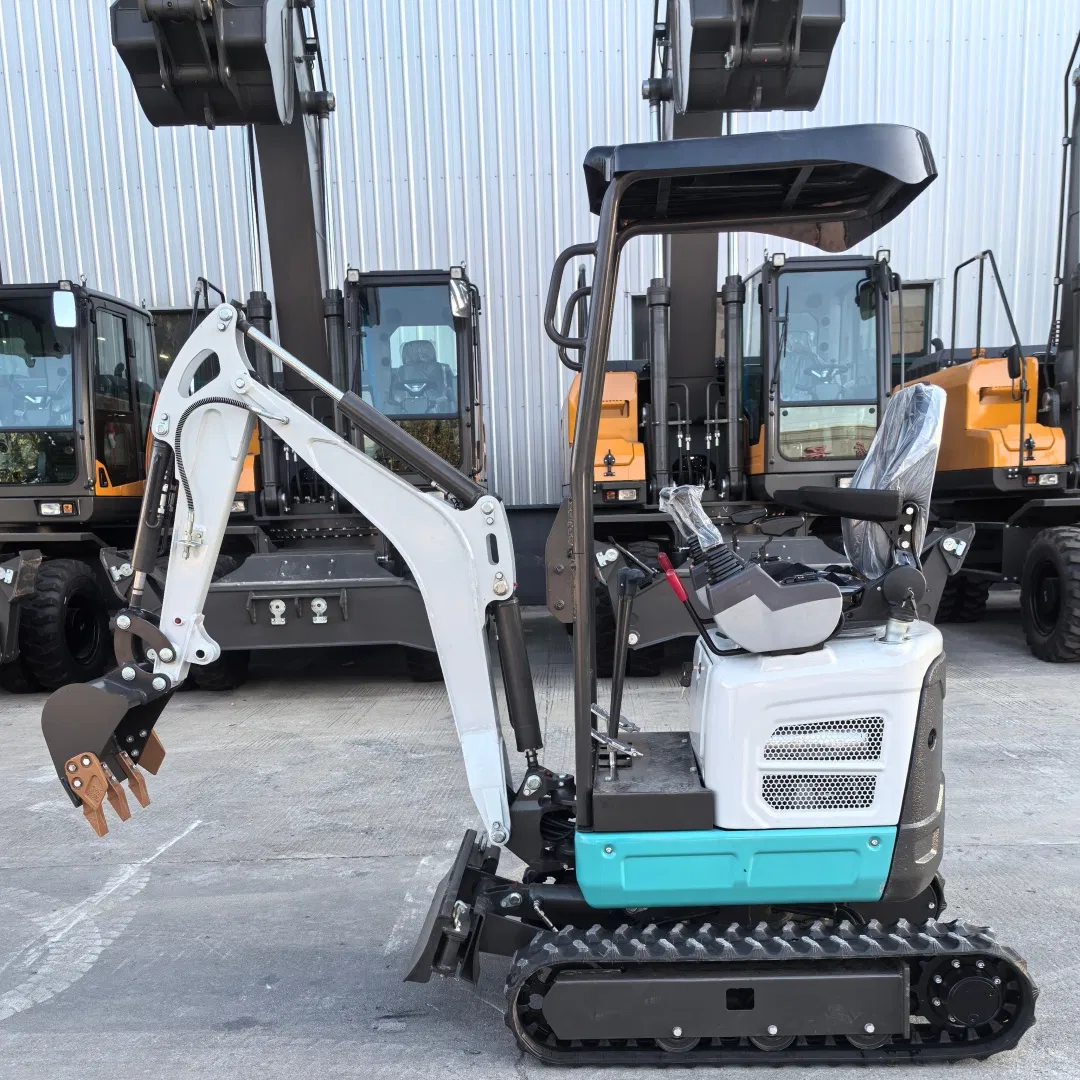

Jh8012 1.2 Ton Construction Equipment Long Reach Mini Construction Hydraulic Crawler Excavator

Customization: Available
After-sales Service: Parts, Consultation, on-Site Service
Warranty: 1year

Product Description

📋

Basic Specifications

Model NO.
Jh8012
Type
Crawler Excavator
Usage
Special/Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic
Drive Type
Internal Combustion
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1 Unit
Feature
High Efficiency
Capacity
5000 Units/Year
🏗️

Product Performance

Crawler Excavator Overview
  • Kubota diesel engine ensures high performance and reliability.
  • Adjustable driving speeds (high-low speed mode).
  • Compact zero-tail design, ideal for narrow spaces and flexible operations.
  • Telescopic Track allows for adjustment of track width to suit terrain.
  • Equipped with hydraulic hammer pipeline system for various attachments.
  • Optimized working arm, bucket, and arm design for enhanced durability.
  • Load-sensitive system matches engine and pump for fuel efficiency.
  • Reinforced undercarriage welded by high-precision robots.
  • Hydraulic components from internationally renowned brands.
Excavator Detail View 1

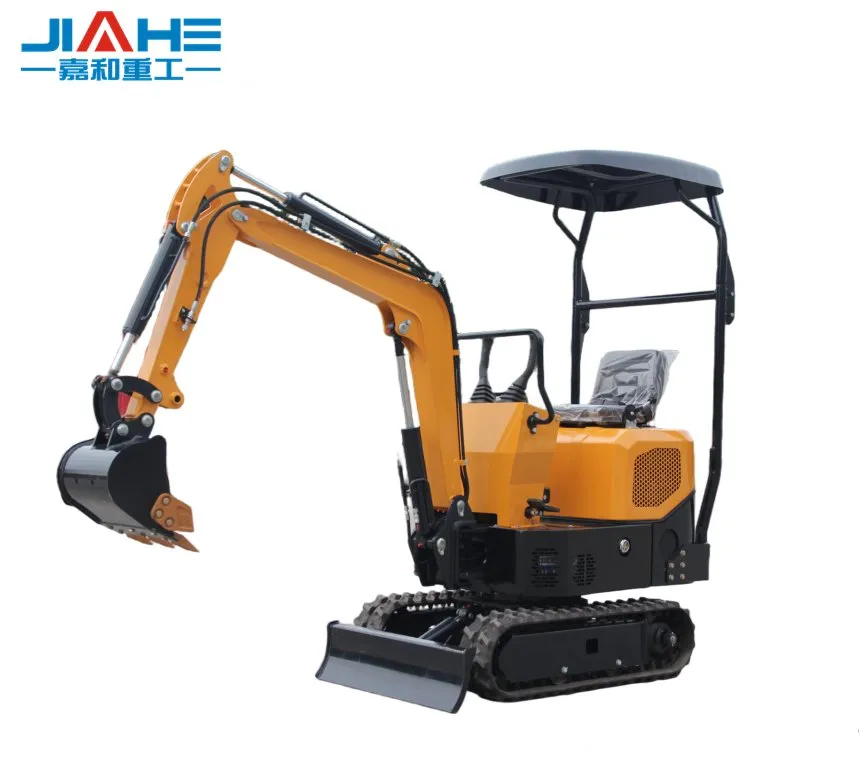

Excavator Detail View 2
⚙️

Technical Specifications

Operational Data
Bucket Capacity0.025m³
Swing Speed0 - 12r/min
Gradability35°
Max. Bucket Digging Force9kN
Max. Arm Digging Force5.5kN
Engine ModelD722 - E4S
Power/Rotation Speed10.2/2500 kW/r/min
Operating Weight1200kg
System Pressure17MPa
Machine Dimensions
Overall Dimension (L*W*H)3032×760×2670mm
Cabin Height2270mm
Track Length1345mm
Track Width180mm
Wheel/Track Distance580/760mm
Min. Ground Clearance125mm
Tail Swing Radius550mm
  • Max. Vertical Digging Depth
  • Working Range
    Max. Digging Height3107mm
    Max. Dumping Height2172mm
    Max. Digging Depth1838mm
    1709mm
    Max. Digging Reach3442mm
    Min. Swing Radius1398mm
    Work Range Diagram
    🏭

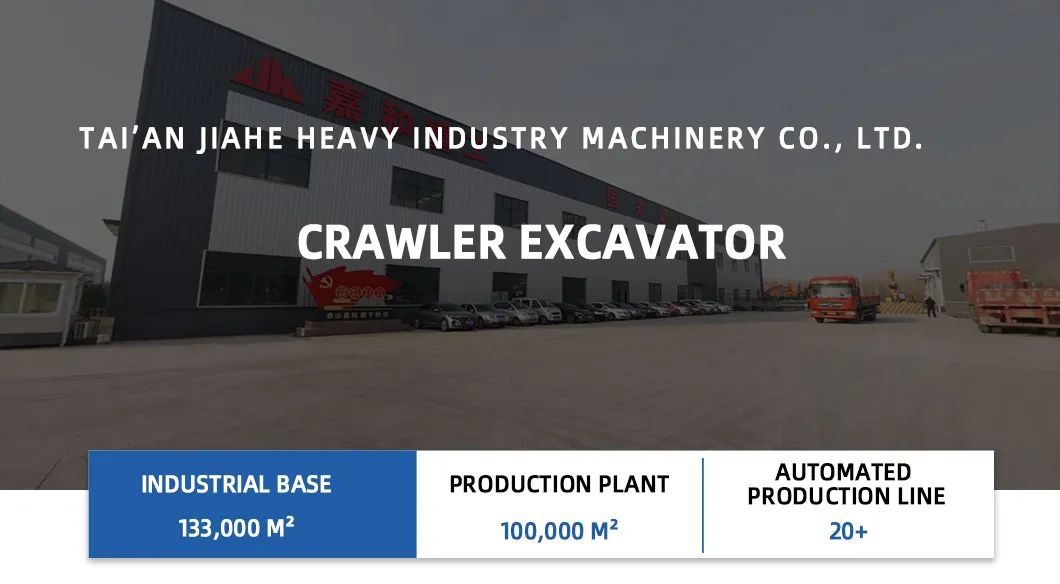

    Manufacturing Excellence

    Our manufacturing base operates on a 133,000 m² industrial area, including a 100,000 m² modern manufacturing facility supported by 20+ automated production lines. Equipped with over 300 advanced production and testing machines, including CNC machining centers and industrial robots, we achieve an annual output of over 5,000 units.

    We provide comprehensive solutions for landscaping, agriculture, construction, municipal engineering, and mining. Our equipment is certified to ISO 9001, ISO 14001, ISO 45001, and CE standards, currently serving markets in over 50 countries across Europe, North America, and Asia.

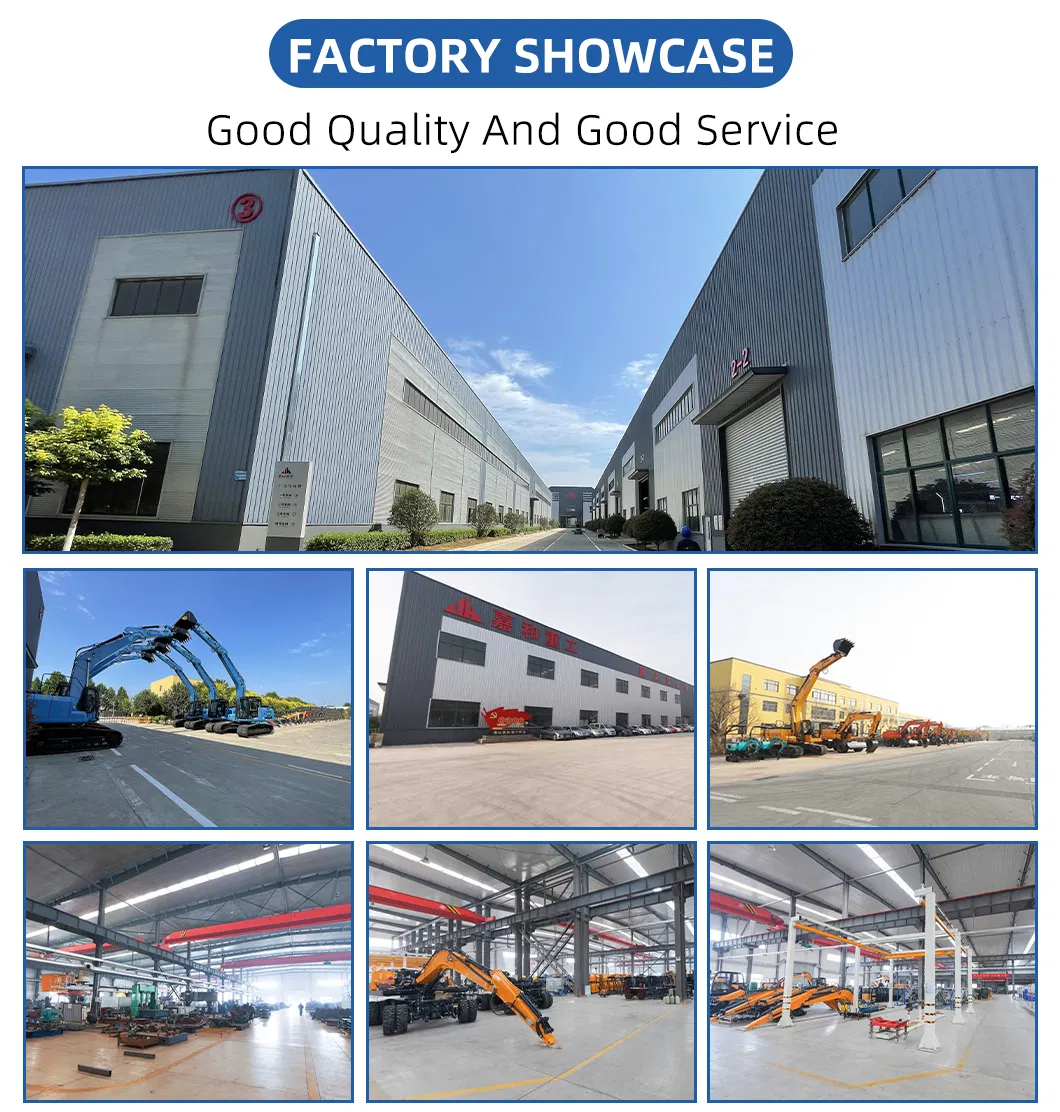

    Manufacturing Facility
    📦

    Packaging & Shipping

    Loading 1
    Loading 2
    Loading 3
    📜

    Quality Certifications

    Quality Certificates

    Frequently Asked Questions

    Q: What is the lead time for standard orders?
    A: Standard models typically ship within 15–30 days. For customized units, please allow 30–45 days.
    Q: Can the bucket size or attachments be customized?
    A: Yes, we offer tailored attachments and bucket configurations based on your specific job site requirements.
    Q: What documentation is provided for international shipping?
    A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, COC, and any required CE certifications.
    Q: How do I initiate a purchase or request a quote?
    A: You can send us an inquiry through our official channels. We will provide a formal quotation, which you can confirm with a Purchase Order (PO).
    Q: What is the standard warranty period for your excavators?
    A: Our machines typically come with a 12-month or 2000-working-hour warranty (whichever comes first) covering major components.
    Q: Are spare parts easily available for maintenance?
    A: Yes, we use many internationally recognized components, and we maintain a stock of common wear parts for rapid global dispatch.
