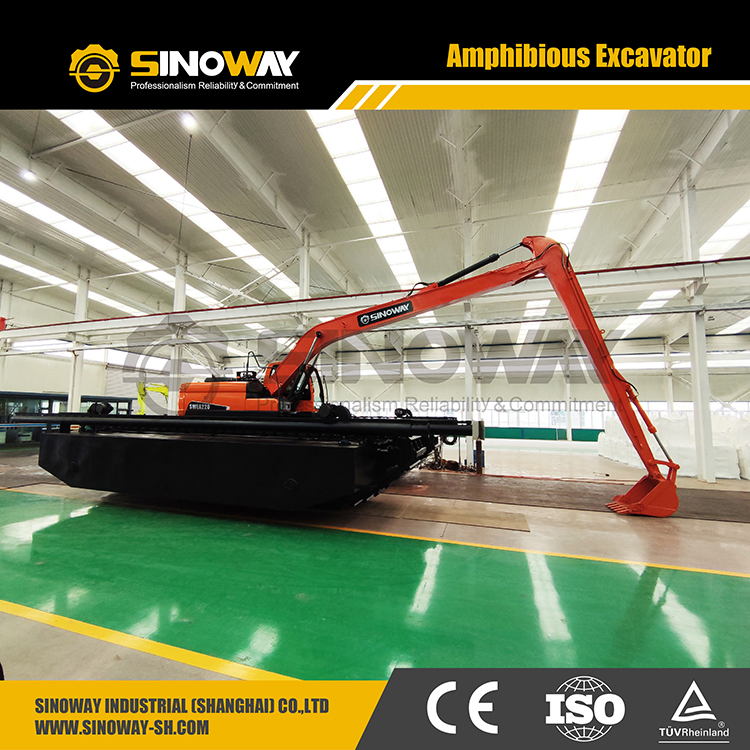

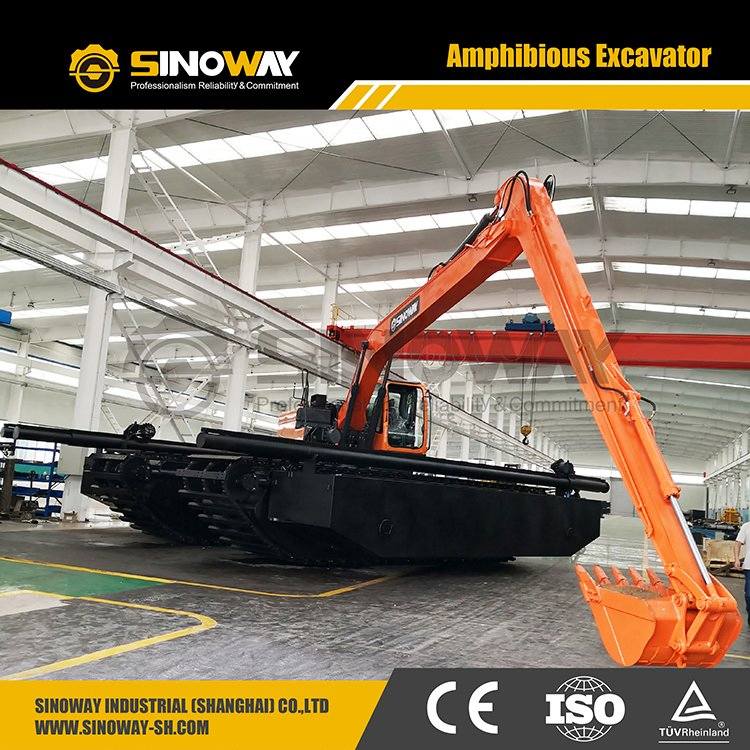

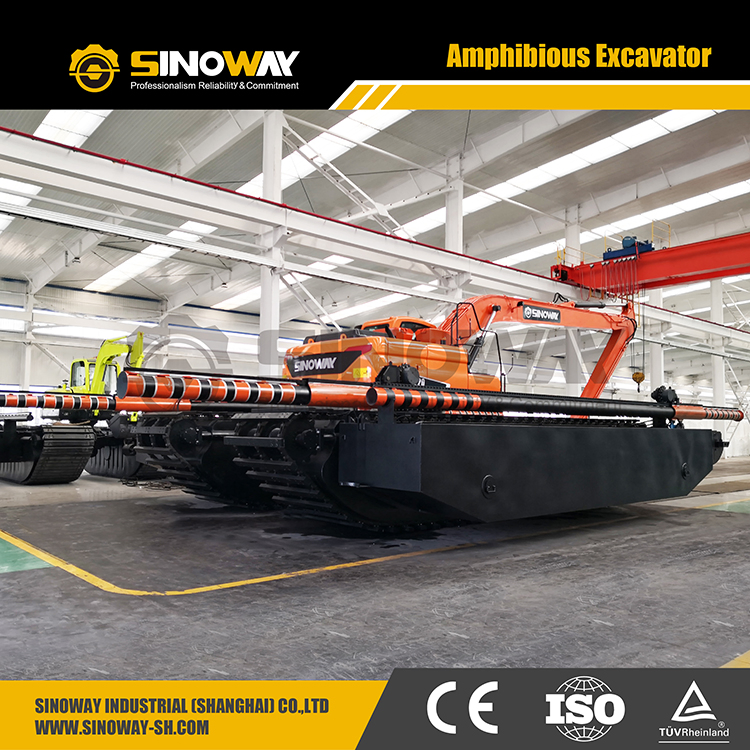

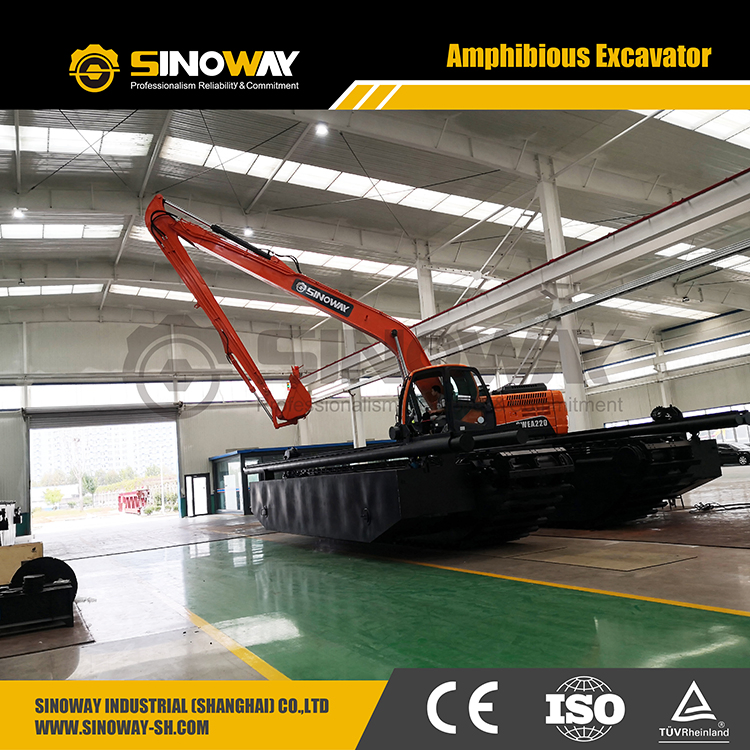

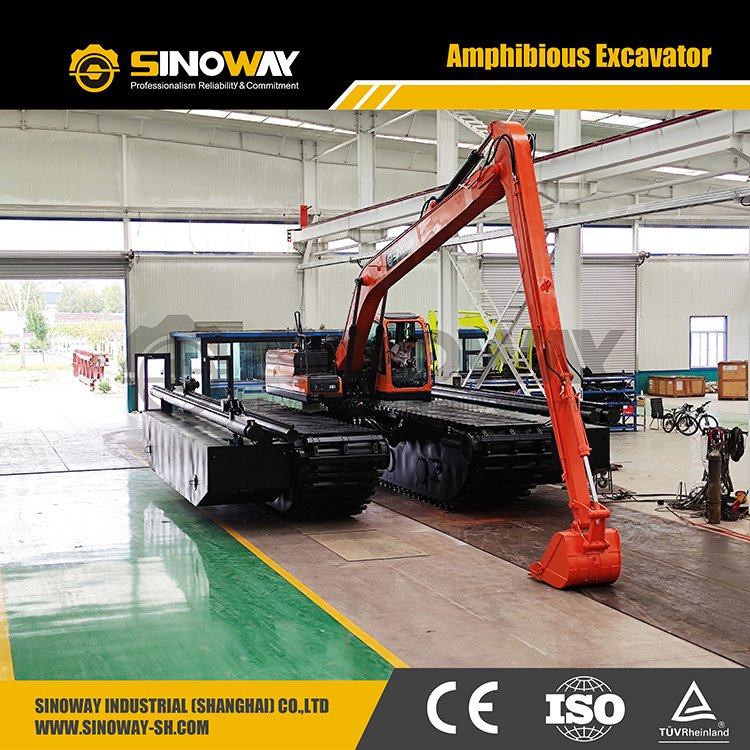

Mini Amphibious Equipment Small Long Reach Floating Pontoon Excavator for Deep Water Derdging

Customization: Available
After-sales Service: Available
Warranty: One Year

Product Description

📋

Basic Specifications

Model NO.
SWEA220
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Certification
ISO9001: 2000, ISO14001
Engine
Doosan/Cummins
Operating Weight
41.5 Ton
Package Size
1450.00cm * 610.00cm * 395.00cm
Package Weight
40000.000kg
🏗️

Product Description

Amphibious Swamp Excavator

Our amphibious equipment is specially designed for river earth moving, waterway deepening, dredging applications, offshore and mining exploration, swamp and delta works. With 20 years' experience, we have become a front-runner in amphibious equipment fields. Our unique hydraulic undercarriage, fitted with square hollow steel shoes and floating seal rollers, gives our equipment exceptional mobility on waterway, wetland and soft terrain.

This amphibious excavator is suitable for marsh earthmoving work. It is equipped with multiple watertight partitions in the bottom frame. The ground pressure is better than the performance and hydraulic operation of ordinary hydraulic presses on loose tracks, and the belt transmission capacity is stronger than that of ordinary hydraulic presses. With alloy steel material and workmanship, each model of swamp excavator is a trusted piece of equipment that built to last.

Amphibious Equipment
📷

Product Show

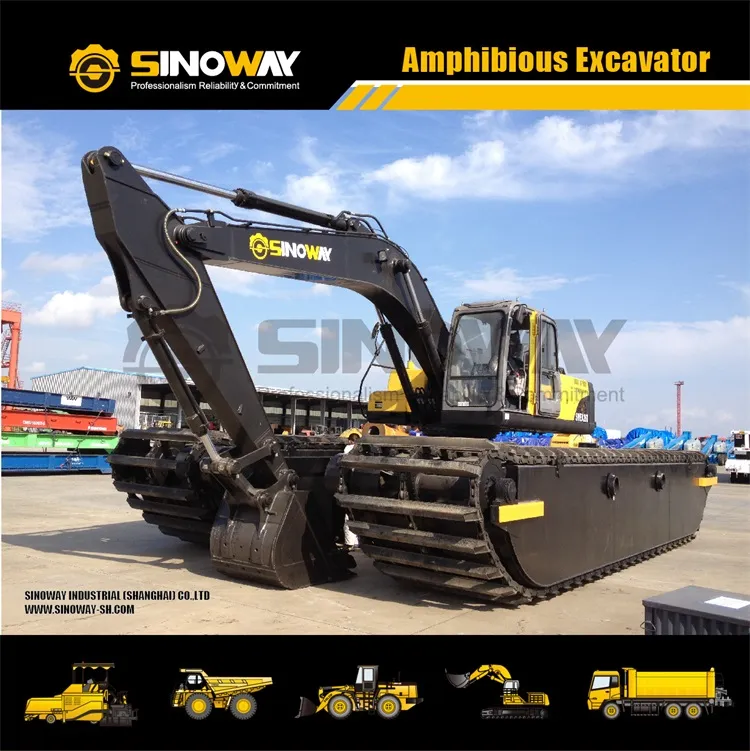

Excavator Show 1

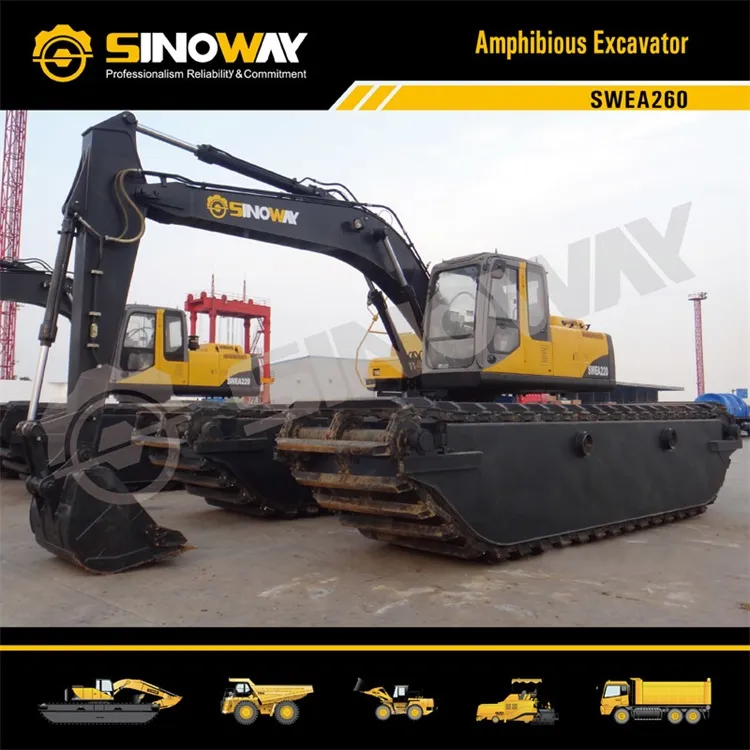

Excavator Show 2
Excavator Show 3

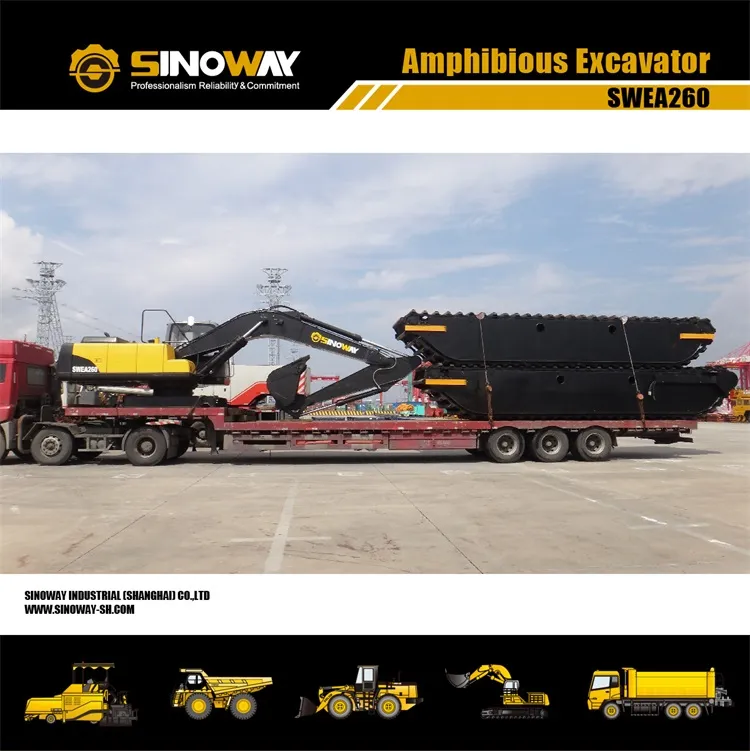

Excavator Show 4
🔍

Machine Introduction

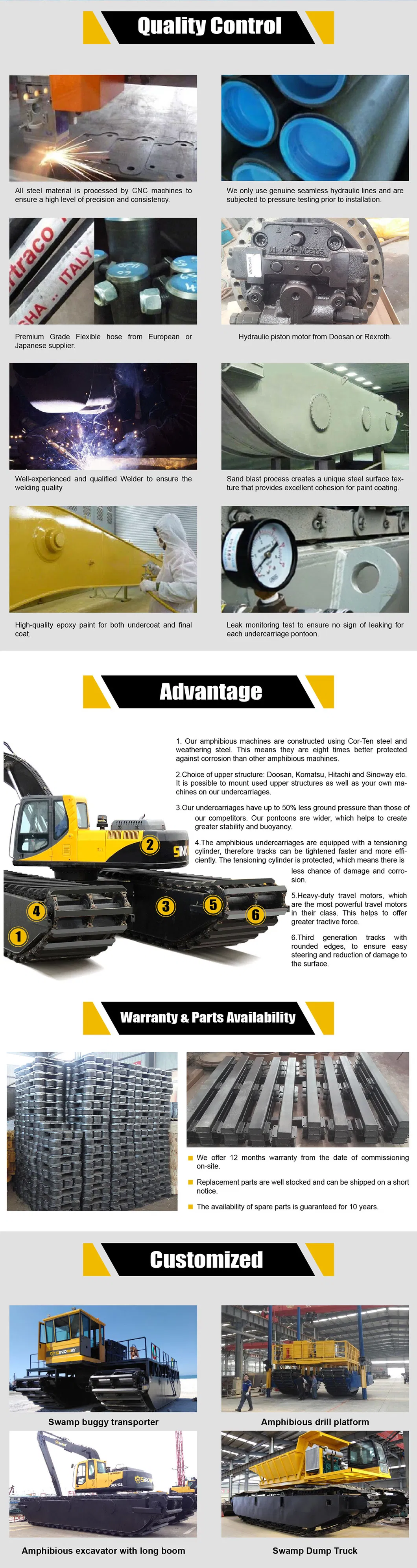

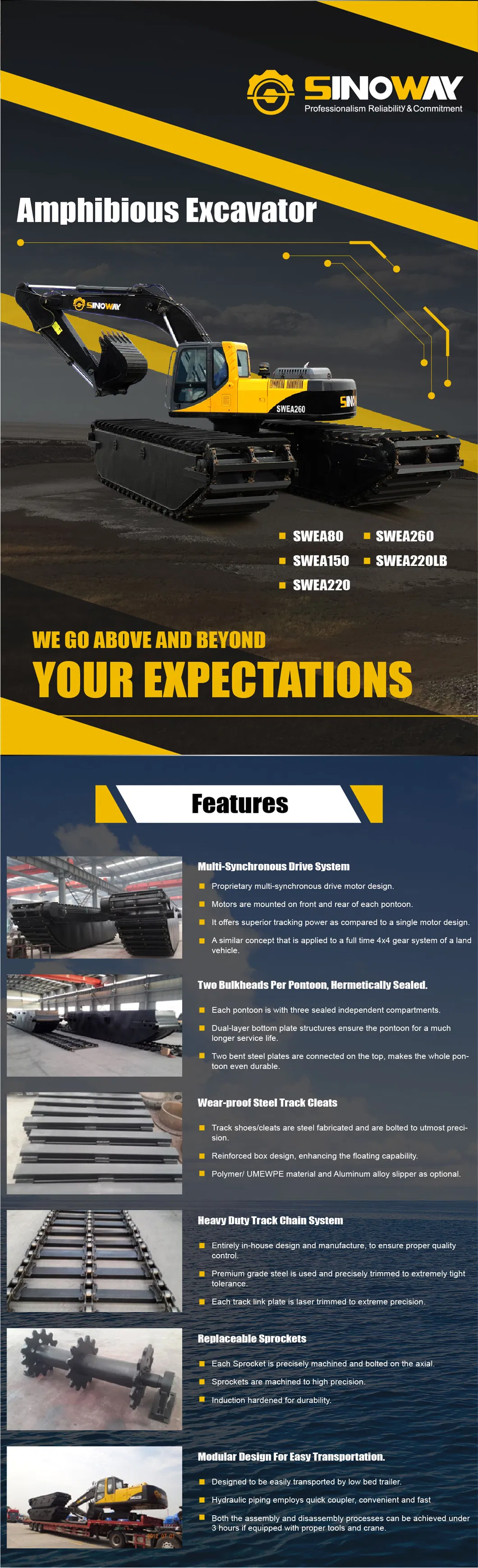

Machine Details 1 Machine Details 2
📊

Technical Specifications

ENGINE SYSTEM
ModelCummins/Isuzu
TypeSix-cylinder, water-cooled turbocharged
Rated Power106~125KW / 2100rpm
TECHNICAL DATA
Operating Weight30000~42000Kg
Standard Bucket Capacity0.5~1.1m³
Stick Digging Force110KN
Bucket Digging Force150KN
HYDRAULIC SYSTEM
Main Pump/Valve/MotorKAWASAKI
Hydraulic Pressure32MPa
DIMENSIONS
Overall Length/Width/Height11200mm / 5350mm / 3900mm
Ground Clearance1192mm
Max. Digging Depth6940mm
Max. Reach10290mm

Why Choose Our Equipment

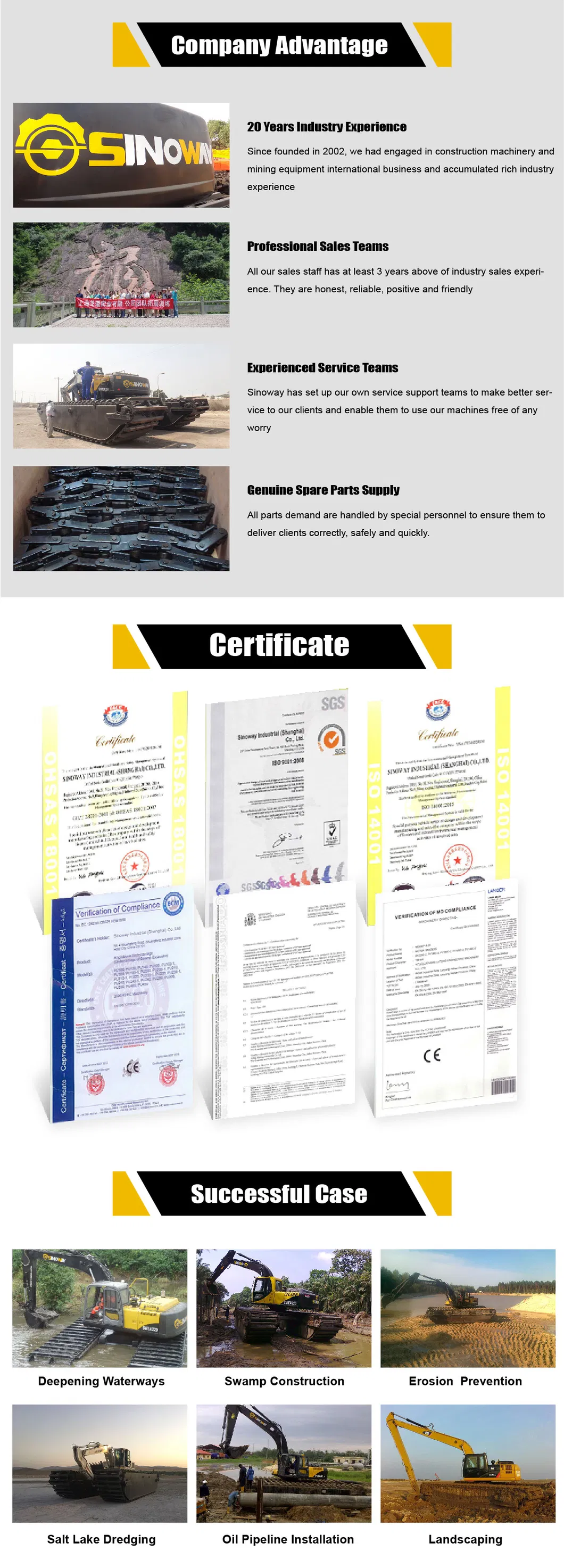

Advantages Quality Control

Frequently Asked Questions

1. What are the primary applications for an amphibious excavator?
They are ideal for river dredging, wetland restoration, waterway deepening, swamp earthmoving, and delta works where standard excavators cannot operate.
2. How does the ground pressure of this machine compare to standard excavators?
The ground pressure is extremely low (approx. 0.0135MPa) due to the large tracked pontoon structure, allowing it to float and move on soft terrain.
3. What engine options are available for the SWEA220?
The equipment is typically powered by high-performance Cummins or Isuzu engines, providing rated power between 106KW and 125KW.
4. Is the undercarriage durable for saltwater environments?
Yes, the pontoon structure is built with alloy steel and features multiple watertight partitions and floating seal rollers to ensure long-term durability in harsh conditions.
5. Can optional attachments be added to the excavator?
Yes, we offer various options including side pontoons, hydraulic spud piles for stability in deep water, and long-reach boom configurations.
6. What is the maximum digging depth of the SWEA220?
Under standard configurations, the maximum digging depth is 6940mm, with a maximum reach of over 10 meters.
