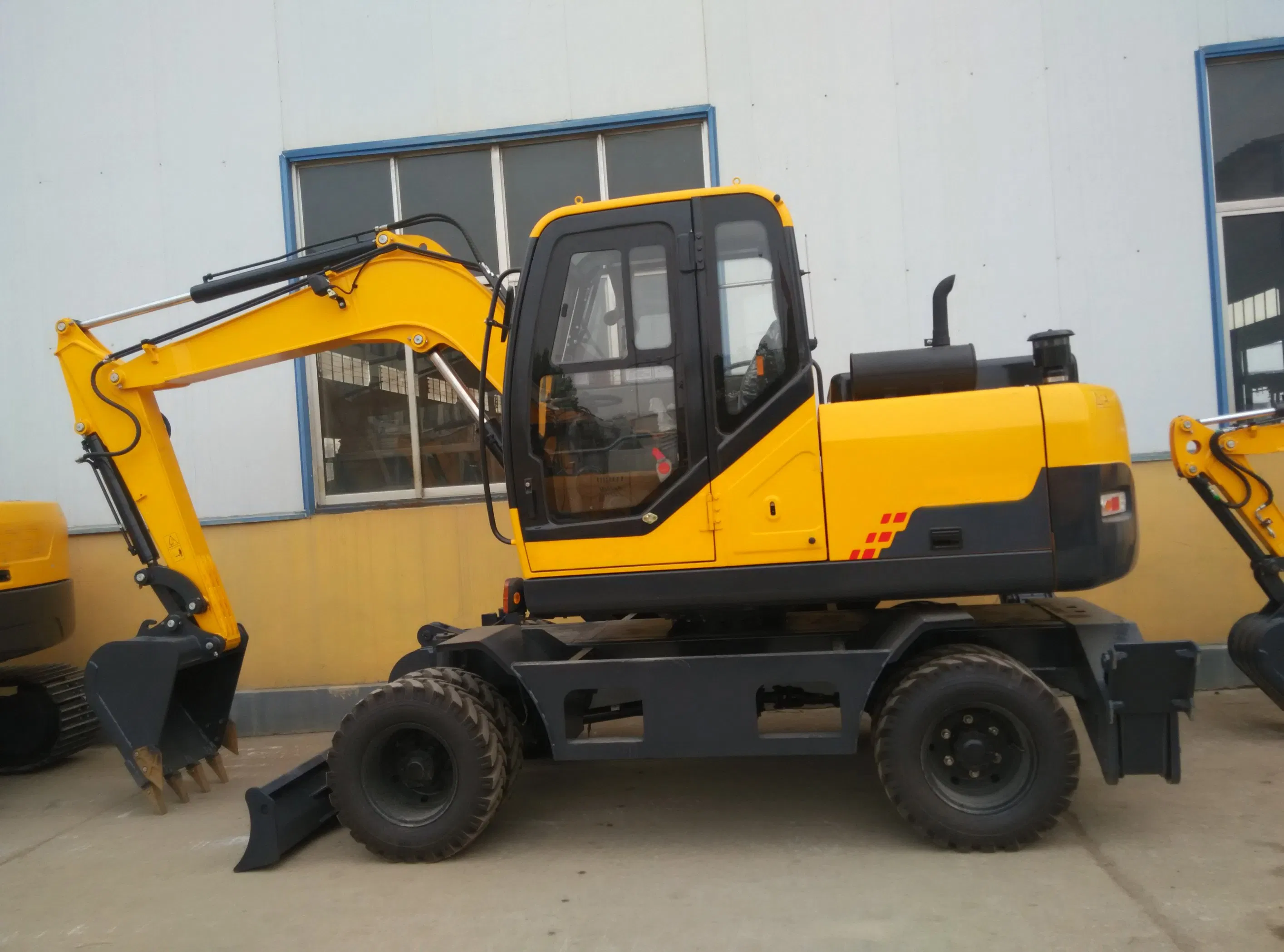

Wheel Digger Mini Excavators Backhoe Wheeled Excavator

Customization: Available
After-sales Service: 1year
Warranty: 1year

Product Description

Basic Specifications

Model NO.
WE-70
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.21m3
Certification
CE, ISO9001: 2000
Engine Power
48kw(65HP)@2300rpm
Machine Weight
7000kg
Overall Dimension
5930mm*2205mm*2850mm
Fuel Tank
118L

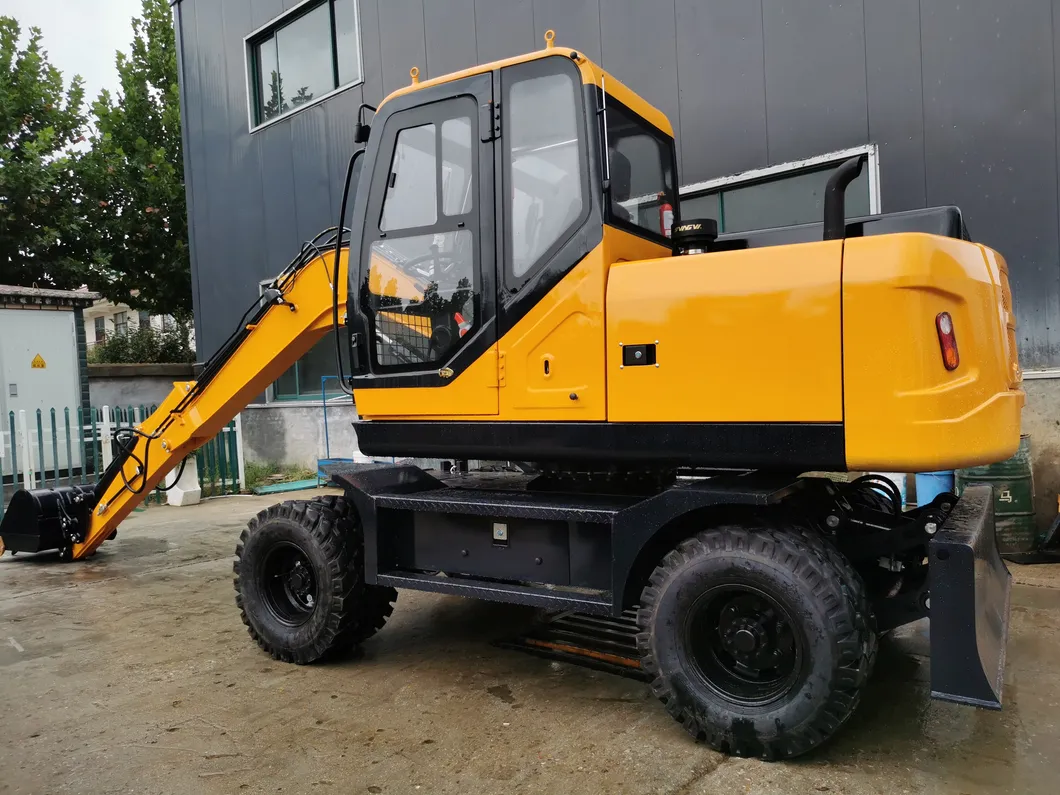

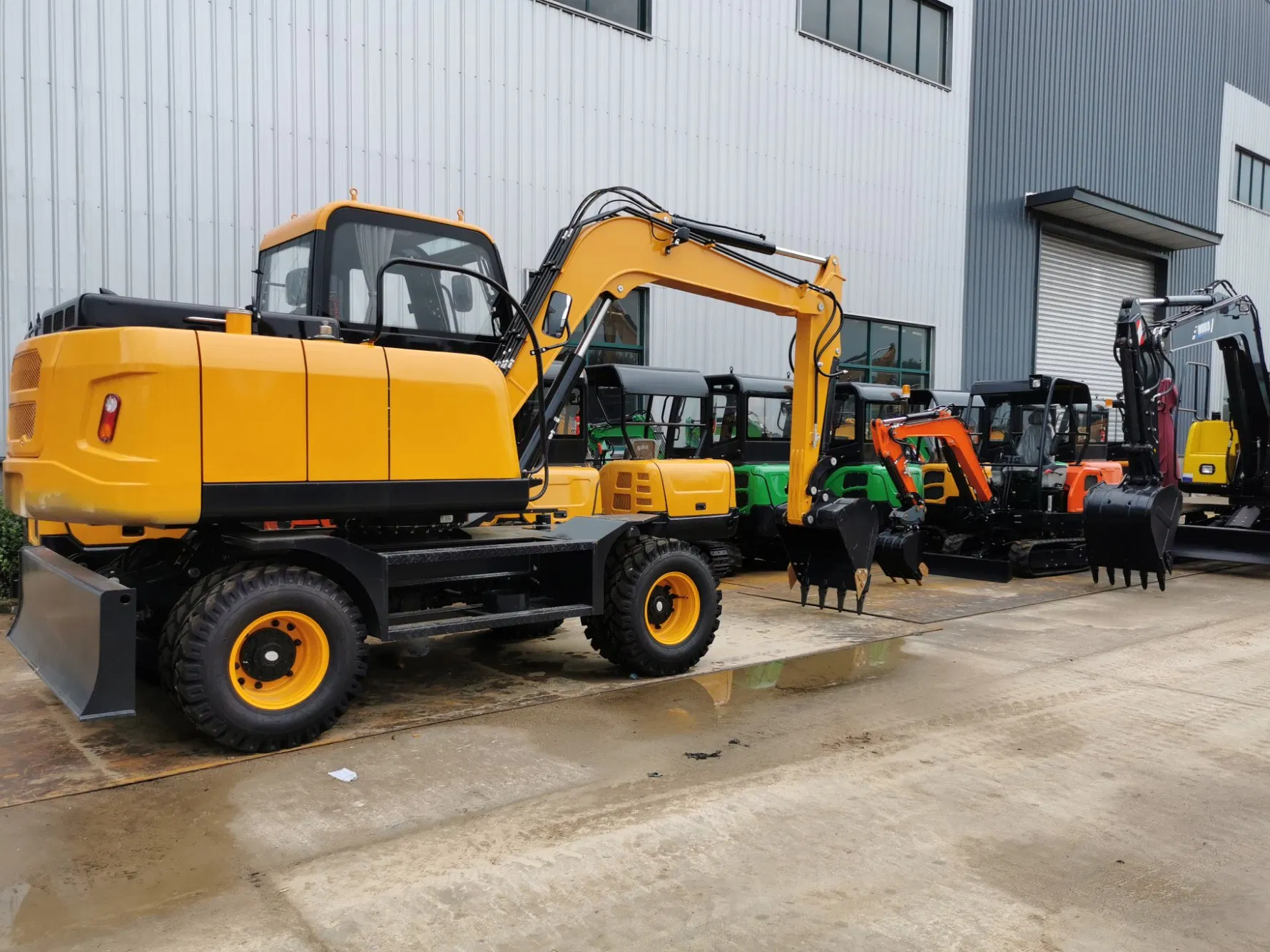

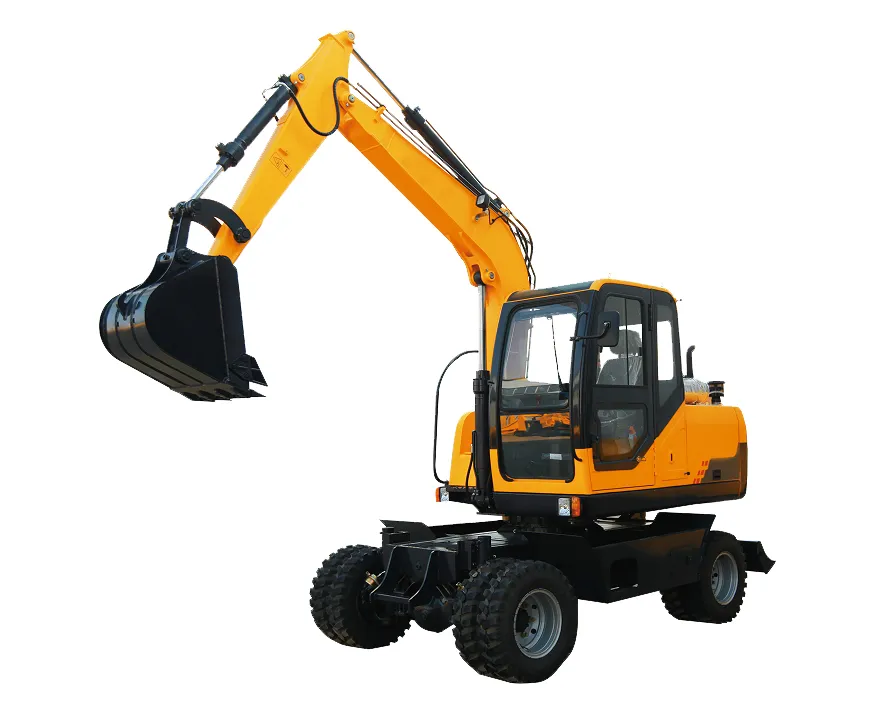

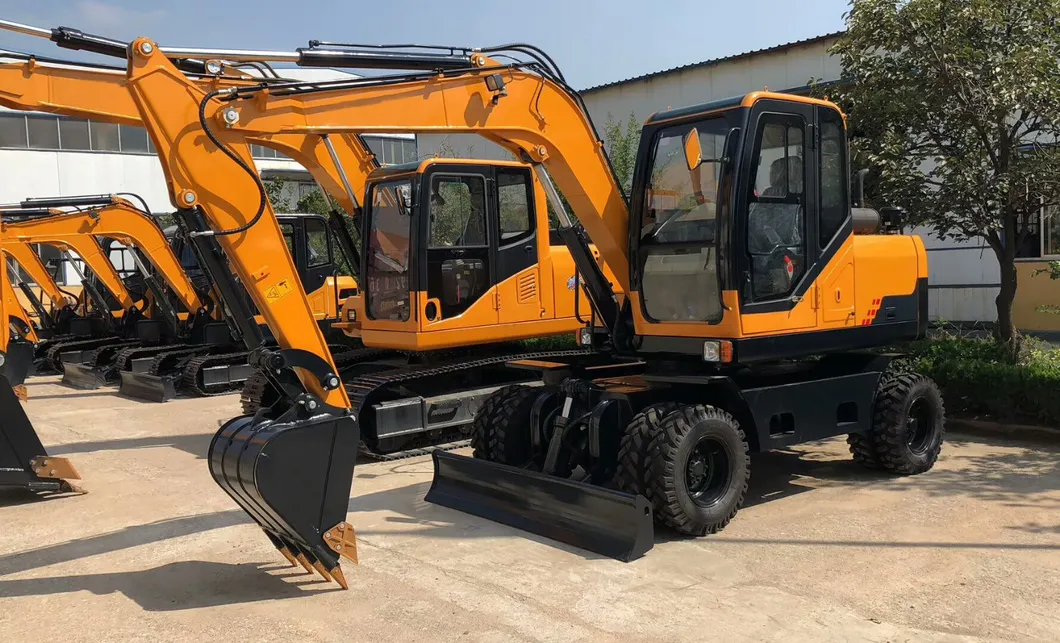

Product Gallery

Technical Comparison

Model Parameter E70W (7 Ton) E135W (13.5 Ton)
ENGINE SYSTEM
Emission StandardTier 3/ Stage IIITier 3/ Stage III
Make / ModelXINCHAI/4D32ZG31YUCHAI/YC4D115Z
Power / Rotation Speed48kw(65HP)@2300rpm85kw(115HP)@2200rpm
DRIVING & PERFORMANCE
Maximum Travel Speed20/30km/h19/32km/h
Driving TypeMechanical driveHydraulic controlling
Standard Bucket Capacity0.21m³0.6m³
Maximum Digging Force45KN91KN
Machine Weight7000kg13800kg
WORKING RANGE
Max. Digging Height5865mm8930mm
Max. Digging Depth3290mm4750mm
Max. Digging Radius5820mm8000mm

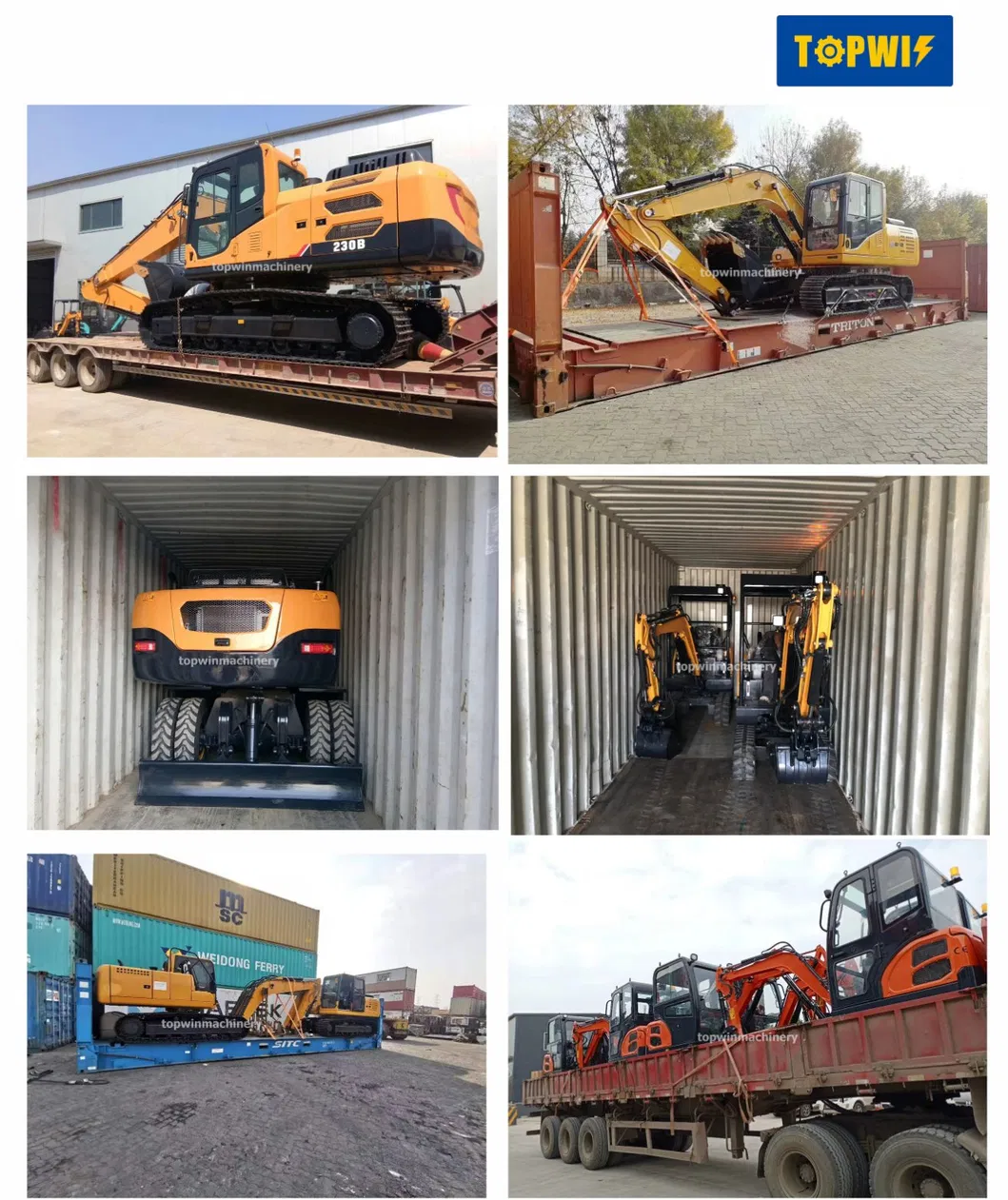

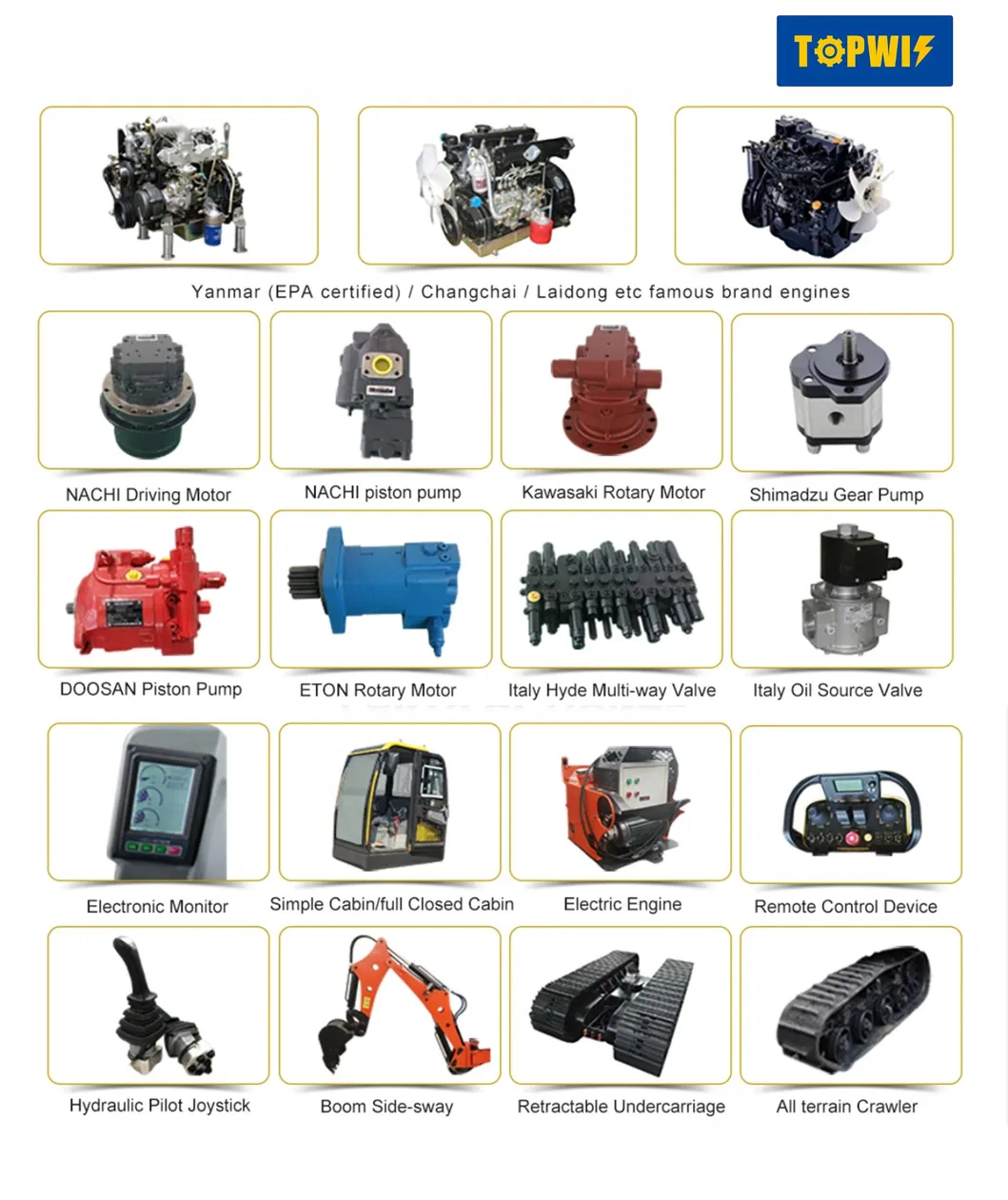

Configuration & Packaging

Standard Shipping: 1 unit in 40HC container

Solution Provider

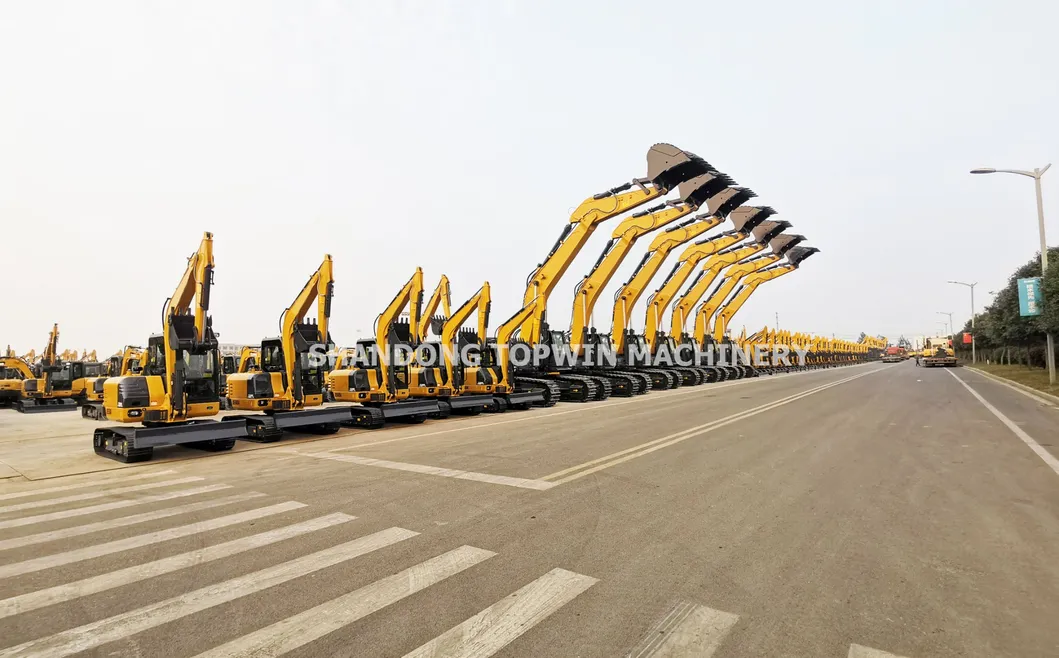

Factory View

We are a one-stop solution provider for construction machinery, mining machinery, agricultural machinery, and logistic machinery. With more than 10 years of experience in this field, we have served various clients globally, including regions like North America, South America, Australia, Southeast Asia, and Africa.

We help our clients succeed in every project by offering high cost-effective and reliable machines. Our equipment has earned a great reputation in road construction, mining operations, and farming.

We value high-quality products and immediate response to clients' demands. We offer full guidance for service and maintenance to ensure machines run normally with maximum productivity. Our team provides full support from day one to maintain long-term operational efficiency.

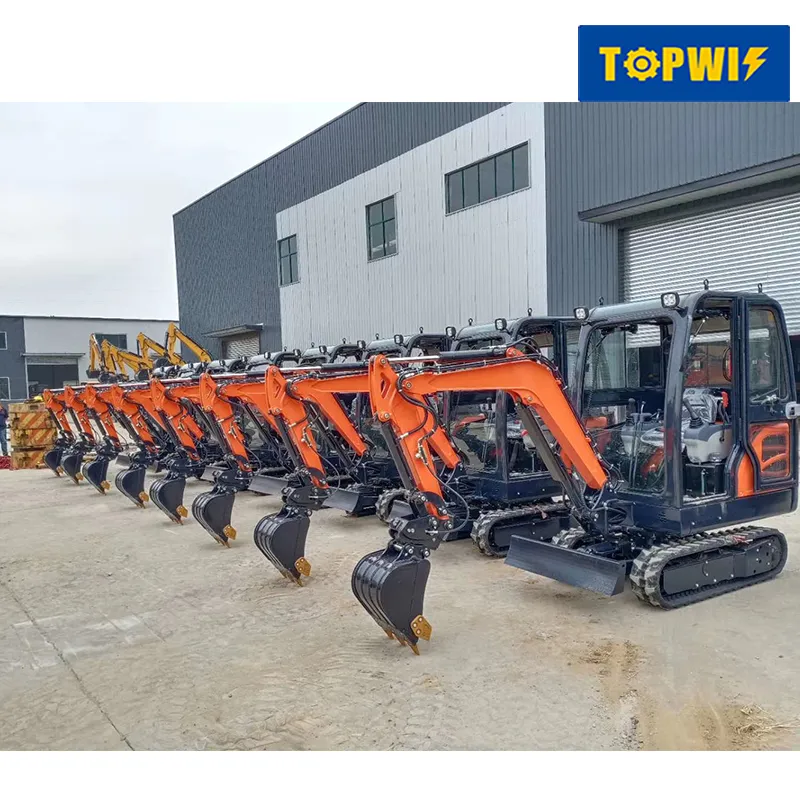

Machine Reliability

Frequently Asked Questions

What is the bucket capacity of the WE-70 excavator?
The standard bucket capacity for the WE-70 model is 0.21m³, suitable for small-scale excavation and general utility work.
What type of engine powers the 7-ton wheeled excavator?
It is powered by a high-efficiency XINCHAI/4D32ZG31 engine, providing 48kw (65HP) at 2300rpm, meeting Tier 3 emission standards.
What are the shipping options for these excavators?
For the 7-ton model (E70W), we typically ship 1 unit in a 40HC container. For larger models like the 13.5-ton (E135W), RORO (Roll-on/Roll-off) shipping is commonly used.
Does the machine come with any certifications?
Yes, our excavators are fully certified with CE and ISO9001:2000 standards, ensuring high quality and safety for international markets.
What is the maximum digging depth of the E135W model?
The E135W model features a maximum digging depth of 4750mm and a maximum digging radius of 8000mm.
Is technical support available after purchase?
Absolutely. We provide full guidance on service and maintenance to ensure your machines operate at maximum productivity throughout their lifespan.
